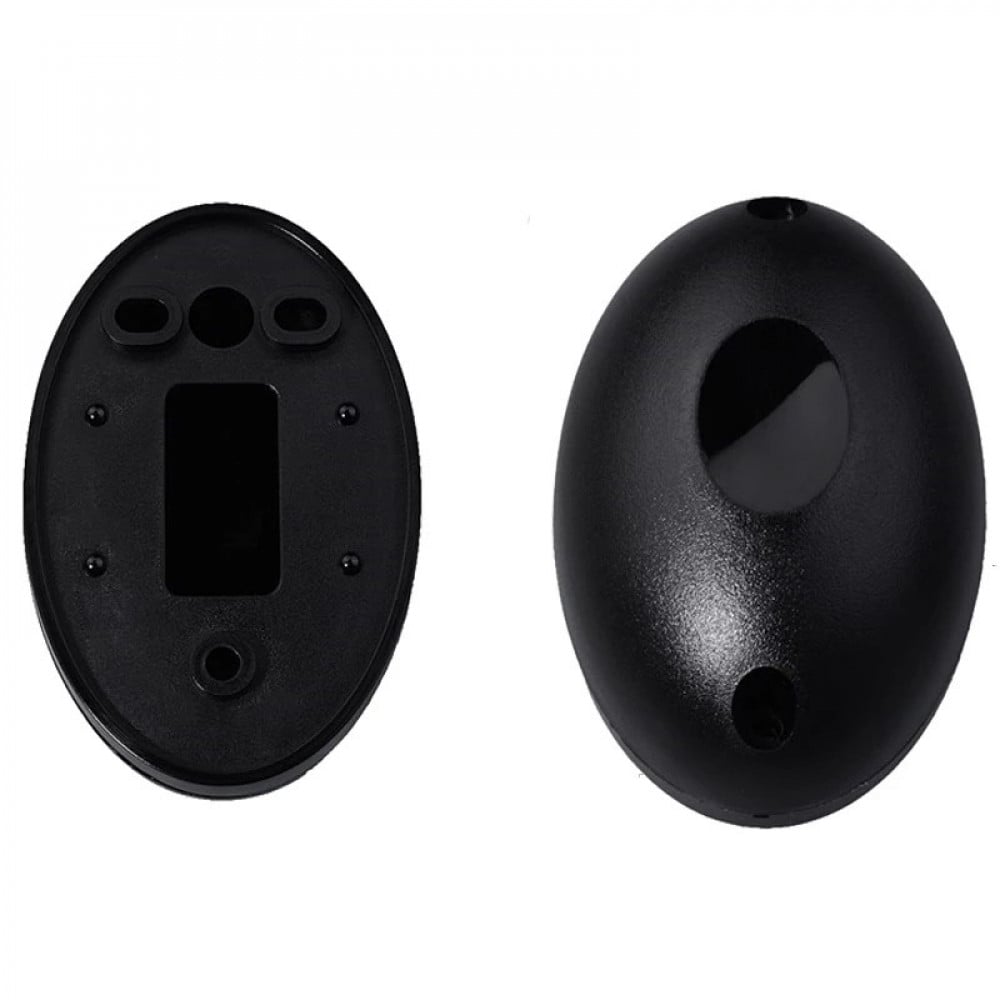

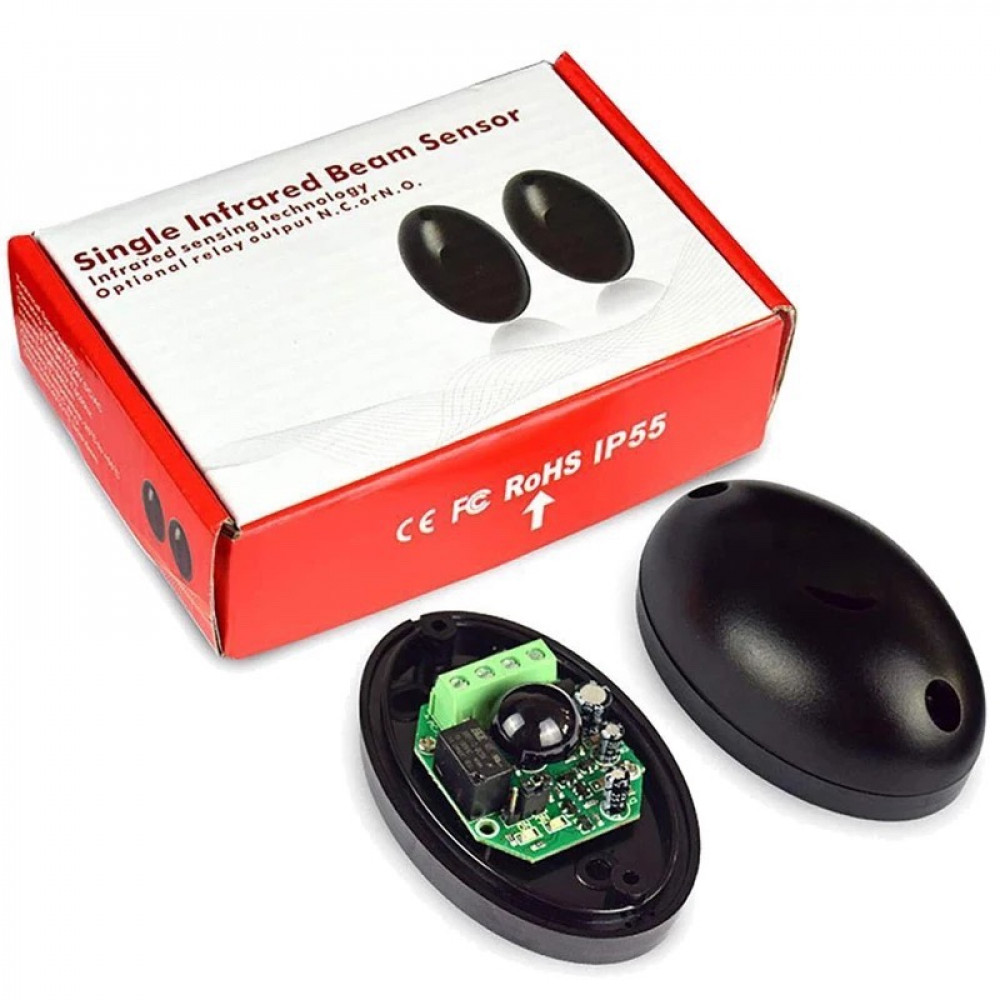

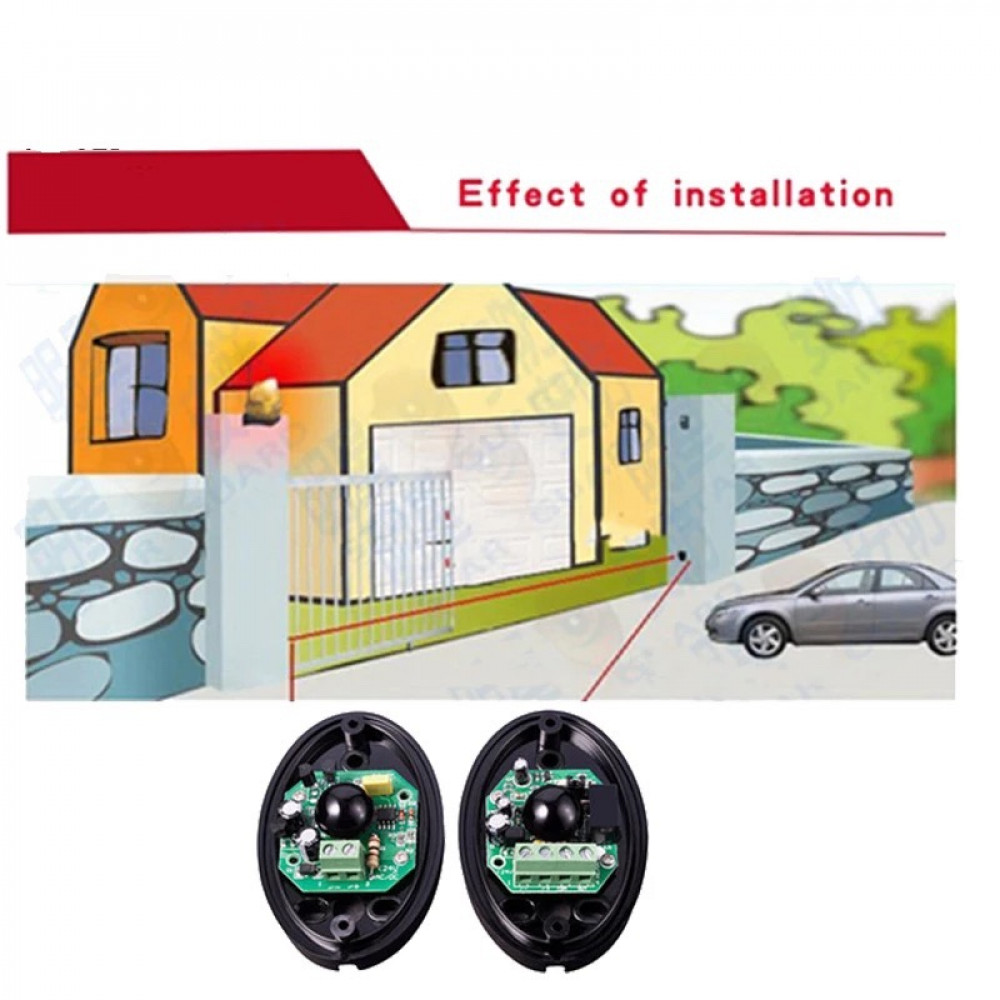

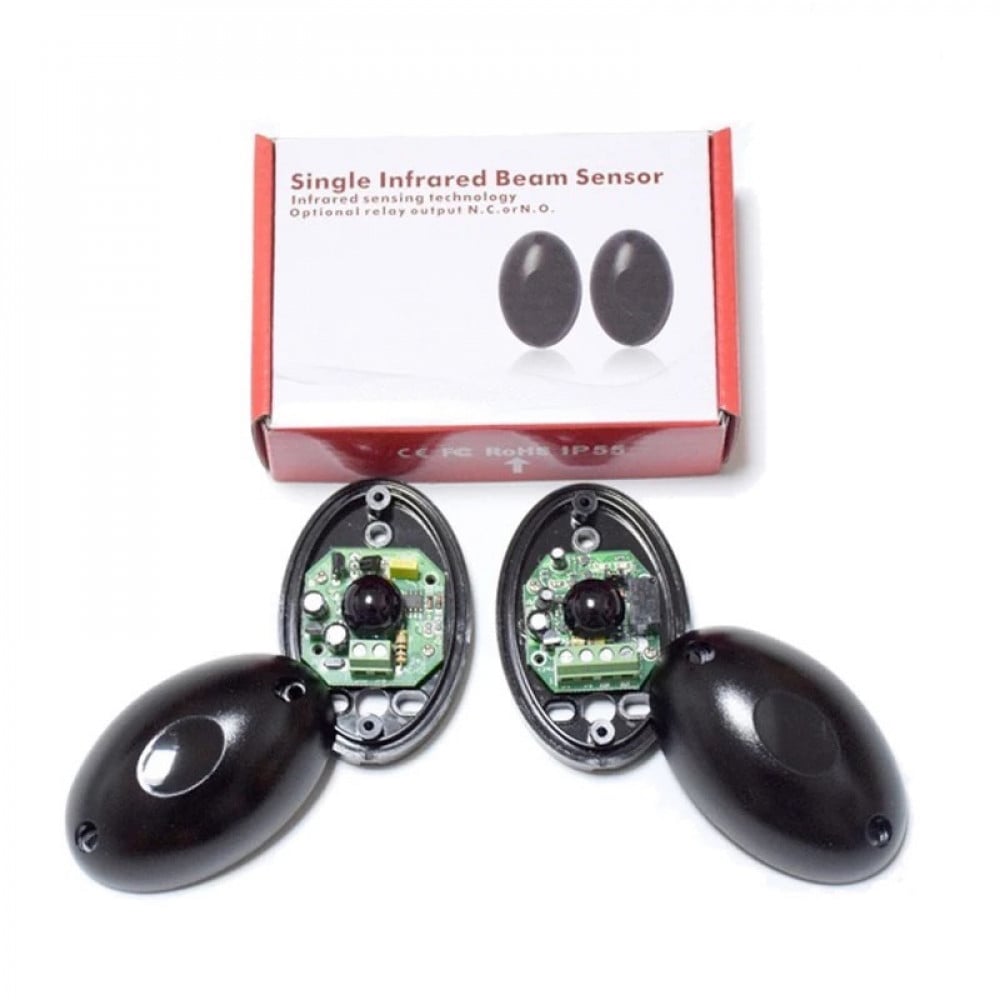

Wireless Infrared Motion Sensor and Detector Accessory used for protection and remote control of automatic doors, garages and gates
Wireless infrared motion sensor and detector, an accessory that is added to surgical and gate controls to be used to protect people and animals from harm while closing automatic doors, gates and garages.

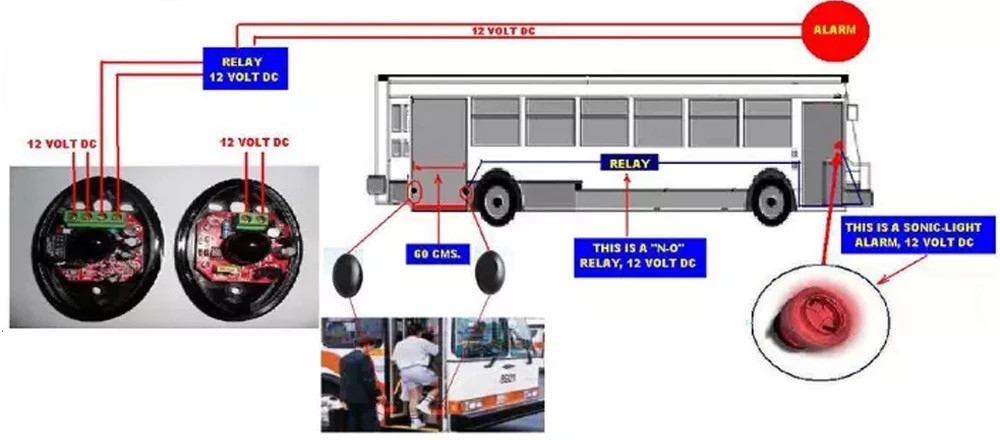

The device provides the feature of controlling a dual-operated internal electrical circuit breaker (connection case / disconnect case for the switch), which can be configured to operate devices or lighting or to remotely control automatic doors, garages and gates
- Range 10-20 meters
It works with 12-24 V DC constant current
Works on most garage devices
Provides NC/NO 36V 0.5 A . breaker output control
Main Features:
* Anti-glare sensitivity of up to 50Lux, built-in automatic adjustment of glare filtering system, to avoid the impact of light or vehicle illumination
* All-weather engineer designed to operate in harsh environments
* Detector increases sensitivity automatically when fog or bad weather (AGC circuit)
* High level of anti RFI/EMI capability
* High quality digital circuit design.
* HD 90% margin high sensitivity.
* Low power consumption.
* Circuit design with anti-lightning processing technology
* Rainproof cover design
* C-type relay output

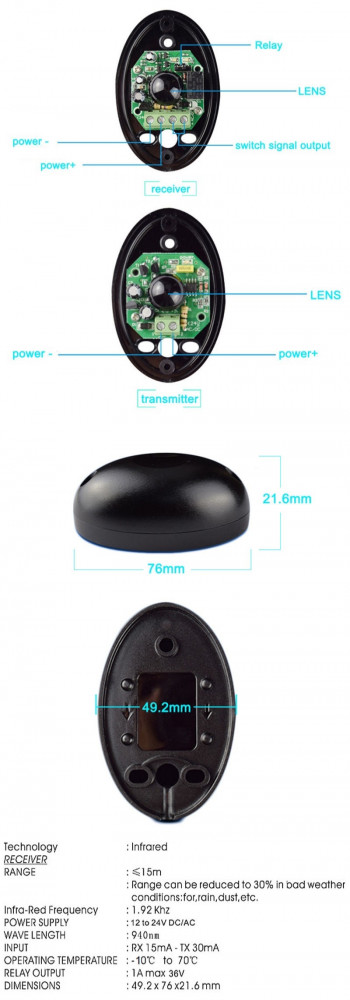

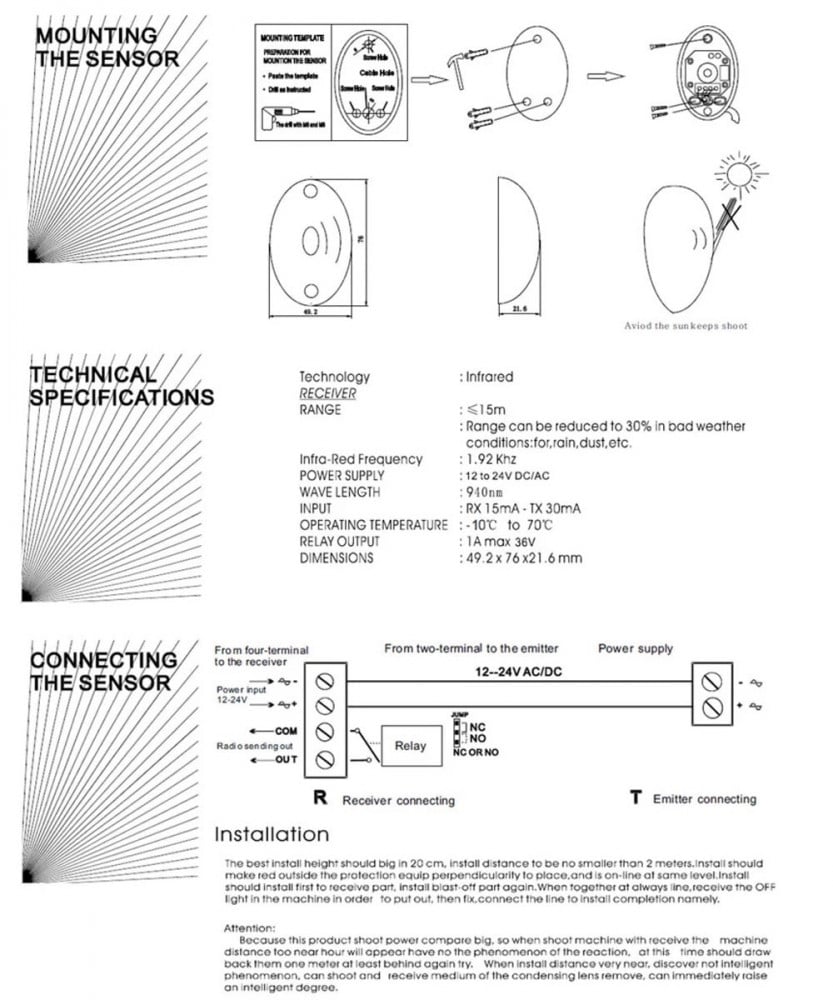

Technical Parameters:
*Product Model: ABO-20L
* Outdoor sensing distance: 20m
* Indoor distance up: 30m
* Sensor speed: 30ms
* Breaker output: NC AV/DC 30V/0.5mA
* Working voltage: DC12-24V
