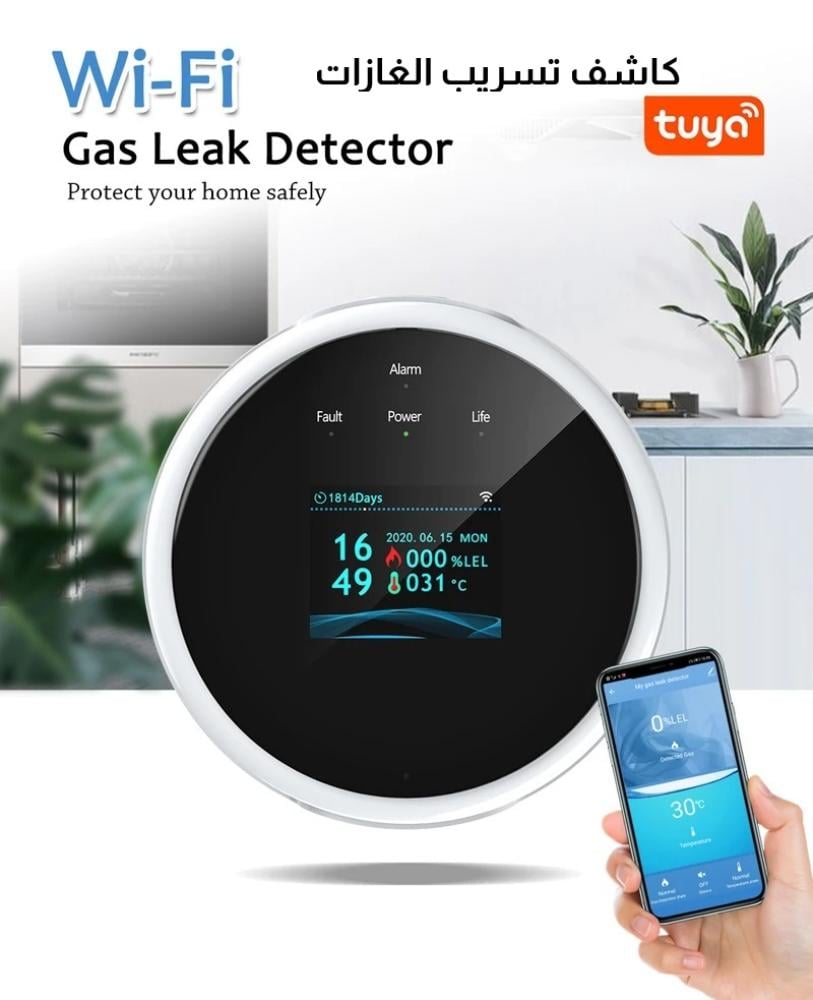

Tuya WiFi Smart Gas Leak Detector | LPG/Natural Gas Alarm & Temp Display (USB Powered)
Enhance your home safety with the eMastiff Tuya WiFi Smart Gas Detector from Abhir-online. This intelligent device provides crucial early warnings for potentially dangerous gas leaks, including Liquefied Petroleum Gas (LPG) and Natural Gas (CH4). Connects via 2.4GHz WiFi to the Tuya/Smart Life App for instant smartphone alerts.
Features a clear LCD displaying real-time gas concentration (0-100% LEL) and ambient temperature (-10°C to +55°C). Alarms trigger at 6% LEL or 57°C with a loud (>70dB) siren and voice prompts. Includes a 5-year sensor life, 180-second warm-up time, and quick response (≤30s).
Uniquely, it also features a 12V/300mA drive output capable of triggering compatible external gas shut-off valves or manipulators (sold separately) for automated safety response. Powered by DC 5V Micro USB (Adapter & Cable Included). Protect your home smartly with Abhir-online.
Features and Highlights:
- Detects combustible gases: LPG, Natural Gas (CH4).
- WiFi Connectivity (2.4GHz) & Tuya/Smart Life App Integration.
- Instant App Push Notifications (Gas Leak, High Temp).

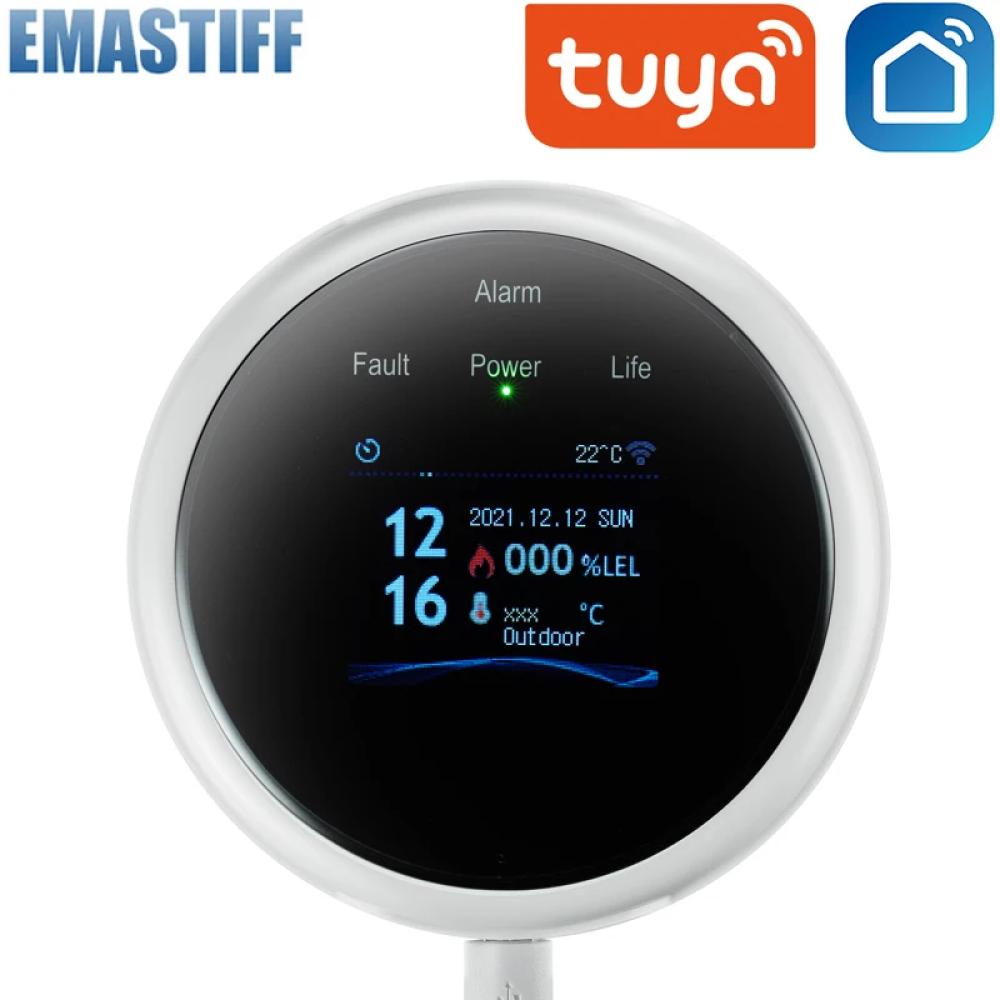

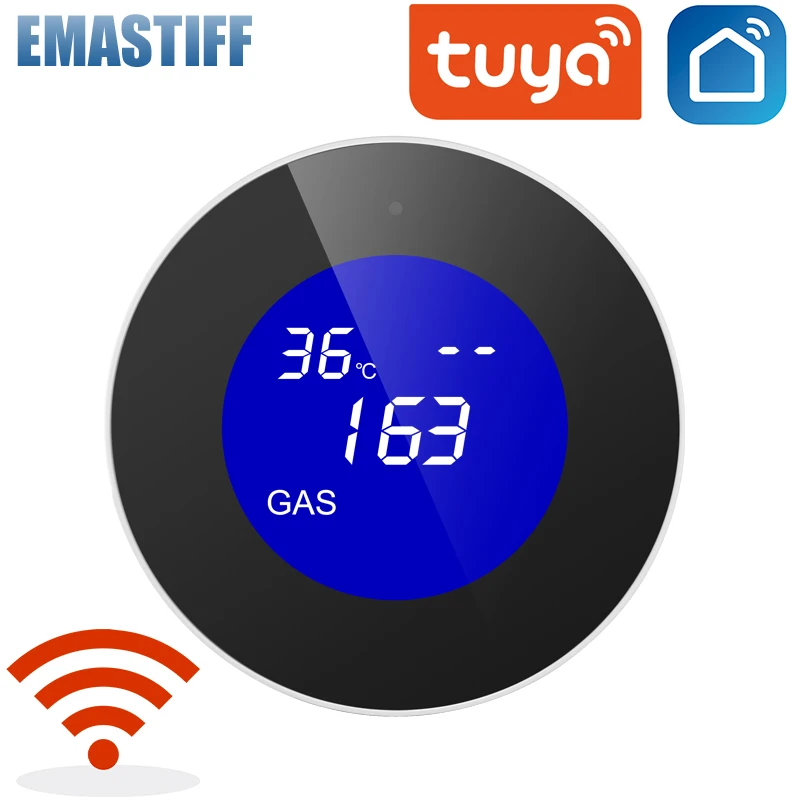

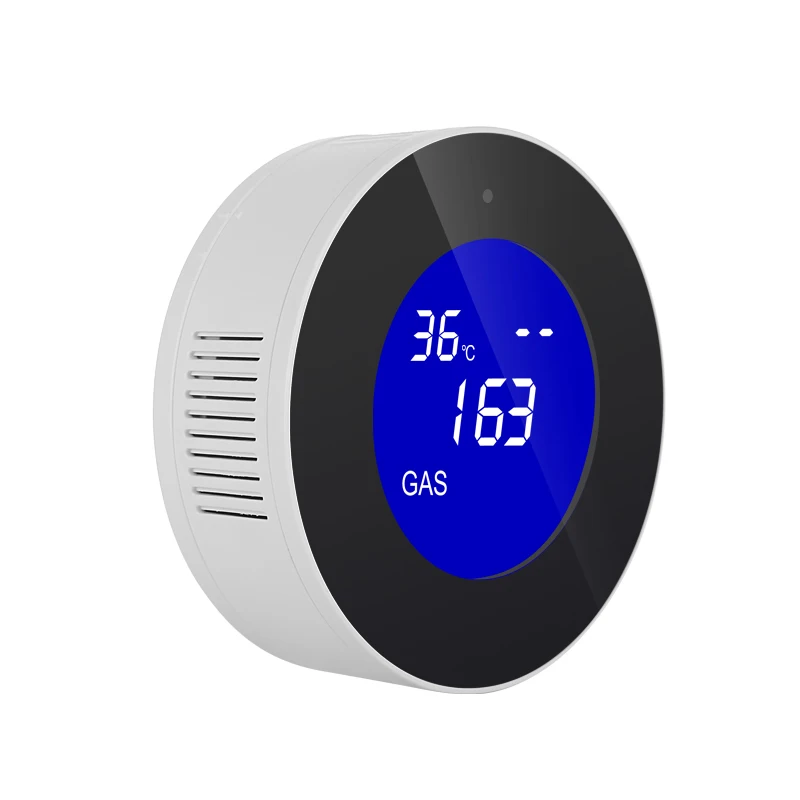

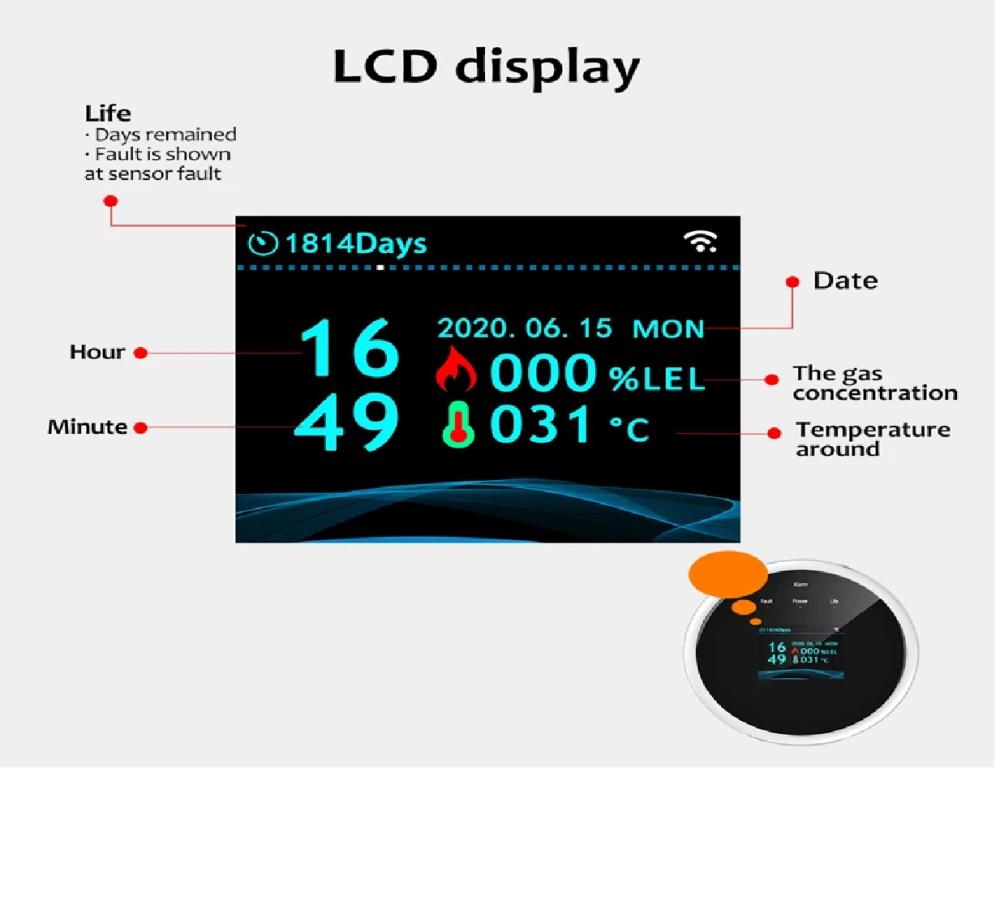

- Clear LCD: Gas Level (%LEL), Temperature (°C), Clock, Status.
- Alarms: Gas >6% LEL, Temperature >57°C.
- Loud Siren (≥70dB) & Human Voice Prompts.
- Output for External Valve/Manipulator (12V/300mA for 15s).
- Long Sensor Lifespan: 5 Years.
- Quick Response Time: ≤30 seconds.
- Warm-up Time: 180 seconds.
- Powered by DC 5V Micro USB (Adapter & Cable Included).
- Wide Operating Temperature: -10°C to +55°C.
- CE Certified.
Benefits and Advantages:
- Critical early warning for gas leaks with remote smartphone alerts.
- Local siren and voice alerts ensure immediate notification.
- Can trigger automatic gas shut-off (with compatible valve).
- Monitors temperature for added safety.
- Clear display provides vital information at a glance.
- Long sensor life offers years of protection.
- Complete package for easy setup from Abhir.
Applicable Applications and Practical Usage Scenarios:
- Monitoring kitchens, boiler rooms for Natural Gas or LPG leaks.
- Integration with smart home safety systems via Tuya.
- Automated gas shut-off systems (requires compatible 12V valve/manipulator).
- Providing audible, visual, and remote alerts for gas hazards.
Compatibility:
Essential safety device for homes/properties in Saudi Arabia/GCC using Natural Gas or LPG, especially for smart home users wanting advanced features like valve control. (Note: Included power adapter is Type C Europlug).
Product Physical Specifications:

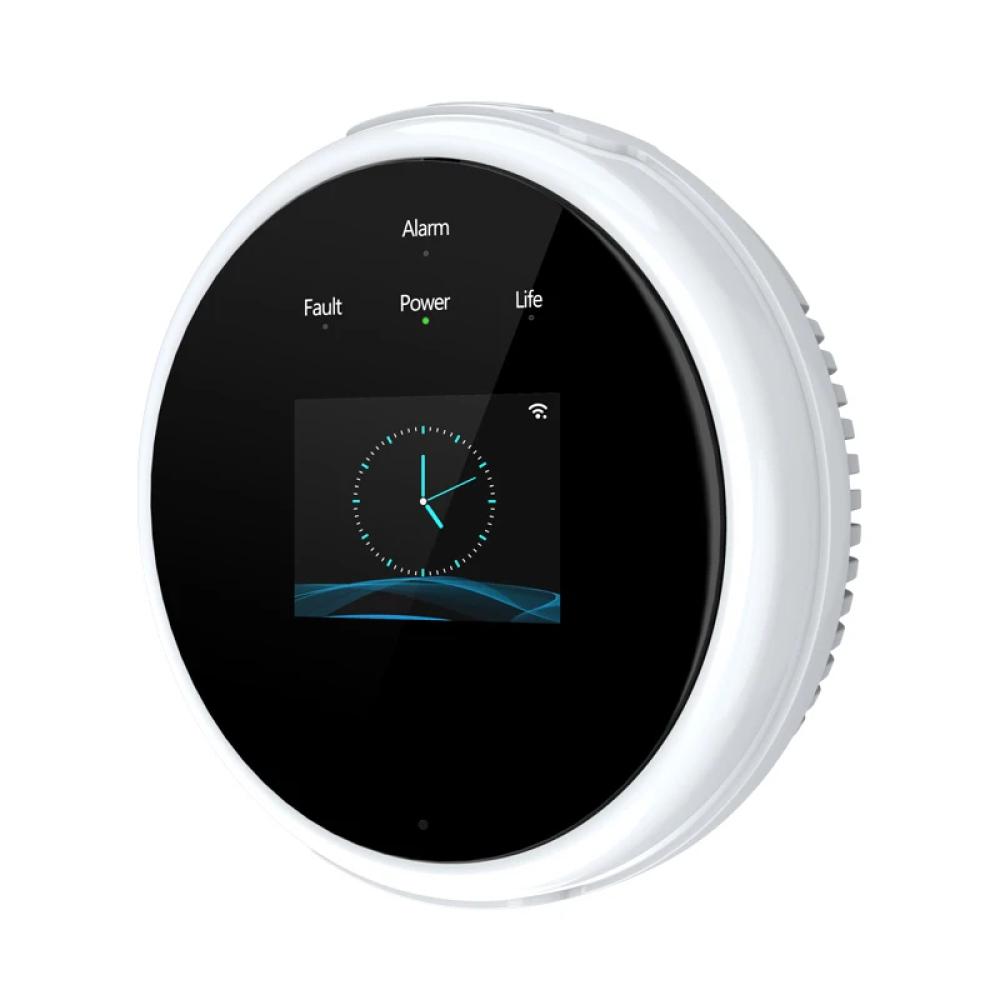

- Type: WiFi Smart Combustible Gas Detector
- Connectivity: WiFi 2.4GHz (IEEE 802.11 b/g/n)
- Detected Gases: LPG, Natural Gas (CH4)

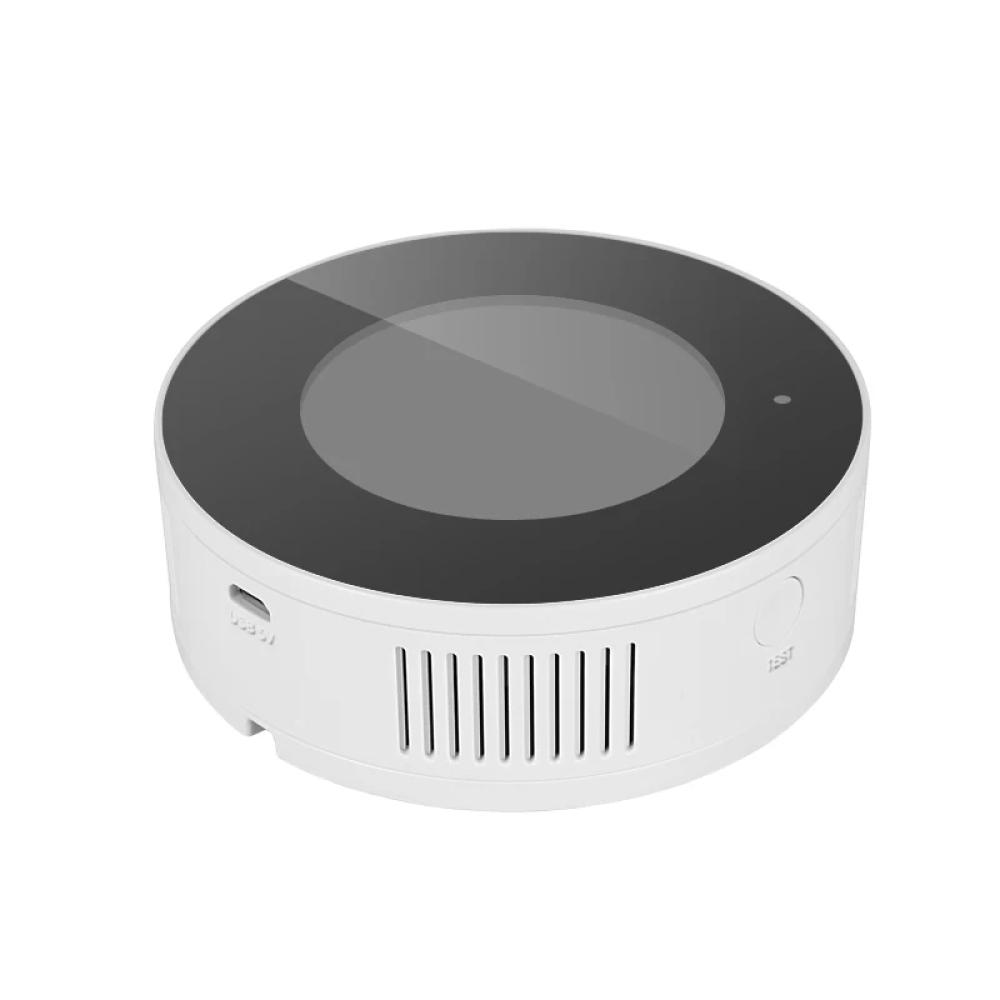

- Power Supply: DC 5V/1A via Micro USB Port
- Power Consumption: <200mA
- Included Power Adapter Plug Type: Type C (Europlug)
- Dimensions (LxWxH): 86mm x 86mm x 24.5mm
- Weight (approx. with accessories): 180 g
- Certification: CE
General specifications and technical specifications:
- Sensor Type: Semiconductor Gas Sensor
- Detection Range: 0-100% LEL
- Alarm Setting Value (Gas): 6% LEL (Tolerance: ±3% LEL)

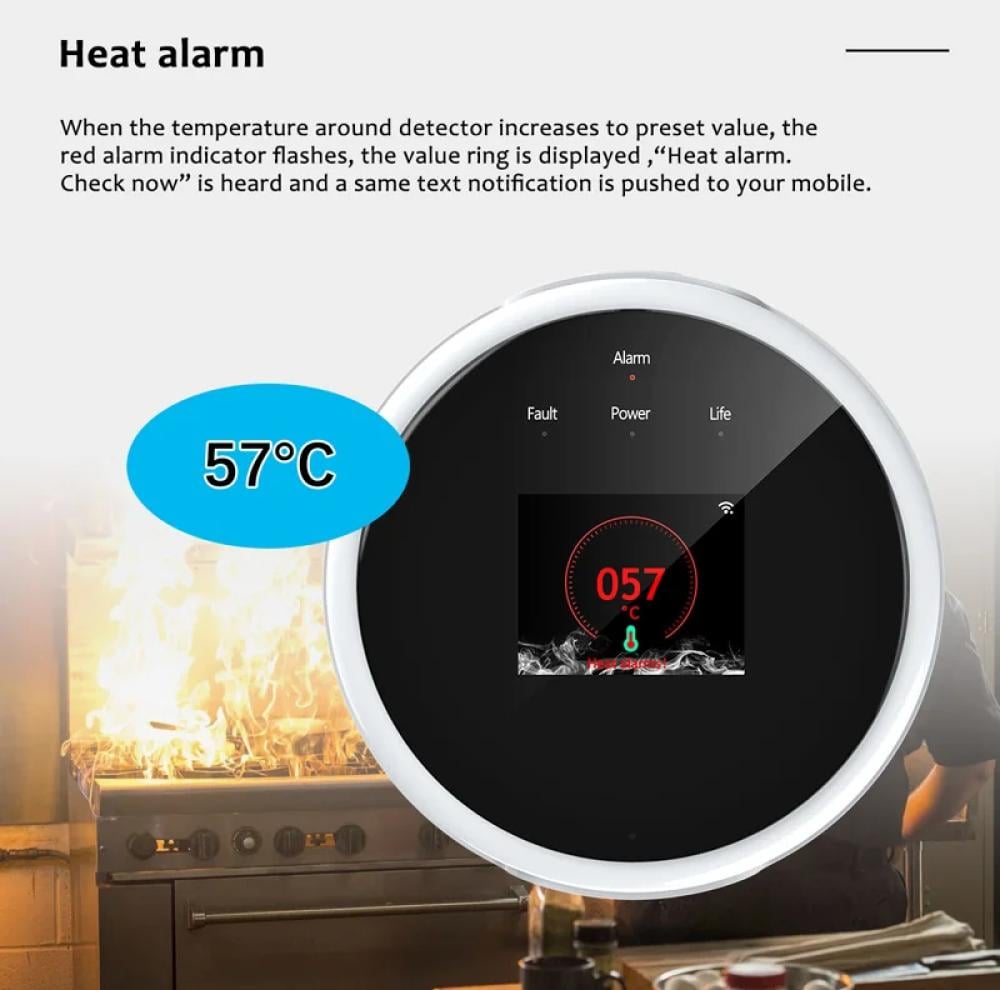

- Alarm Setting Value (Heat): 57°C
- Response Time: ≤30 seconds
- Alarm Sound Level: ≥70dB (@1m)
- Warm-up Time: 180 seconds
- Sensor Lifespan: 5 Years
- Valve/Manipulator Drive Output: 12V / 300mA (for 15 seconds upon alarm)
- Operating Temperature: -10°C to +55°C
- Operating Humidity: <95% RH (Non-condensing)
Special instructions and safety precautions:
- Allow the device to warm up for 180 seconds after plugging in before it becomes fully operational.
- Install according to instructions near potential gas sources.
- Requires stable 2.4GHz WiFi for app features. Not compatible with 5GHz WiFi.
- Use included 5V/1A USB power adapter and cable or certified equivalent.
- The 12V drive output requires a compatible external gas valve/manipulator (sold separately) and proper wiring for automated shut-off functionality.
- Test regularly using the test button/app function.
- Does not detect CO or smoke. Install dedicated detectors for those hazards.
- Follow safety procedures in case of a real alarm.

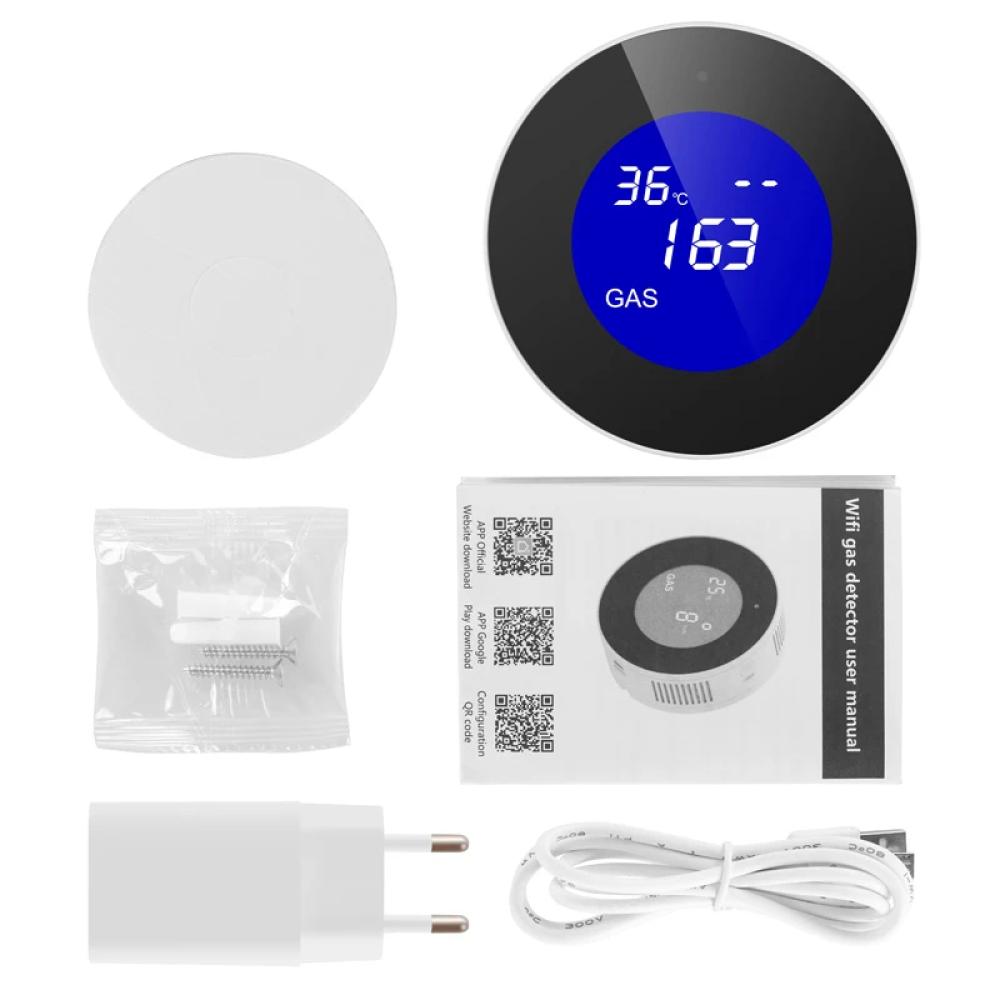

Package contents:
- 1 x Tuya WiFi Smart Gas Detector
- 1 x USB Power Adapter (Type C Europlug)
- 1 x USB-A to Micro USB Cable
- 1 x User Manual

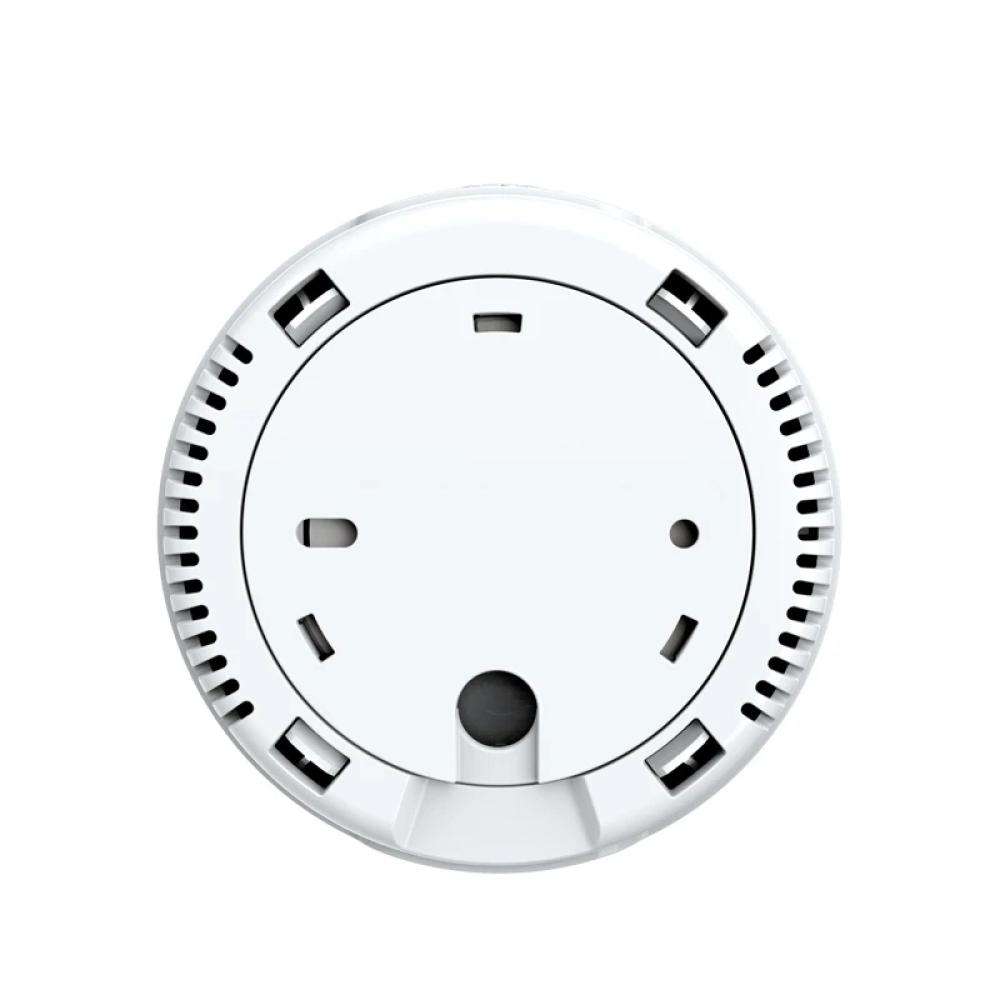

- 1 x Mounting Accessories Set (e.g., Adhesive Pad, Screws/Clips)
