Tuya 2 Channel Wi-Fi Smart Switch Module (TB41) - Control Two Lights
Tired of having to install a separate smart device for every single light switch in a room?
Upgrading to a smart home should be about increasing convenience, not cluttering your walls. At Abhir-Online, we look for solutions that offer maximum value and efficiency.
This is why we feature the TB41 2-Channel Wi-Fi Smart Switch Module. This single, compact, and powerful module is the ultimate lighting upgrade. It installs invisibly behind your existing wall switch and allows you to independently control two separate light circuits. Built from high-quality, PC-V0 fire-retardant materials and certified for safety (CE, RoHS), it’s an upgrade you can trust.
Powered by the reliable Tuya Smart Life platform, it connects directly to your Wi-Fi with no extra hub needed. Control your lights with the app, set schedules, or use your voice with Amazon Alexa and Google Home—all while your original wall switches continue to work perfectly.
It's the smartest, most efficient way to upgrade your home, brought to you by Abhir-Online. To explore more innovative ways to modernize your home, check out our full range of [switches, sockets, plugs, receptacles, Relays].
💡 The Technology Explained (in Simple Terms): This device is a dual smart relay that fits behind your wall switch.
- 2-Channel Control: Think of it as two smart switches packed into one small box. It can manage two independent electrical circuits.
- Direct Wi-Fi (No Hub): It connects directly to your home's 2.4GHz Wi-Fi network and is controlled by the Tuya or "Smart Life" app. This simplicity is a major advantage for anyone starting their smart home journey.
🛠️ Installation & Setup Insights:
- Electrical Connection / Wiring:
⚠️ Safety First: This device connects to mains electricity. Please cut off the power before installation. Installation must be performed by a qualified electrician.
- Wiring: A Neutral wire is required for this module to operate. The module has inputs for Live (L) and Neutral (N), two separate outputs for your lights (L1, L2), and two inputs (SW1, SW2) to connect to your existing 2-gang wall switch.
- Versatile Wiring Options: Unlike simpler modules, the TB41 supports various wiring setups including 1-way, 2-way, and even 3-way switch line modifications, making it highly adaptable for different room layouts.
Pro-Tip from Abhir-Online: This module works best with a standard 2-gang rocker switch, allowing you to retain familiar manual control for both of your light circuits.
Key Highlights:
- ✌️ Two Channels, One Module: Control two separate lights or circuits independently with a single device.
- 📶 No Hub Required: Connects directly to your 2.4GHz Wi-Fi for a simple, clutter-free setup.
- 🗣️ Voice Control Ready: Works perfectly with Amazon Alexa and Google Home for hands-free operation.

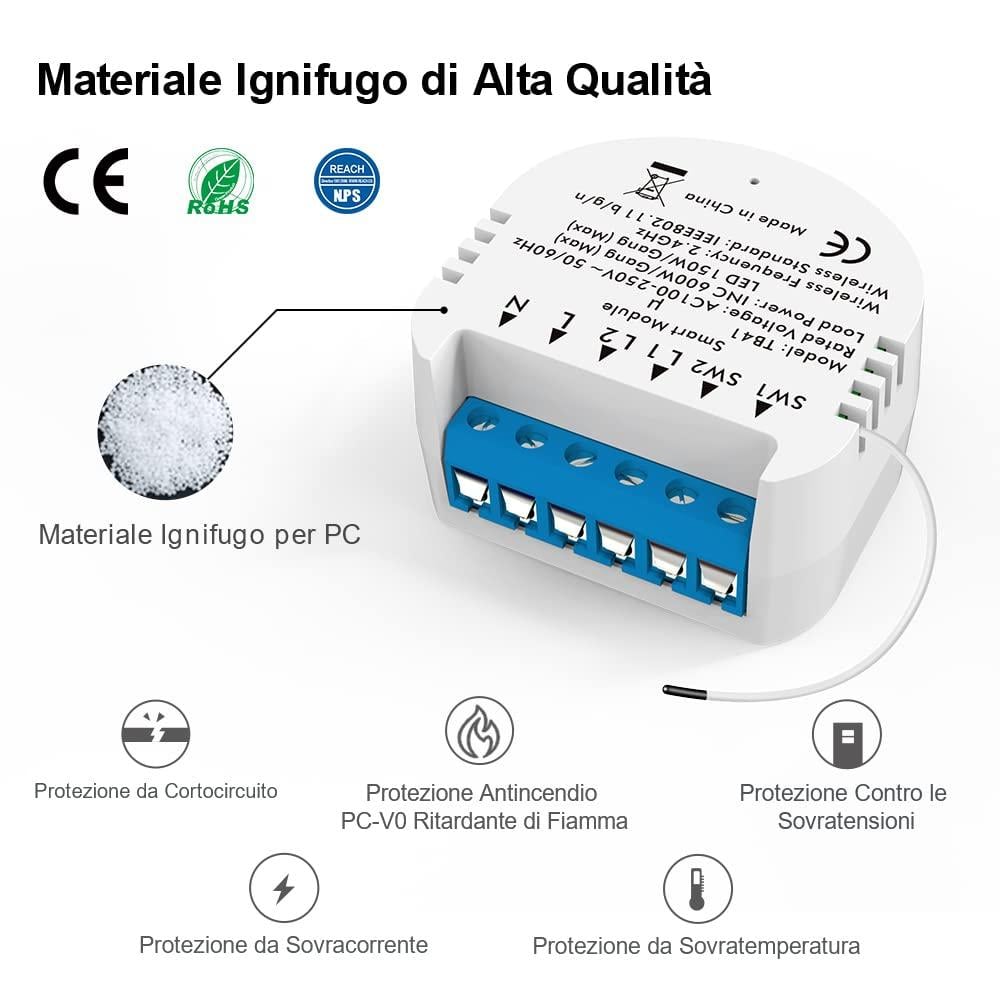

- 🛡️ Certified Safe: Built with PC-V0 fire-retardant materials and featuring protections for short-circuit, overvoltage, overcurrent, and overtemperature.
Product Features and Advantages:
The TB41 module is the epitome of smart efficiency. Its dual-channel capability provides exceptional value, allowing you to double your smart lighting control without doubling the hardware or installation complexity. By integrating into the vast Tuya ecosystem, it offers robust and reliable performance with a feature-rich app experience, including setting intricate schedules, countdown timers, and sharing control with family members. The design ensures that your traditional wall switches remain fully functional, providing a seamless blend of manual and smart control that is intuitive for everyone in the household. Its compact size allows for a discreet installation inside most standard wall boxes, preserving your home's aesthetic while fundamentally upgrading its intelligence.
Applicable Applications and Practical Usage Scenarios:
- Double Switch Upgrade: The perfect solution for rooms that have a single wall plate with two switches—one for the main ceiling light and another for wall sconces or accent lighting. Make both smart simultaneously.
- Kitchen Lighting Control: Independently control your main kitchen lights and the under-cabinet lighting from a single, hidden module. Schedule under-cabinet lights to turn on automatically in the evening.
- Bathroom Fan & Light: A very popular use case. Automate your bathroom's extraction fan and light independently. Set a timer for the fan to turn off automatically 15 minutes after you leave the room.
- Cost-Effective Multi-Room Setup: For new constructions or renovations, using a single TB41 to control lights in two adjacent small areas (like a pantry and a small hallway) can be a cost-effective installation strategy.
Product Physical & Technical Specifications
- Model: TB41
- Power Supply Mode: Neutral + Live Wire
- Rated Voltage: AC100-250V ~ 50/60Hz
- Rated Power (Max Load):
- Incandescent (INC): 1200W (Total Max)
- LED: 150W / Gang (Per Channel)
- Wireless Standard: IEEE 802.11 b/g/n
- Wireless Frequency: 2.4GHz

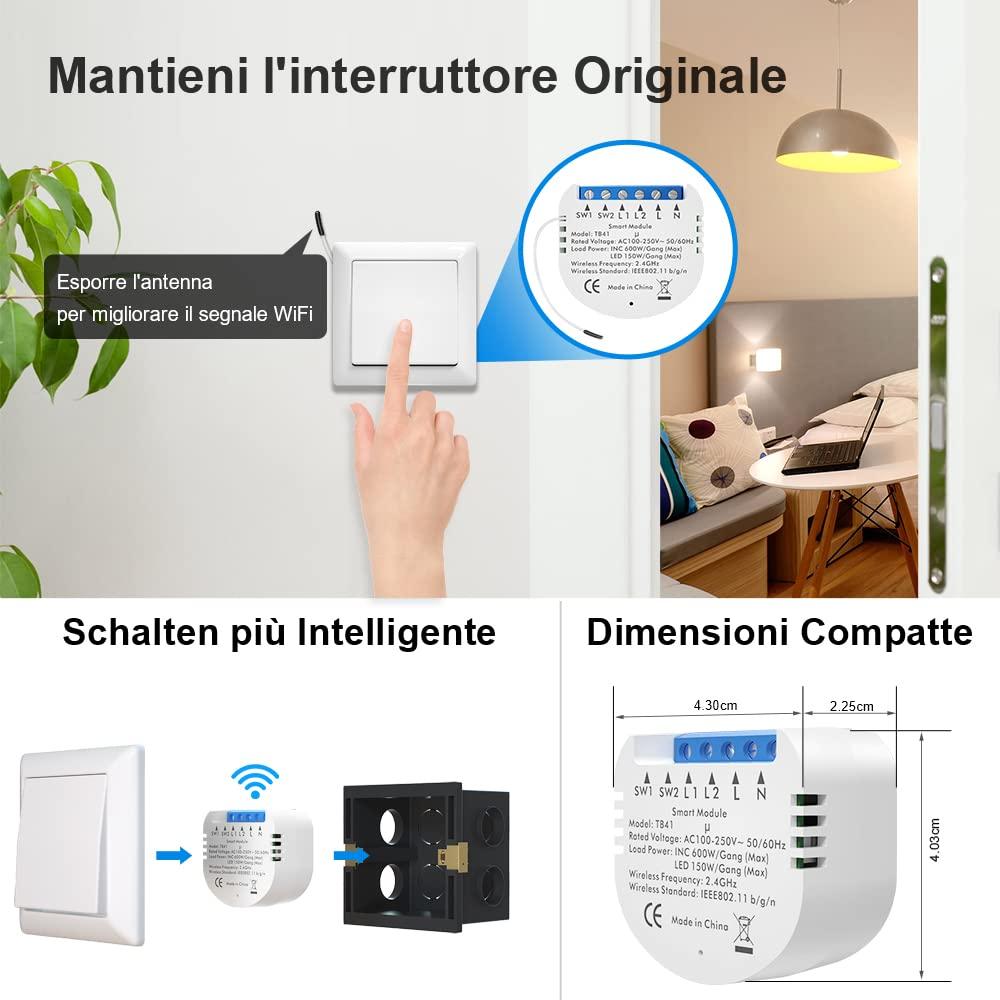

- Dimensions: 40.3 x 43.0 x 22.5 mm
- Certifications: CE, RoHS
Compatibility:
- App: "Smart Life" app.
- System Requirements: Mobile devices that support iOS 8.0 and above, or Android 4.4 and above.
- Voice Assistants: Amazon Alexa, Google Home.
- Switch Type: Compatible with standard 2-gang mechanical rocker switches.
Package Contents
1 x TB41 Wi-Fi Switch Module
1 x User Manual
Complete Your Setup (Frequently Bought Together):
Helpful Resources & Videos:
Keywords:
Tuya Smart Switch, 2 Channel Relay, TB41, Wi-Fi Switch Module, 2 Gang, Dual Light Control, No Hub, Smart Life App, Alexa, Google Home, Abhir online
Frequently Asked Questions (FAQs):
Q1: Do I need a hub for this module to work?
A1: No, the TB41 connects directly to your 2.4GHz Wi-Fi network. You do not need any separate hub or gateway.
Q2: The module is not responding. How do I reset it?
A2: You can easily reset the module by using your existing physical wall switch. Quickly turn the switch ON/OFF four times in a row (for a total of 8 movements) until you hear the buzzer sound "Di Di, Di Di".
Q3: Can I control two different types of lights with this one module?
A3: Yes, you can control two separate circuits independently. For example, one channel can control LED lights (up to 150W) and the other can control incandescent lights (up to a total of 1200W for the whole module).
Q4: Will this work with my 5GHz Wi-Fi network?
A4: No, this product only supports 2.4GHz Wi-Fi networks. You must connect your phone to the 2.4GHz network during the setup process.
Q5: Can I use this in a hallway with two switches controlling one light?
A5: Yes, the wiring diagram in the user manual shows that this module can be used in 2-way and 3-way switch line modifications, making it suitable for hallways and rooms with multiple switches for the same lights.
Q6: Will this fit in my existing wall box?
A6: The module is very compact at 40.3 x 43.0 x 22.5 mm. However, we always recommend checking the space in your wall box first, as existing wiring can take up considerable room.
🛠️ Installation & Setup Insights:
Electrical Connection / Wiring:
⚠️ Safety First: This device connects to mains electricity. Please cut off the power before installation. Installation must be performed by a qualified electrician.
Wiring: A Neutral wire is required for this module to operate. The module has inputs for Live (L) and Neutral (N), two separate outputs for your lights (L1, L2), and two inputs (SW1, SW2) to connect to your existing 2-gang wall switch.
Versatile Wiring Options: Unlike simpler modules, the TB41 supports various wiring setups including 1-way, 2-way, and even 3-way switch line modifications, making it highly adaptable for different room layouts.
