THC-109B Photo Sensor Timer Switch - Drum Track Mount 25A
Din rail Twilight Switch
Applications
Timer switch with external sensor used for switching street and garden lights, advertising lighting, shop windows, etc.
Job Features:
- Equipped with an external photocell sensor module with a wire length of 20 cm
It controls the lights based on the intensity of the ambient light.
- The ambient intensity level is monitored by an external sensor and the output is switched according to the level set on the device.
Control input for additional control
Illumination range 1-100Lx
-ON-AUTO-PFF function
- Voltage: AC 110V - 240V.
- 1SPST 25A/AC1 . output
-1 MODULE, DIN rail.
OFF 25A Photocell Light Control Switch With AC220V Din rail Sensor
THC-109B with sensor = automatic / manual type
General applications:
The product can automatically turn on or off the light according to the ambient light. Ambient temperature and humidity cannot affect this. It is not only convenient but also practical; It can control the load which only works at night. It is used for road lighting, garden lighting, etc.
Job Features
(THC-109B) When the wave switch is turned off, the lights go out; When the wave switch is put on, the light is forced to open; When the wave switch on the AUTO starts working automatically, the other continues the next THC-109 operation test;
Move the LUX knob to determine the amount of light sensitivity, and turn on the power.
When you test during the day. You must cover the product with a black opaque cloth.
When the cloth covers the photocell detection window, the ambient light of the photocell is less than 2 LUX, and the lamp will light up.
When you take off this cloth, the light will turn off automatically.
When moving the LUX knob to the sun position, the lamp can be lit in ambient light less than 100LUX.
In front of the photocell, there should be no obstacle that affects the acceptance of natural light;
There should be no oscillating body in front of the photocell.
Do not install the photocell under the light or in the place where the light will be irradiated into the photocell.
GEYA 1NO Twilight Switch Auto Manual ON OFF Photocell Light Control Switch 25A with Sensor AC220V Din rail
THC-109B with sensor=Auto/Manual Type
General
Applications
The product can turn on or turn off light automatically according to ambient-light. Ambient temperature and humidity can't affect it. It is not only convenient but also practical; it can control the load working only at night. It is used for road light, garden light etc..
Function Features
(THC-109B)When wave switch located OFF, lights out;When wave switch located ON, forced open the light;When wave switch located in the AUTO start work automatically, the other to continue the following THC-109 process test;
- Slide the LUX knob to position moon, and switch on the power.
- When you test in daytime. You should cover a black opaque cloth on the product.
- When the cloth mantles the detection window of the photocell, the ambient light of the photocell is less than 2 LUX, the lamp will be on.
- When you take off this cloth, the lamp will be off automatically.
- When you slide the LUX knob to position sun, the lamp could be on in the ambient light less than 100LUX.
- In front of the photocell, it should be no obstruction affecting to accept natural light;
- In front of the photocell, it should be no swaying object.
- Don't install the photocell under the light or in the place where the light will be irradiated to the photocell.

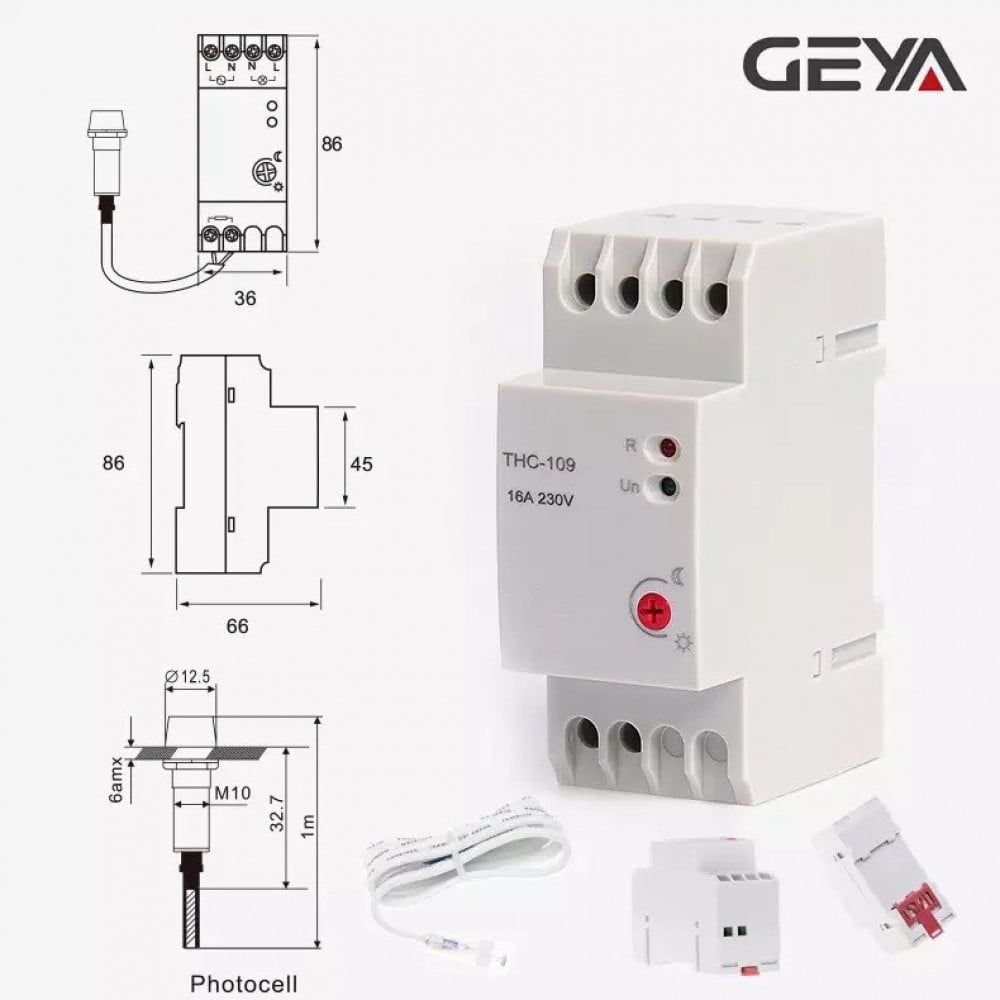

Modular Light Sensitive Switch THC109B Relay
ItemNoTHC109B
Operating Voltage AC220V 50/60Hz
Voltage RangeAC 180-250V
Power Consumption 4VA (max)
Electrical Life100000
(rated Load)
Ambient Light<5-150LUX (Adjustable)
Load Rating16A, 20A, 25A
MountingDIN rail mounting
Contact Capacity
THC109B 25A Resistive: 25A/250VAC (cosΦ=1)
QTY/Carton100PCS
Gross Weight15KG
Net Weight14KG
Carton size (mm) 515*330*325
Temperature-10-40℃
Relative Humidity35-85%RH
