Matter Certified Smart Wi-Fi Switch Module (1-Channel) - for HomeKit, Alexa & Google
Are you tired of buying a smart device only to find it doesn't work with your preferred smart home system?
The dream of a smart home can quickly become a frustrating mess of incompatible apps and devices. At Abhir-Online, we believe in a simpler, more unified future for your home. We actively seek out next-generation technology that breaks down these digital walls.
This is why we are thrilled to introduce the Matter Certified Smart Wi-Fi Switch Module. This is more than just a smart switch; it's your ticket to a truly interoperable smart home. By using the new universal "Matter" protocol, this compact module is designed to work seamlessly with all major platforms, including Apple HomeKit, Amazon Alexa, and Google Home, without any complex workarounds.
Install it invisibly behind your existing wall switch to control lights, fans, or other small appliances (up to a powerful 16A load). Control it from any app, with your voice, or with your physical switch. This is the future of smart home control, made simple by Abhir-Online.
To explore more innovative ways to modernize your home, check out our full range of [switches, sockets, plugs, receptacles, Relays].
💡 The Technology Explained (in Simple Terms):
This device is a single-channel (controls one circuit) smart relay.
- Matter Protocol (Its Superpower): Matter is the new universal language for smart home devices. Think of it like a universal translator that allows devices from Apple, Google, Amazon, and others to all speak to each other directly and securely. This means you are not locked into one brand's ecosystem.
- How it Works: The module is wired in-line with your light or appliance. It connects to your 2.4GHz Wi-Fi and your Matter hub (like a HomePod or Google Nest Hub) and acts as a bridge, allowing you to control the connected device from any Matter-compatible app or voice assistant.
🛠️ Installation & Setup Insights:
Electrical Connection / Wiring:
⚠️ Safety First: This device connects to mains electricity. Installation must be performed by a qualified electrician in accordance with local regulations.
Wiring: A Neutral wire is required. The module has inputs for Live (L) and Neutral (N), an output for your light/appliance (L1), and an input for an optional external physical switch (S1).
Pro-Tip from Abhir-Online: For the best experience and to enable remote control, a "Home Hub" is required by the Matter protocol. This can be a HomePod or Apple TV for Apple Home users, or a Nest Hub for Google Home users.
Key Highlights:
- 🌐 Matter Certified: The new standard for universal smart home compatibility.
- 🗣️ Works with All Assistants: Control your device with Siri, Amazon Alexa, and Google Assistant.
- 💪 Powerful 16A Load: Capable of controlling not just lights, but also more powerful appliances.
- ✨ Invisible Installation: Compact size allows it to be hidden inside a standard junction box.
Product Features and Advantages:

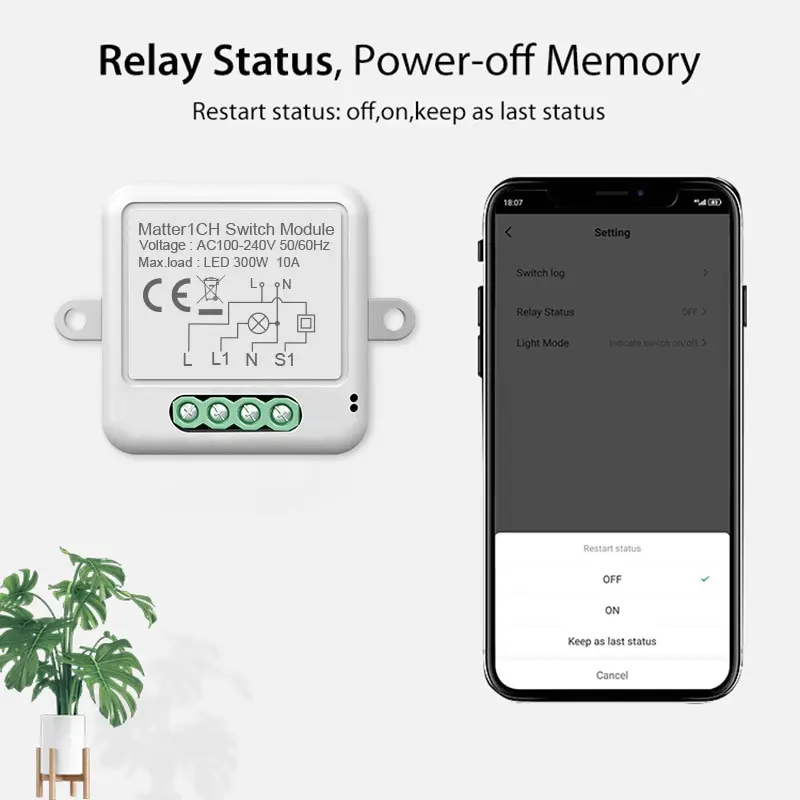

The Matter Smart Switch Module represents a fundamental leap forward in home automation. Its greatest advantage is freedom—freedom from being locked into a single ecosystem. By adopting the Matter standard, this device guarantees future-proof interoperability, ensuring it will work with the smart home platforms of today and tomorrow. The powerful 16A relay extends its use beyond simple lighting, allowing for the safe automation of a wider range of household appliances. The module also includes convenient features like power-off memory, which lets you choose whether the switch should return to its last state, on, or off after a power cut. Its compact and thoughtful design, complete with a mounting clip, ensures a clean and secure installation inside any standard junction box.
Applicable Applications and Practical Usage Scenarios:
- Unified Smart Lighting: Perfect for homeowners who use a mix of devices (e.g., an iPhone and a Google Nest Hub) and want all their lights to work together in one seamless system.
- High-Power Appliance Control: Go beyond lights. Use the powerful 16A relay to automate electric fans, small water heaters, coffee makers, or other appliances that draw more power.
- DIY Smart Projects: An essential component for any custom smart home project, providing a reliable, universally compatible switch that can be controlled from any major platform.
- Rental Properties: A great solution for landlords or tenants who want to add smart lighting without committing to a single brand's ecosystem, ensuring it will work for future residents.
Product Physical & Technical Specifications
- Model: HMJ-MATTER-SB01
- Protocol: Matter
- Rated Voltage: AC100-240V 50/60Hz
- Max. Load: 16A
- Wireless Frequency: 2.4GHz
- Dimensions (W x D x H): 39.2 x 39.2 x 18 mm
- Certifications: CE, RoHS, FC, UKCA
- Type: 1-Channel Matter WiFi Smart Switch Module (Relay)
- Connectivity: WiFi 2.4GHz (IEEE 802.11b/g/n)
- Protocol: Matter 1.0
- Rated Voltage: AC 100-240V, 50/60Hz
- Rated Current: 10A Max
- Max Load (LED Example): 300W

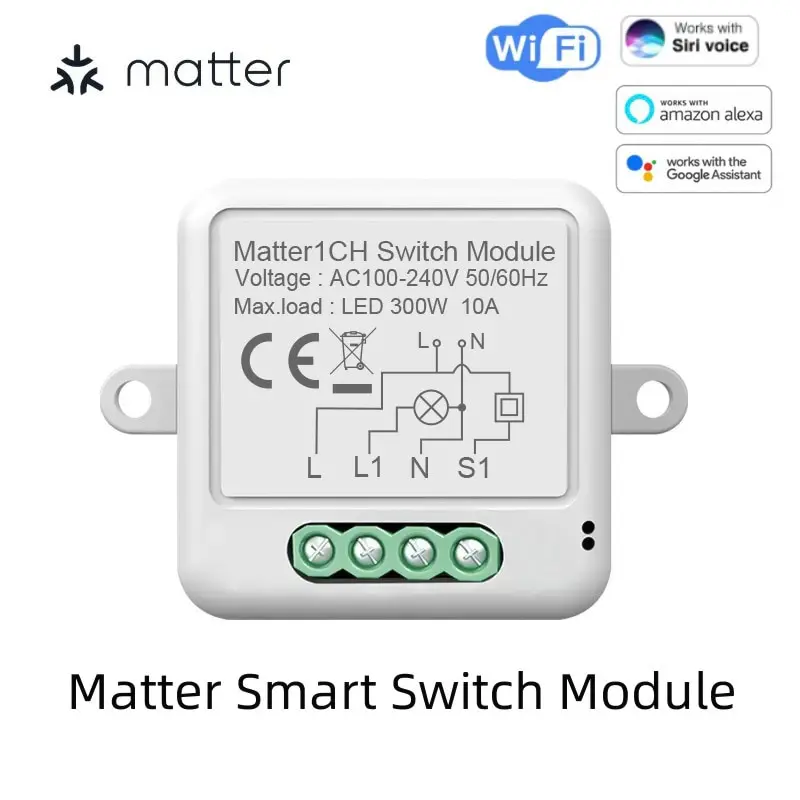

- Terminals: L (Live In), L1 (Live Out), N (Neutral), S1 (External Switch)
- Neutral Wire: Required for operation.
- Operating Temperature: -10°C to 40°C
- Operating Humidity: ≤90% RH
- Weight (approx.): 50 g
General specifications and technical specifications:
- App Control: Yes (via Matter-compatible apps like Apple Home, Google Home, Amazon Alexa, etc.)
- Voice Control: Siri, Amazon Alexa, Google Assistant
- Certification: CE (as per image)
Compatibility:
- Platforms: Any platform supporting Matter, including Apple Home, Amazon Alexa, Google Home, Samsung SmartThings.
- System Requirements: For Apple Home, an iOS device with version 16.0 or later and a Home Hub (HomePod/Apple TV) are required.
Special instructions and safety precautions:
- Electrical Hazard: Installation involves mains electricity (AC 100-240V) and should only be performed by individuals with appropriate electrical knowledge and adherence to safety regulations. If unsure, consult a qualified electrician.
- Neutral Wire Required: This device needs a Neutral wire in the switch box for operation. Verify your wiring before purchase.
- Ensure power is disconnected at the circuit breaker before installation.
- Follow the wiring diagram carefully (L=Live In, L1=Load Out, N=Neutral, S1=External Switch). Incorrect wiring can be dangerous and damage the device.
- Do not exceed the maximum rated current (10A) or power.
- For indoor use only. Keep away from moisture.
- Ensure a stable 2.4GHz WiFi signal with internet access for smart features.
Package Contents
1 x Matter Switch Module
1 x User Manual
Complete Your Setup (Frequently Bought Together):
Helpful Resources & Videos:
Keywords:
Matter switch, WiFi smart switch, HomeKit switch, Alexa switch, Google Home switch, smart relay module, 1 channel relay, DIY smart home, smart lighting, app control switch, voice control switch, Abhir online, circuit breaker module.
Frequently Asked Questions (FAQs):
Q1: What is "Matter" and why is it important?
A1: Matter is a new universal standard that allows smart home devices from different brands to work together seamlessly. It means you are not locked into one system (like only Google or only Apple) and your devices will be more reliable and secure.
Q2: Do I still need a "hub" for this to work?
- A2: Yes, the Matter protocol requires a "Matter Hub" or "Border Router" to manage the devices on your network. For Apple users, this is a HomePod or Apple TV. For Google users, it's a Nest Hub. The switch itself connects via Wi-Fi to this hub.
Q3: What happens if my internet goes down?
A3: If you have connected a physical wall switch to the S1 terminal, it will continue to work perfectly to turn your light on and off manually, even with no internet connection.
Q4: Can I use this to control a high-power device like a water heater?
A4: This 1-Channel module is rated for a powerful 16A maximum load, which is higher than a typical 10A switch. You must check the power rating (in Amps) of your appliance to ensure it does not exceed this limit.
Q5: How do I add this to my smart home app?

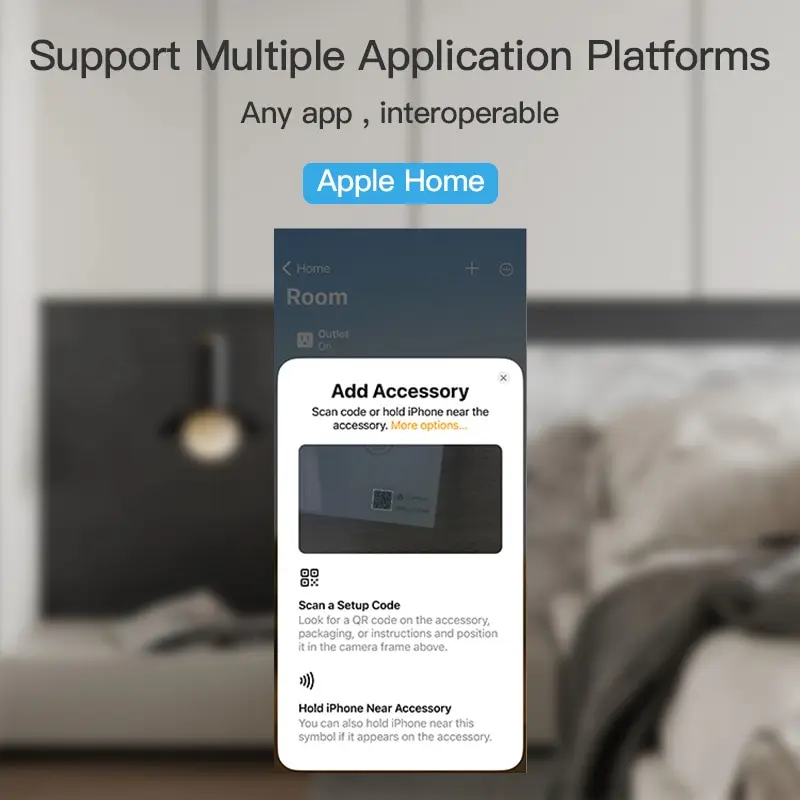

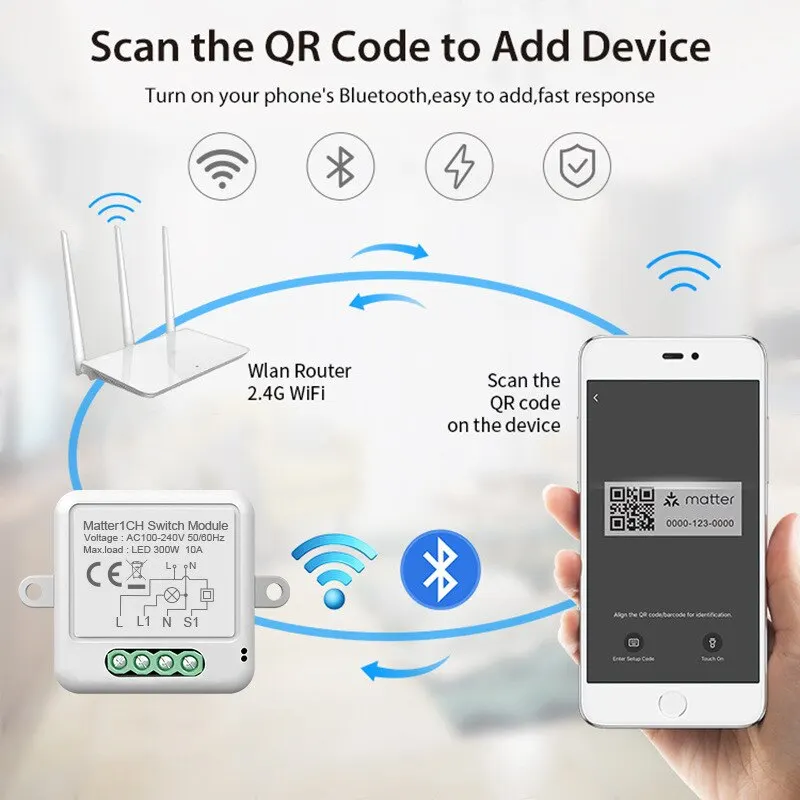

A5: Adding a Matter device is simple. You just open your preferred app (like Apple Home), tap "Add Accessory," and scan the Matter QR code on the device itself.
