G202 GSM Remote Controller & Gate Opener (2G) - Control by Free Call & SMS
Ever Wished You Could Open Your Gate or Turn on a Machine from Miles Away with a Simple Phone Call?
For homes with automatic gates, remote isterahas (استراحات), or farms with essential equipment, convenient access and control are paramount. Fumbling for remotes, giving them out to multiple people, or worrying if a pump is running is a daily hassle. At Abhir-Online, we believe in providing simple, robust solutions that leverage the technology you already own: your mobile phone.

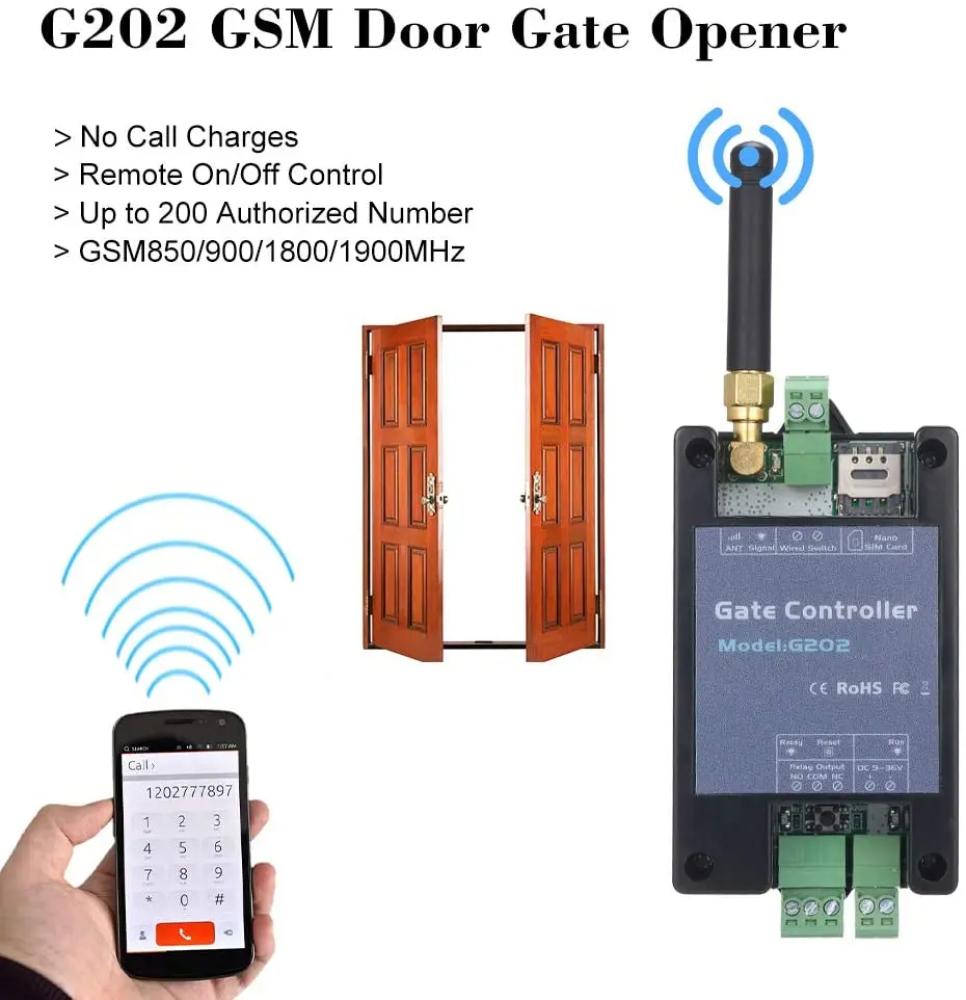

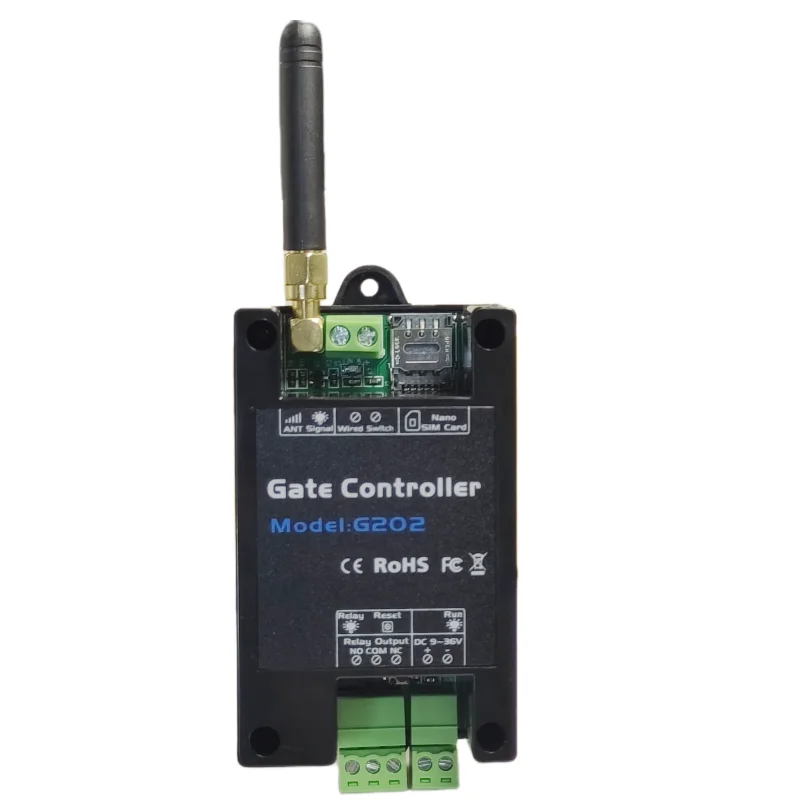

Introducing the G202 2G GSM Remote Controller. This powerful and secure device is the ultimate solution for remote access and control where Wi-Fi is unavailable or impractical. It works over the reliable GSM cellular network, transforming your phone into a universal remote. Simply call the device's number from an authorized phone, and it will trigger the relay to open your gate, garage door, or turn on a machine, then reject the call so you are never charged. You can also send SMS commands for more advanced control. With support for up to 200 authorized users, it's perfect for families, communities, and businesses.
Secure, simple, and incredibly versatile, the G202 from Abhir-Online puts the power of remote control right in your pocket.
💡 The Technology Explained (in Simple Terms):
- How It Works (GSM Control): The G202 contains a SIM card slot. You insert an active 2G SIM card, and the device gets its own phone number. It listens for incoming calls and SMS messages, acting on commands only from numbers you've pre-approved.
- The "Free Call" Trick (Caller ID): This is the clever part. When you call the G202, it doesn't answer. It simply reads your Caller ID. If your number is on its authorized list, it triggers the relay (opens the gate) and immediately hangs up. Since the call never connects, you are not charged by your mobile operator.
- The Relay (Its "Hand"): A relay is an electronic switch. The G202's relay is "dry contact," meaning it acts like a simple push-button. It closes the circuit for a moment, just like pressing the manual button on your gate or garage opener.
🛠️ Installation & Setup Insights from Abhir-Online:

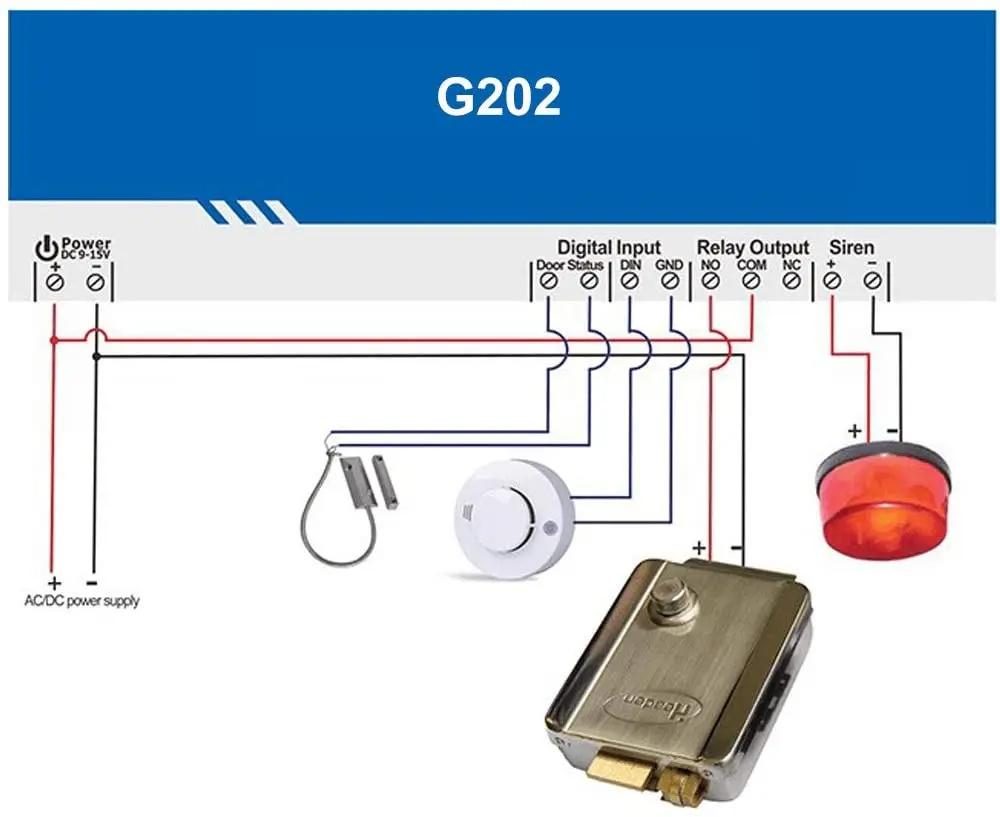

How to Connect (Electrical):
- Power: Connect a DC power supply (9-36V) to the power input terminals.
- Gate/Garage Control: Connect the two "Relay Output" terminals to the "push-button" or "manual switch" terminals on your gate or garage door opener's control board.
- Antenna: Screw on the included GSM antenna for the best possible cellular reception.
- How to Program (SMS Commands):
- Prerequisites: An active 2G SIM card with the PIN code disabled.
- Step 1 (Authorize Admin): The first number to send an SMS command becomes the administrator. You can then add up to 200 users.
- Step 2 (Add Users): Send a simple SMS command to add phone numbers to the authorized list.
- Step 3 (Test): Call the G202's number from an authorized phone. You should hear it ring once or twice and then disconnect, and your gate should open.
Compatibility:

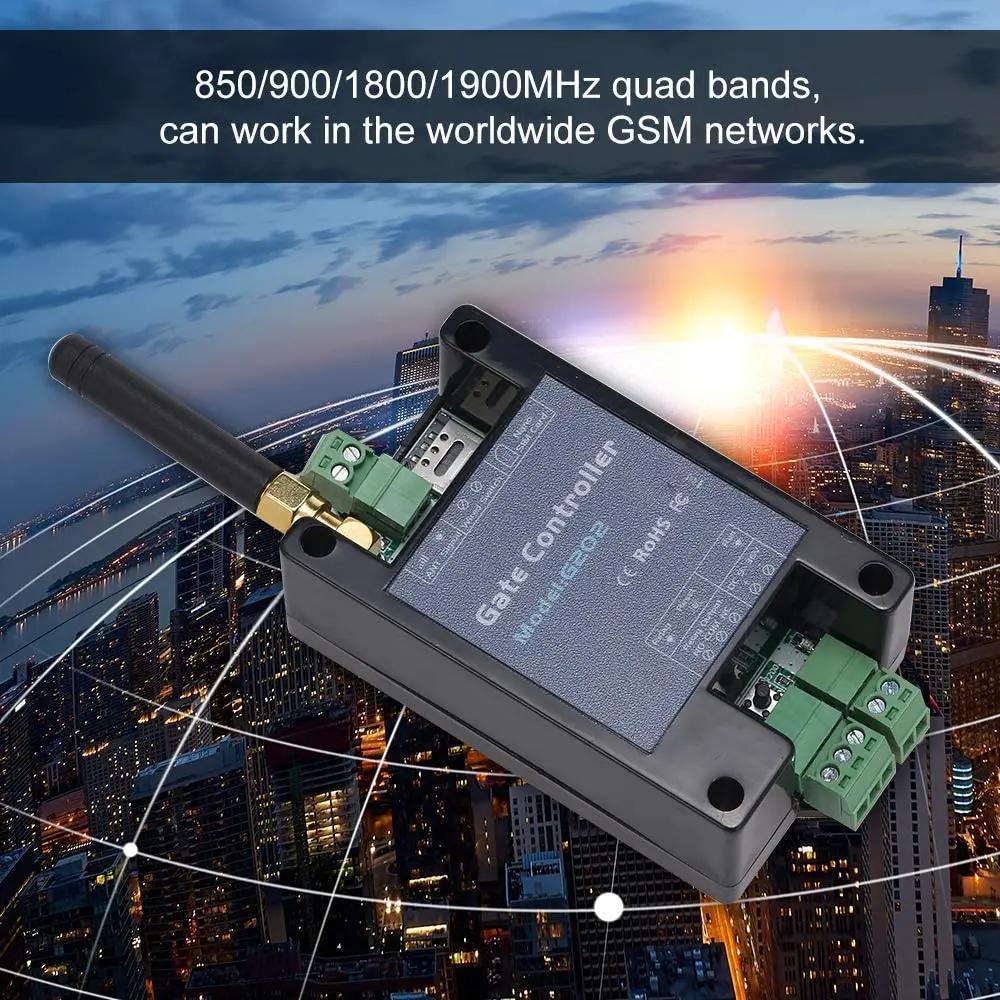

- Network: Works on any 850/900/1800/1900MHz quad-band GSM network worldwide.
- Gate/Garage Openers: Compatible with any gate or garage door opener that has a push-button input for manual operation.
- Other Devices: Can be used to remotely switch on/off lights, pumps, and other machines that can be activated by a momentary switch contact.
Applicable Applications and Practical Usage Scenarios:

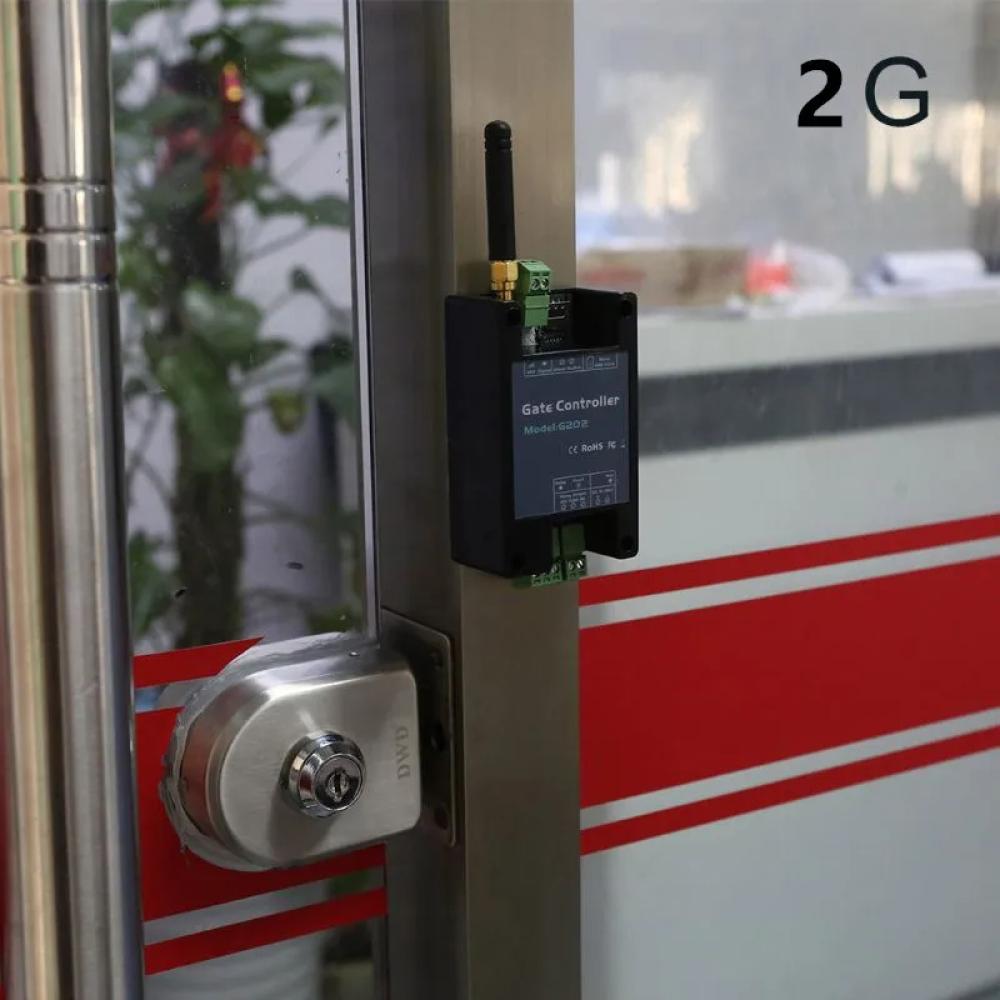

- Residential Gate & Garage Access: Grant access to your family members without needing physical remotes. Open the gate for a delivery driver while you're at work.
- Community & Office Access: Manage access for up to 200 residents or employees easily. Adding or removing a user is as simple as sending an SMS.
- Farm &
Isteraha Control: Remotely turn on water pumps, irrigation systems, or lights from anywhere.
- Industrial Machine Control: Remotely reset or activate machinery with a simple, secure phone call.
Product Physical Specifications

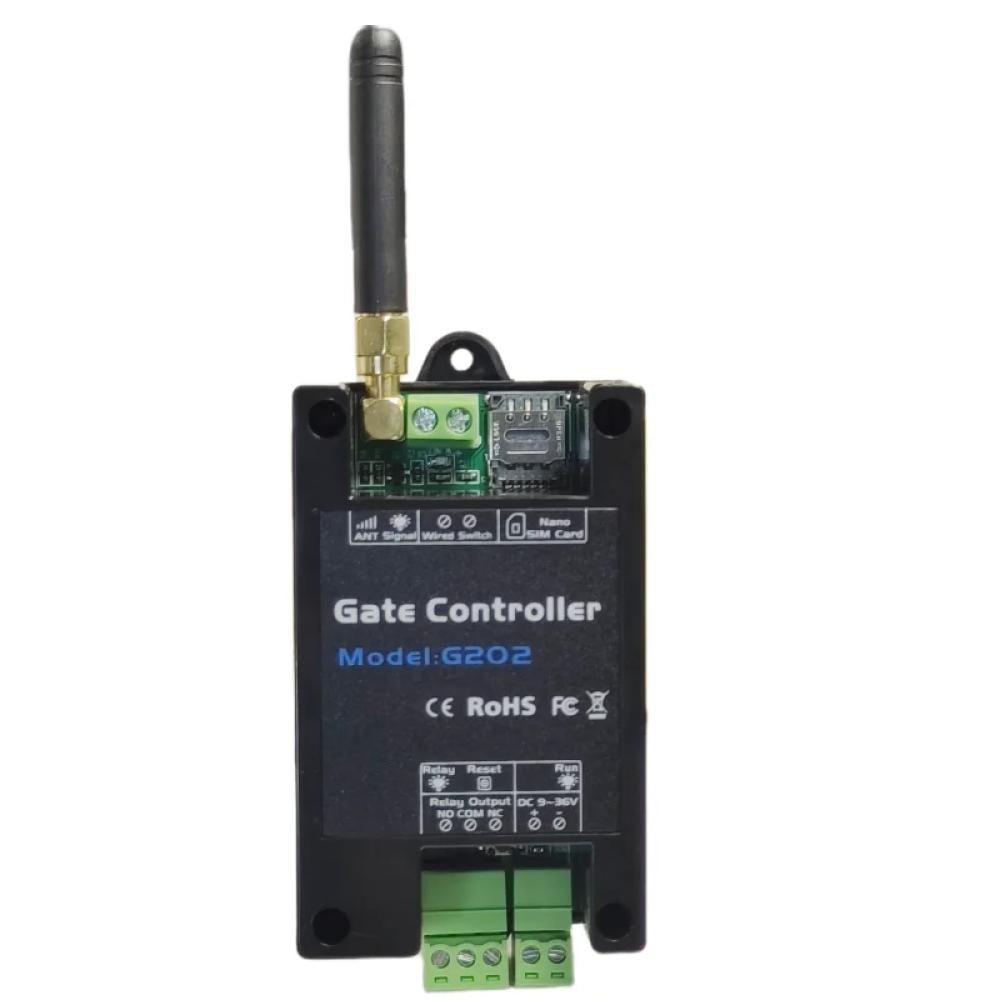

Model: G202
Communication Protocol: GSM (Quad-band 850/900/1800/1900MHz)
Power Supply: DC 9V-36V
Relay Output: NC/NO dry contact, 3A/240VAC
SIM Card Type: Standard SIM

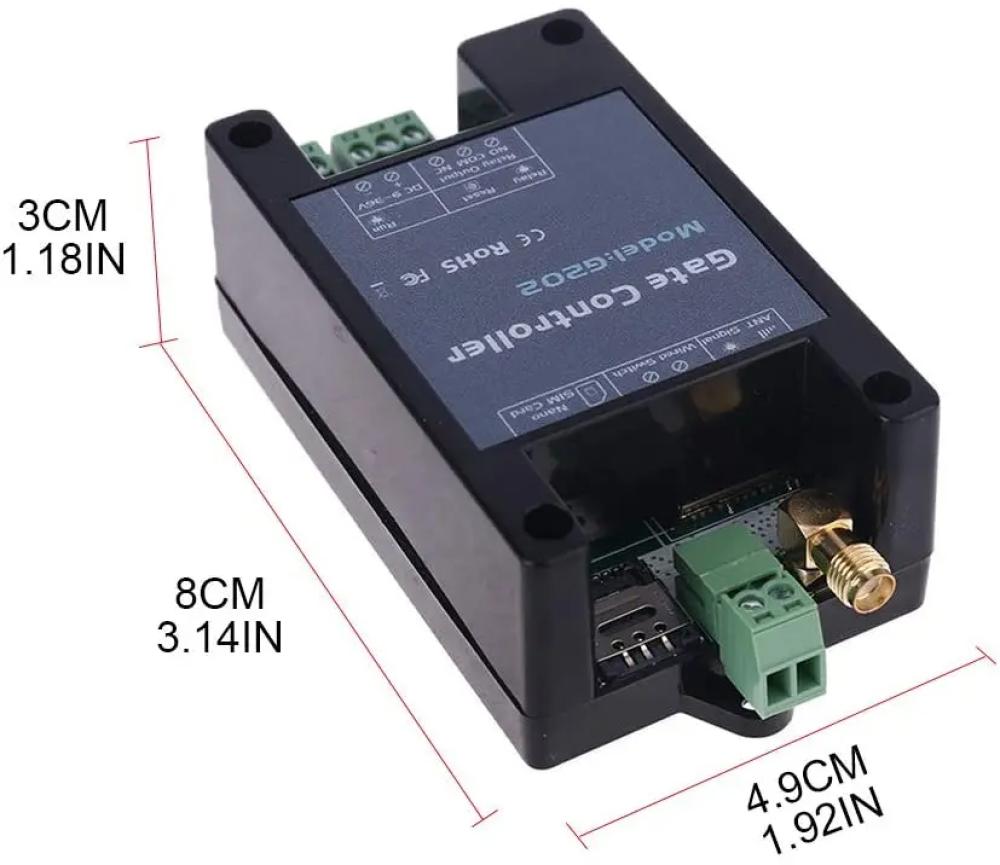

Dimensions: 8cm x 4.9cm x 3cm

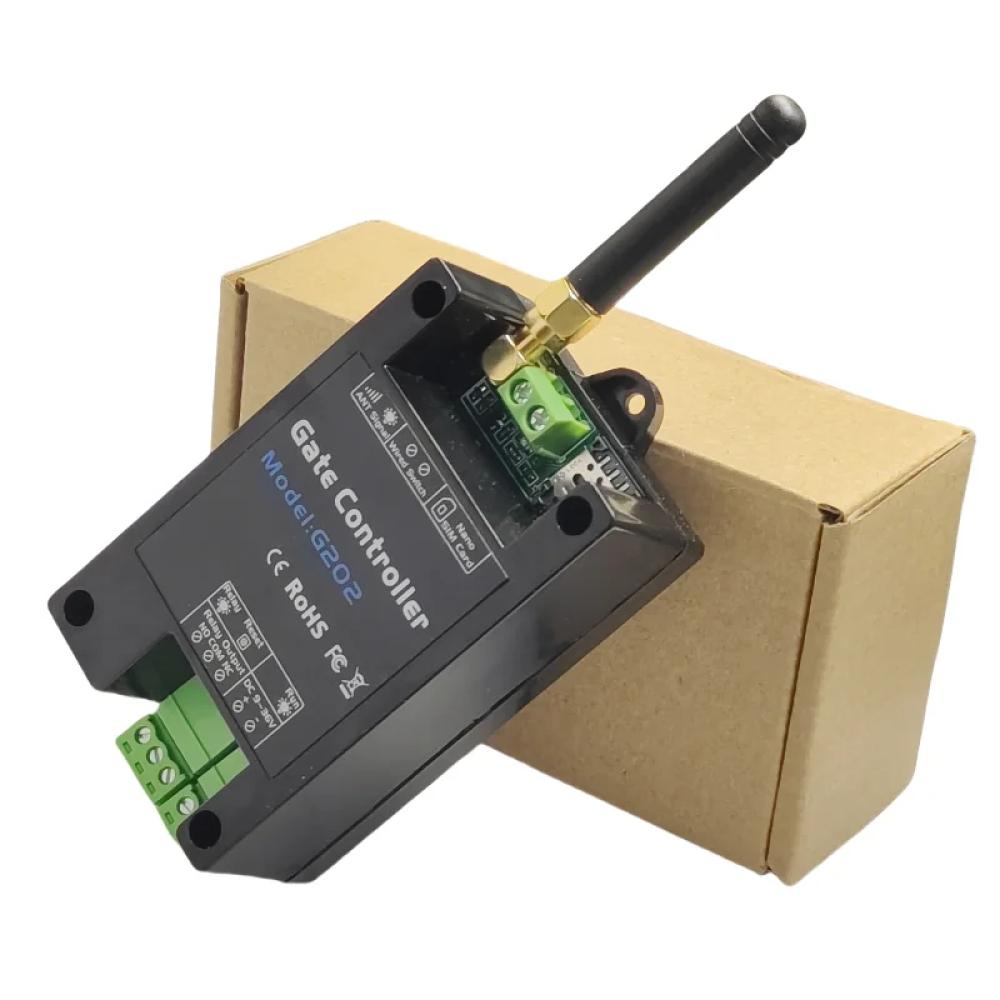

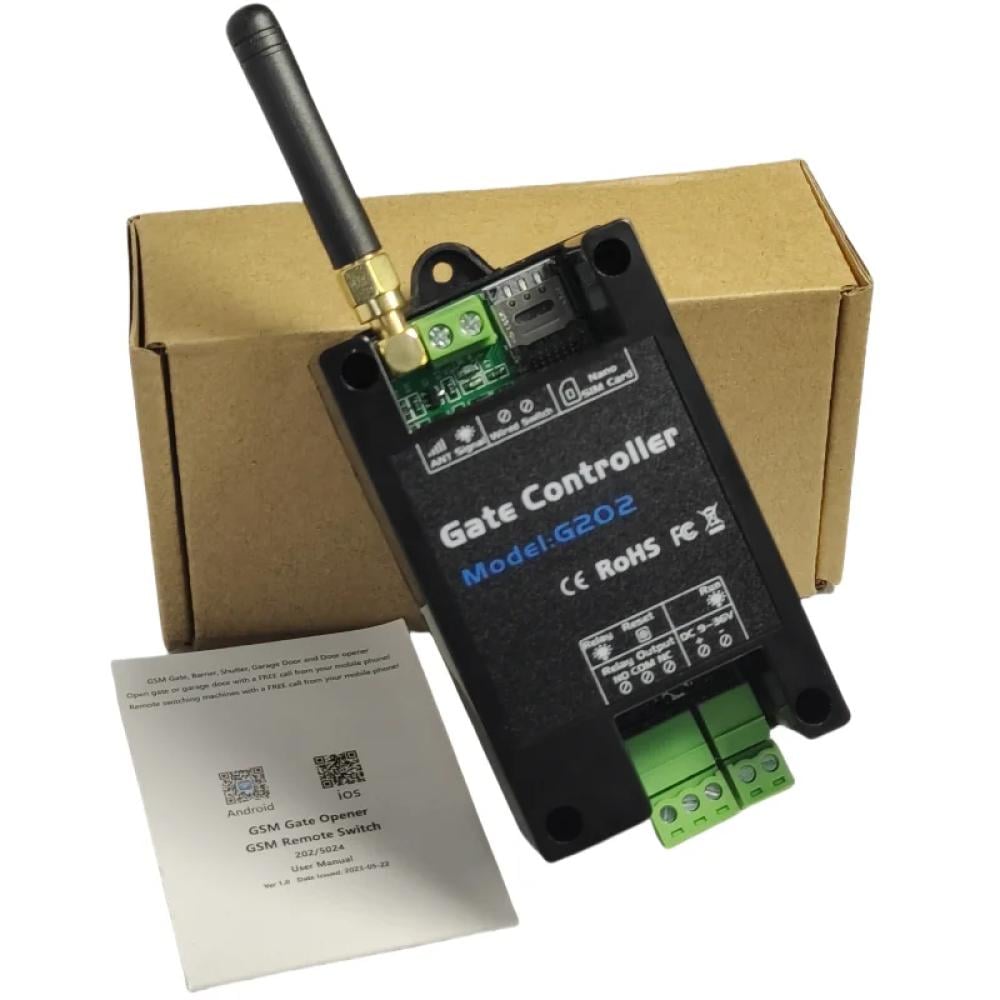

Package Contents:
1 x G202 Main Unit
1 x GSM Antenna
1 x User Manual
Keywords:
GSM Gate Opener, G202, Remote Control Switch, SMS Controller, RTU5024 Upgrade, Free Call Gate Access, Garage Door Opener, Abhir online, No Call Charge
Frequently Asked Questions (FAQs):
Q1: How can the call be "free"? How does it work?
A1: The G202 uses Caller ID for verification. When an authorized number calls, the unit sees the number, immediately triggers the gate to open, and then rejects the call before it connects. Since the call is never answered, your mobile provider does not charge you.
Q2: Do I need Wi-Fi or an internet connection for this to work?
A2: No. The G202 works entirely on the GSM cellular network, making it the perfect solution for remote locations like farms, isterahas, or areas with no internet.
Q3: What kind of SIM card should I use?
A3: You need a standard-sized 2G SIM card. Before inserting it into the G202, you must first disable the PIN code using a regular mobile phone.
Q4: Is it secure? Can anyone call my gate to open it?

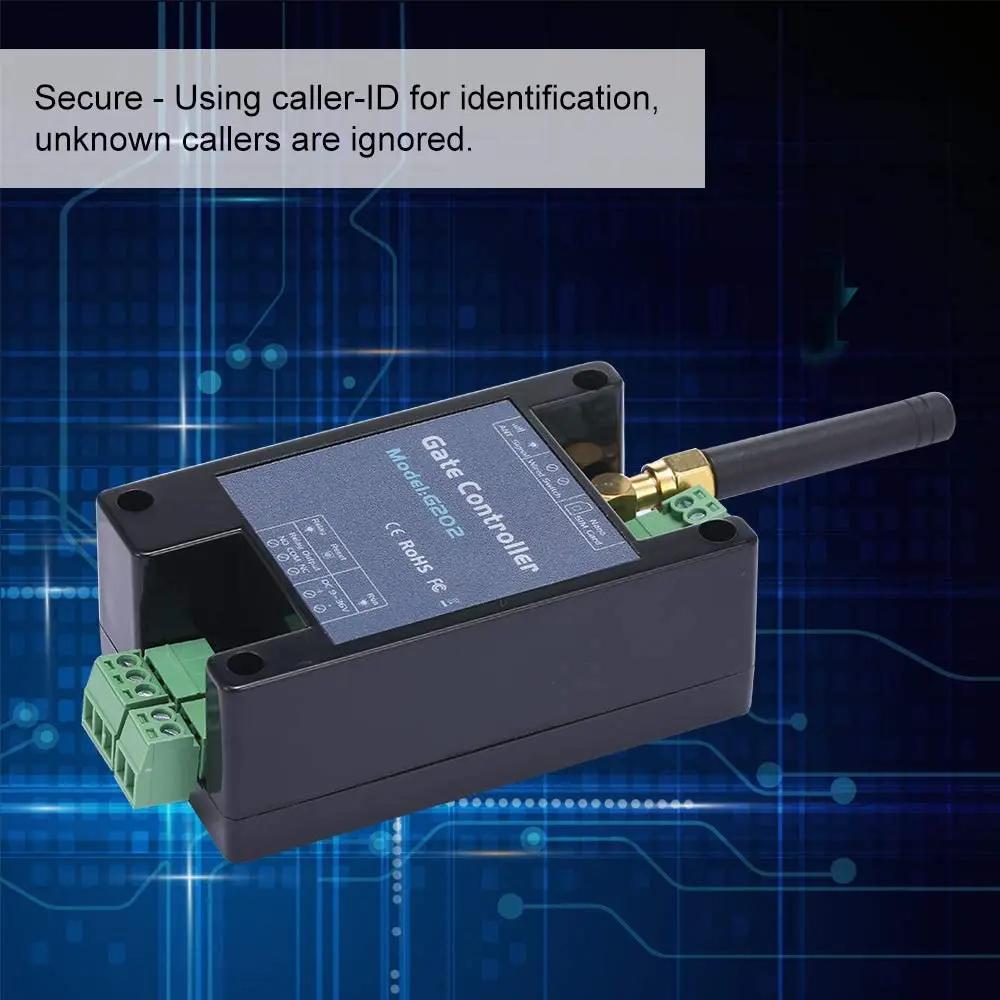

A4: It is very secure. The device will ignore all calls from unknown numbers and will only respond to calls from the phone numbers that you have specifically authorized in its memory.
Q5: How many people can I allow to open the gate?
A5: You can authorize up to 200 different phone numbers, making it ideal for everything from a single-family home to a small residential compound or office.
How to Connect (Electrical):
- Power: Connect a DC power supply (9-36V) to the power input terminals.
- Gate/Garage Control: Connect the two "Relay Output" terminals to the "push-button" or "manual switch" terminals on your gate or garage door opener's control board.
- Antenna: Screw on the included GSM antenna for the best possible cellular reception.
