The Abhir Bluetooth Controller – A "Hard-Wired" Approach to Wireless Gate Automation
By Abhir Technical Team
In the crowded market of smart home "gadgets," it is rare to find a device that prioritizes industrial engineering over flashy, cloud-dependent features. Most smart garage openers today act as simple WiFi bridges, leaving your home security at the mercy of a remote server and a spotty internet connection.

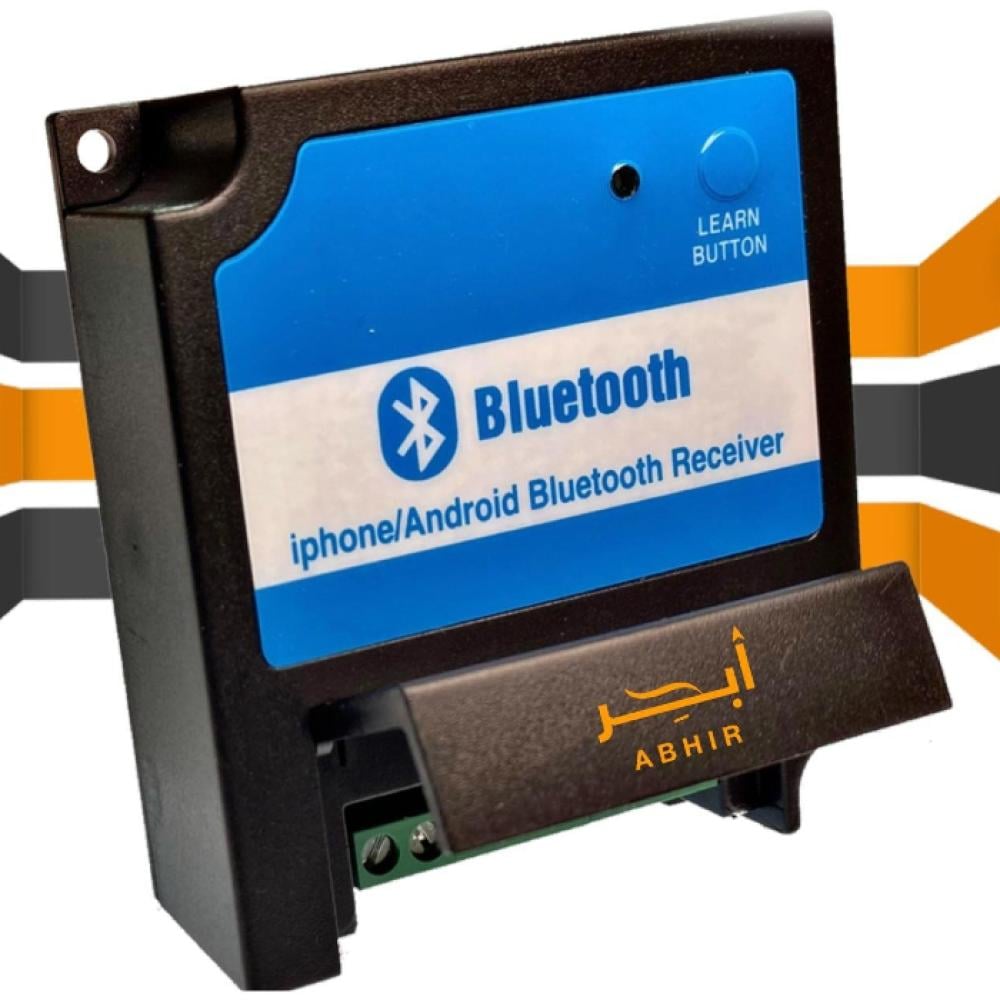

The Abhir Smart Bluetooth Receiver takes a different approach. It is not a gadget; it is a retro-fit control module designed with a specific philosophy: Local Security, Industrial Reliability, and Universal Compatibility.
We tore one down to see how it works,
why it supports over 3,400 different motors, and if it truly solves the "Villa Connectivity" problem.
Level 1: The Silicon & The Science
Under the Hood: A Dual-MCU Architecture

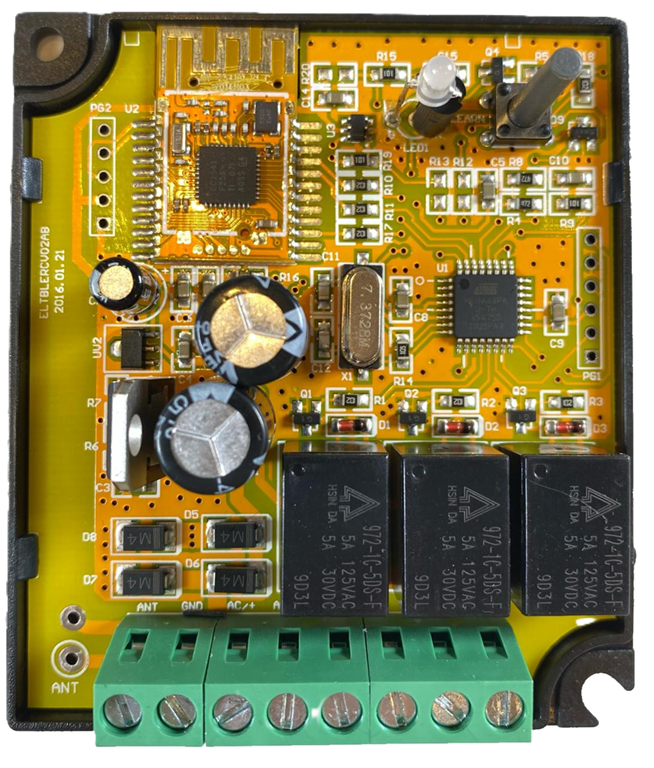

When we cracked open the casing, we didn't find the typical all-in-one cheap WiFi chip. Instead, the PCB reveals a sophisticated Dual-Microcontroller Unit (Dual-MCU) design. This is "Practical Electronics" 101: separate your communication logic from your operational logic.

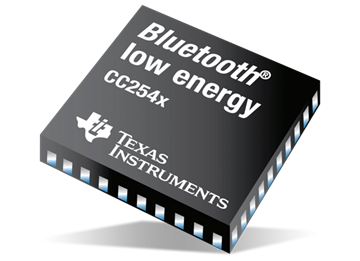

- The Comm Center (TI CC2541): The heavy lifting of wireless communication is handled by a Texas Instruments CC2541 System-on-Chip (SoC). This chip is a beast in the Bluetooth Low Energy (BLE) world. It handles the complex frequency-hopping algorithms required to maintain a stable connection in the noisy 2.4GHz spectrum.
- The Logic Brain (Atmel ATmega48PA): Sitting next to it is an Atmel industrial microcontroller.
This chip has one job: safety.
It interprets the commands from the Bluetooth chip and executes the physical relay triggers.
- Precision Timing: We noticed a 7.3728 MHz Crystal Oscillator on the board.
For the tech-savvy, this is a specific frequency chosen to generate standard UART baud rates with 0.00% error. This means the communication between the Bluetooth chip and the Logic chip is mathematically perfect, preventing the "hangs" and "glitches" common in cheaper devices.
The Privacy Protocol:
Because this device uses a direct Bluetooth 4.0 P2P (Point-to-Point) connection, your data never touches the internet. The 50 User IDs (MAC Addresses) are stored in the device's non-volatile EEPROM memory. There is no cloud server to hack. If you aren't standing in front of the gate with an authorized phone, that gate isn't opening.
Level 2: The Universal Interface compatible with 3400+ Models
How One Device Controls (Almost) Everything
The standout feature of the Abhir unit is its compatibility claim: 3,400+ models. How is this possible?
It comes down to the universal language of gate automation: The Dry Contact Signal.
Whether you have a 1990s Genie, a modern LiftMaster, a heavy-duty Zamil rolling shutter, or an Italian CAME sliding gate, they all have a "Manual Switch" input on their control board. This input waits for a simple electrical pulse to trigger movement.
The "Tri-State" Relay Advantage:
Most smart openers are "Single Channel" devices—they function like a single button (Toggle: Open/Close). The Abhir unit is different. It is equipped with Three Independent Relays connected to three distinct output wires:
* Wire 6 : The OPEN Command.
* Wire 7 : The STOP Command.
* Wire 8 : The CLOSE Command.
This topology is critical. Rolling Shutters (Shutter Doors) and industrial gates often require a specific "Stop" signal to function safely. A standard single-button WiFi opener simply cannot operate them. The Abhir unit can, making it the "Swiss Army Knife" of gate controllers.
Level 3: The User Experience & The "Villa Solution"
Installation and Real-World Use
Technically superior hardware is useless if it’s a nightmare to install. Here is where the Abhir system shifts from "Engineering Product" to "Consumer Solution."
The "Villa" Connectivity Problem:
In the Middle East, homes (Villas) are often built with thick reinforced concrete and have perimeter walls 20+ meters from the main house. WiFi signals simply die before they reach the main gate.
* The Fix: Bluetooth doesn't need your router. It connects directly from your phone to the receiver. With a range of up to 30 meters, you can trigger the gate as you pull into the driveway, with zero latency (lag).
The "Concierge" DIY Service:
Installation anxiety is real. "What if I wire it wrong?"
Abhir has solved this with a unique support model:
- Snap: You open your motor box and take a photo of the confusing terminal strip.
- Send: You WhatsApp the photo to their support team.
- Solve: Their engineers digitally mark YOUR photo with arrows: "Red wire here, Blue wire here."
They effectively write a custom manual just for your garage.
The Ecosystem:
The software suite is surprisingly robust, offering 6 dedicated apps across iOS, Android, and Windows. Whether you want a simple "One Big Button" interface for your dad or a "Dashboard" to control the Main Gate, the Garage, and the Office Barrier from a single screen, the software adapts to the hardware.
Verdict:
For users tired of "Cloud Offline" errors and complicated WiFi setups, the Abhir Bluetooth Controller offers a refreshing return to reliability. It uses industrial-grade silicon to do one thing perfectly: Open your door, every single time.
