Aqara Dual Relay Module T2 - Smart Zigbee Controller for Garage Doors, Gates, Lights & More
Unlock the Hidden Smart Potential in Your Home with Abhir-Online. Do you have traditional lights, powerful fans, or a reliable electric garage door that you wish could join your smart home ecosystem? Abhir-Online is proud to introduce the Aqara Dual Relay Module T2 – a powerful, compact controller that works silently behind the scenes to bring your trusted wired appliances into the modern, automated world.
One of the most popular uses for the T2 is transforming your existing electric garage door or property gate into a smart, remotely controlled access point. By wiring the T2 into your opener's control panel, you can open and close it from anywhere using the app, all while keeping your original remotes and wall buttons fully functional. This is just one example of how this versatile module can add intelligence and convenience throughout your home.
The Aqara T2 is a dual-channel controller that connects to your compatible Aqara Hub to bring smart capabilities to a wide array of AC and DC powered devices. It supports various modes, including a safe interlock mode for motors, and even monitors energy consumption. With its compact design and compatibility with Apple HomeKit, Alexa, and Google Home, the Dual Relay Module T2 from Abhir-Online is your key to a smarter, more responsive home.
For more ways to build your automated home, explore the full [Aqara Smart Controllers collection] at Abhir-Online.
💡 The Technology (in Simple Terms):
- What is a Relay? Think of a relay as a smart, remote-controlled button. A low-power Zigbee signal from your hub tells the T2 relay to make an electrical connection (like "pressing a button"), safely turning your connected light or motor on and off.
- Zigbee 3.0: This is the wireless language the T2 uses to talk to your Aqara Hub. It's incredibly fast and stable, and creates a "mesh" network where devices can relay signals, ensuring reliable performance without congesting your home's Wi-Fi.
📲 The App & Platform Experience:
The T2 is controlled via a compatible Aqara Hub and the Aqara Home app, unlocking powerful integrations with platforms like Apple HomeKit, Alexa, and Google Home for unified control and automation.
Product Features and Advantages:
- Versatile 2-Channel Control ✌️:
Independently control two separate circuits, such as two light groups or a bi-directional motor for a garage door or blinds.
- Broad AC/DC Compatibility ⚡:
Works with both high-voltage AC (lights, fans) and low-voltage DC devices, offering unmatched flexibility for your projects.
- Motor & Interlock Mode 🔄:
Features a dedicated interlock mode that prevents both channels from being on at once, perfect for safely controlling garage doors and other motors.

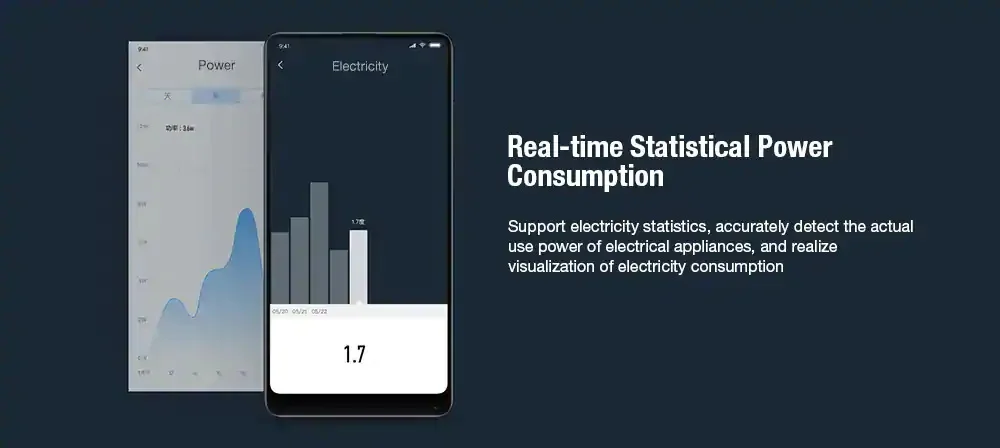

Track the real-time and historical energy consumption of connected devices directly in the Aqara Home app.
- Enhanced Safety Features 🔥:
Equipped with overheat and overload protection to safeguard your home and appliances.
Remembers the last state of the relays, so your devices can return to their previous state after a power outage.

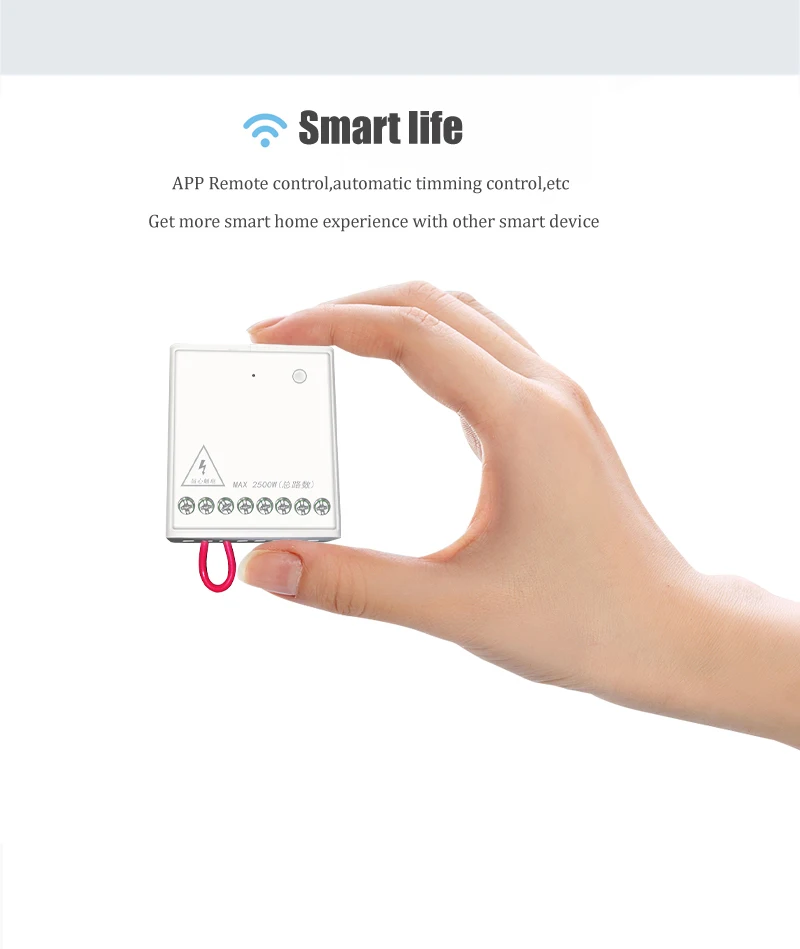

- Compact & Easy to Mount 📦:
Extremely small design fits into standard wall boxes, and includes a DIN rail accessory for clean installations.
Compatibility:
-Requires a compatible Aqara Zigbee 3.0 Hub (e.g., M2, M1S, E1 - sold separately). Wireless Protocol: Zigbee 3.0.
-Supported AC Loads: Max 10A total; Incandescent Lamp (Max 2500W), LED/CFL Lamp (Max 250W), Motor (Max 1/4 HP).
-Supported DC Loads: 24-30V (Max 10A/300W Resistive), 30-60V (Max 1A/60W Resistive).
Applicable Applications and Practical Usage Scenarios:
- Smart Garage & Gate Control 🚗: Use the T2's interlock mode to safely replicate the function of your garage door's wall button. Wire it into your existing motor opener to open and close your garage door or property gate from the app or with voice commands. Pair it with an Aqara Door & Window sensor on the door itself to get real-time status updates and peace of mind.
- Smart Lighting: Automate existing ceiling lights, spotlights, or outdoor lighting without replacing your switches. • Motorized Blinds & Curtains: Control window blinds, shutters, or projection screens. ◦ Appliance Control: Make small wired appliances smart (e.g., fans, electric heaters within load limits). ▪ DC Device Automation: Control DC-powered devices such as LED strips or small pumps.
Product Physical Specifications:
Brand: Aqara
Model: DCM-K01 (Dual Relay Module T2)
Color: White
Dimensions: 45.5mm × 48mm × 24mm
Product Weight: [ 82g]
Input Parameters (AC): 100-250V~, 50/60Hz
Input Parameters (DC): 24-60V⎓
Operating Temperature: -10°C to +40°C
Operating Humidity: 0% – 95% RH, non-condensing
Package Contents:
1 x Aqara Dual Relay Module T2 (Model: DCM-K01)
1 x User Manual
1 x DIN Rail Accessory
1 x Jumper Wire
Complete Your Setup (Frequently Bought Together):
- Aqara Hub M2: The essential Zigbee 3.0 gateway needed to power this relay module.
- Aqara Door & Window Sensor: The perfect companion for your smart garage project to know if the door is open or closed.
Helpful Resources & Videos:
[Link to the "How to Automate Your Garage Door with Aqara T2" Video]
[Link to Official Aqara T2 Installation Video]
Keywords:
Aqara T2, Dual Relay Module, Zigbee Relay, Smart Garage Door Opener, Gate Controller, DCM-K01, In-Wall Controller, Light Control, Motor Control, DC Relay, Home Automation, HomeKit, Abhir online
Frequently Asked Questions (FAQs):
Q1: Can I use this T2 module to make my existing electric garage door smart?
A1: Yes, this is one of the most popular uses for the T2. By wiring it to your garage door opener's button terminals and using the "interlock" safety feature in the app, you can trigger your door to open and close remotely. We recommend pairing it with an Aqara Door & Window Sensor to also know if the door is open or closed.
Q2: Do I still need an Aqara Hub for this to work?
A2: Yes, absolutely. The Dual Relay Module T2 uses the Zigbee 3.0 protocol and requires a compatible Aqara Hub to connect to your Wi-Fi network and be controlled by the app.
Q3: Can I still use my existing garage door remote or wall button?
A3: Yes. The T2 module is wired in parallel with your existing controls, so your original remotes and wall buttons will continue to work as they always have. You simply gain the additional ability to control it smartly.
Q4: What is "interlock mode"? A4: Interlock mode is a safety feature that ensures only one of the two relay channels can be on at a time. This is essential for controlling motors like garage doors, as it prevents sending "open" and "close" commands simultaneously.
Q5: Does this module require a neutral wire?
A5: Yes, for most standard AC applications, a neutral wire is required for the module to be powered correctly. Please ensure one is available in your installation box.
🛠️ Installation & Setup Insights from Abhir-Online:
⚠️ Safety First:
This device connects to electrical systems and must be installed by a qualified electrician or a person with expert knowledge of electrical wiring. Always turn off power at the circuit breaker before installation.
Prerequisites: A compatible Aqara Hub and a neutral wire in the installation box (for most AC applications).
Simplified Steps (for your electrician):
Power Off: De-energize the circuit at the breaker.

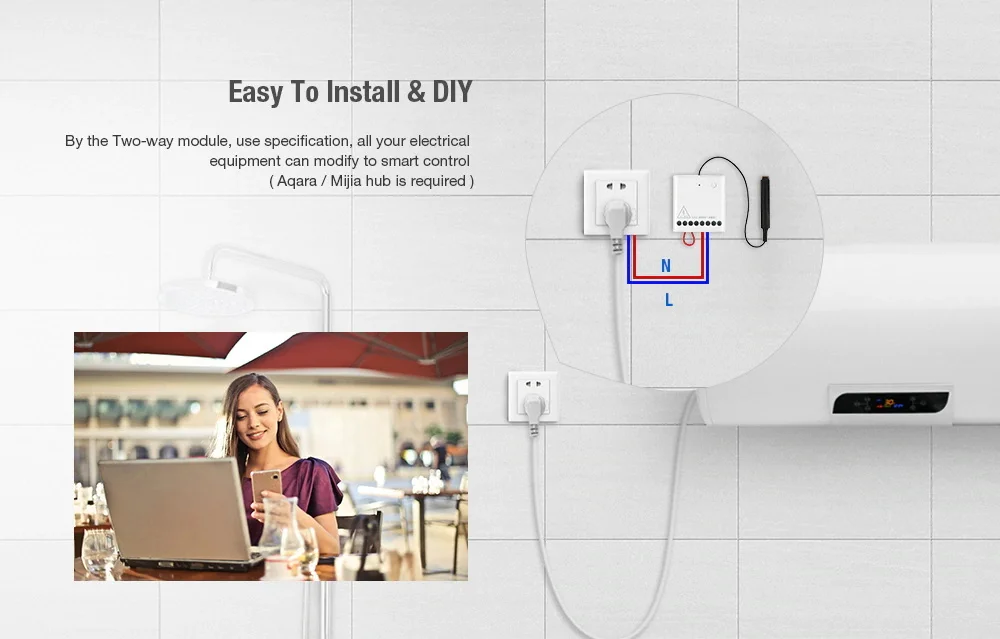

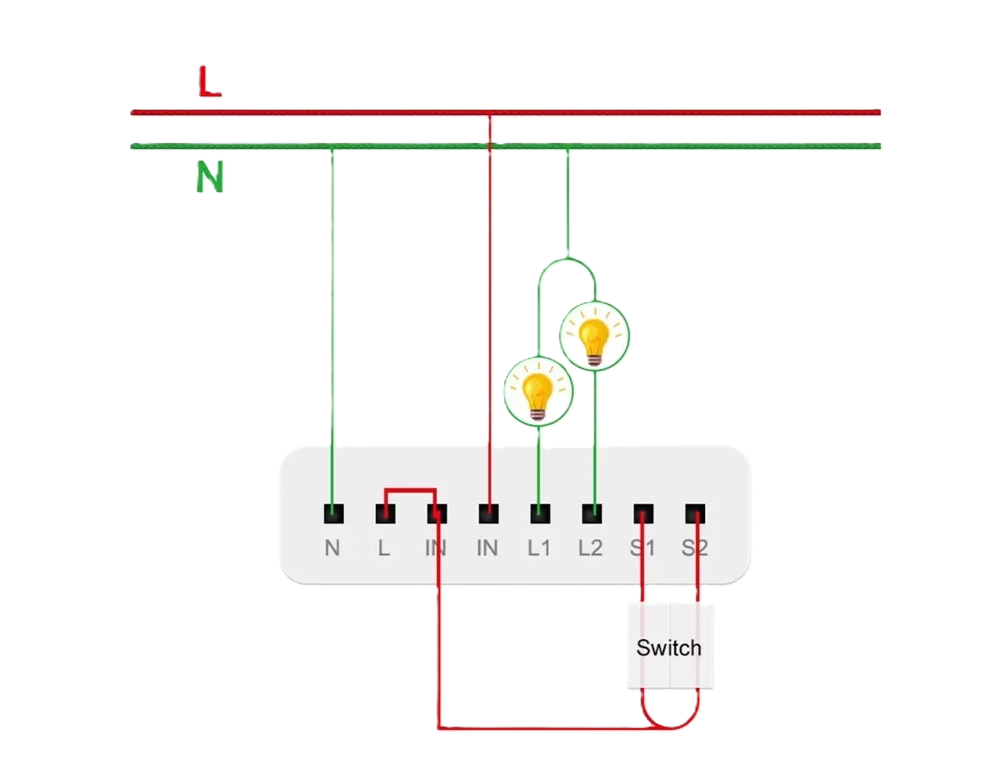

Wire It: Connect the module according to the specific diagram for your use case (e.g., standard lighting, or dry contact for a garage door opener) in the user manual.
Install & Power On: Fit the compact module inside the wall/junction box and restore power.
Pair with Hub: Use the Aqara Home app to add the Dual Relay Module T2 to your Zigbee network and configure its mode (e.g., On/Off or Interlock).
