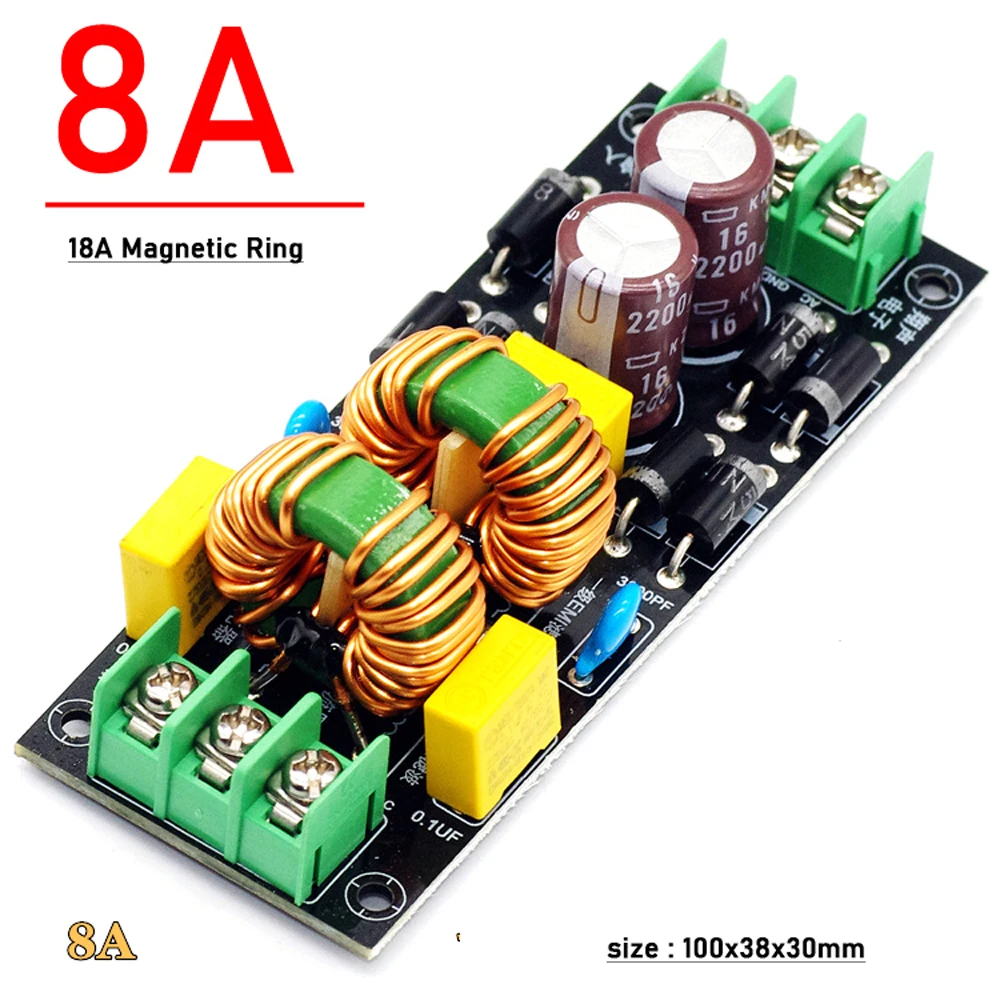

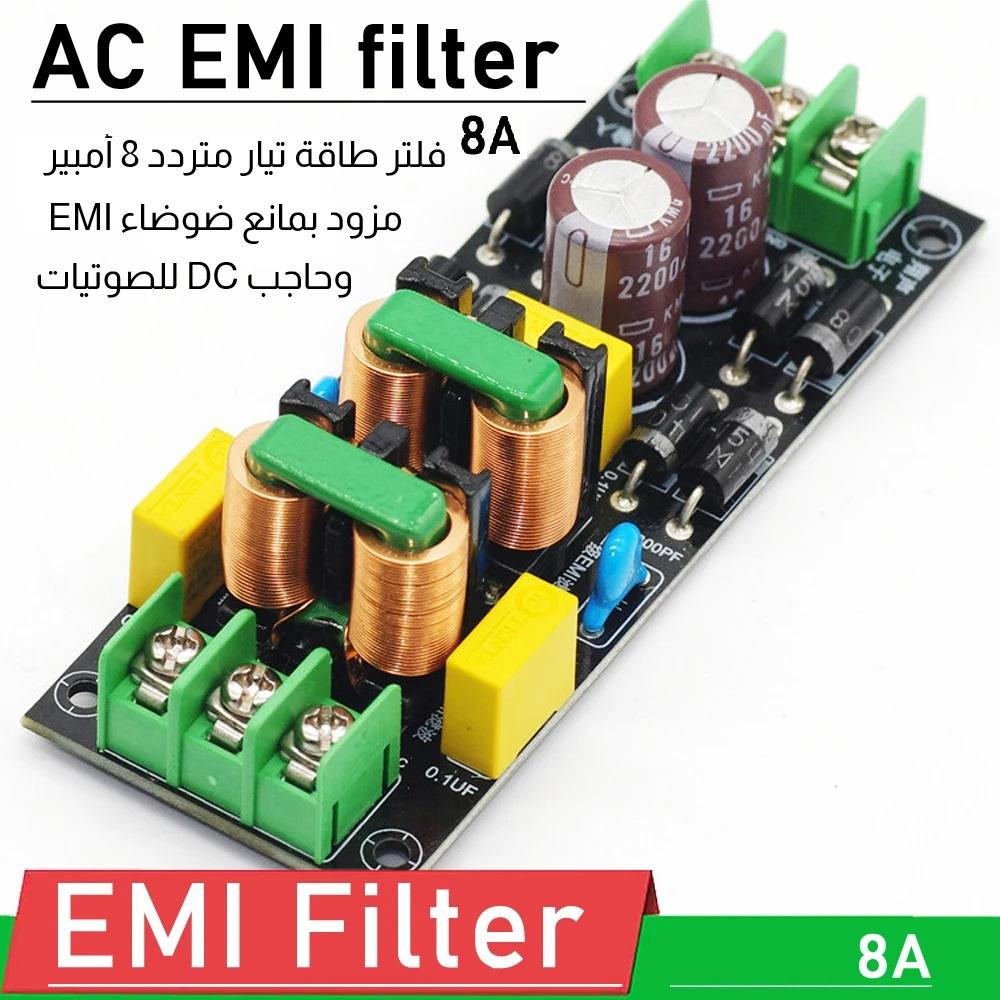

8A AC Power Line Filter | EMI Noise Suppressor & DC Blocker for Audio
Elevate your home audio experience with this advanced 8A AC Power Filter from Abhir-online, specifically designed for audiophiles seeking the purest sound. This module tackles two major power line issues that degrade audio quality:
- EMI/RFI Noise: A two-stage compound electromagnetic interference (EMI) filter aggressively suppresses high-frequency noise and radio frequency interference (RFI) commonly found on the AC mains supply. This cleans up the power feeding your sensitive audio components.
- DC Component Blocking: An integrated RFI DC blocking circuit effectively eliminates any unwanted DC voltage present on the AC line, often caused by other household appliances. This prevents the annoying transformer hum in amplifiers and stops transformer core saturation, allowing your equipment to perform optimally.
By providing purified AC power (110V-250V), this filter significantly improves sound clarity, enhances resolution, lowers the noise floor for a quieter background, and eliminates transformer hum. Built with high-quality FR4 PCB and high-performance flat copper wire inductors, it supports loads up to 8 Amps (approx. 1760W). A crucial upgrade for amplifiers, DACs, pre-amps, and entire Hi-Fi systems available now at Abhir-online.
Features and Highlights:
- Filters AC mains power (110V-250V) specifically for high-fidelity audio equipment.
- Rated for continuous loads up to 8 Amps (approx. 1760W @ 220V).
- Advanced two-stage compound EMI filter suppresses mains noise (EMI/RFI).
- Integrated RFI DC blocking circuit eliminates DC voltage on the AC line.
- Prevents audible transformer hum and core saturation in audio components.

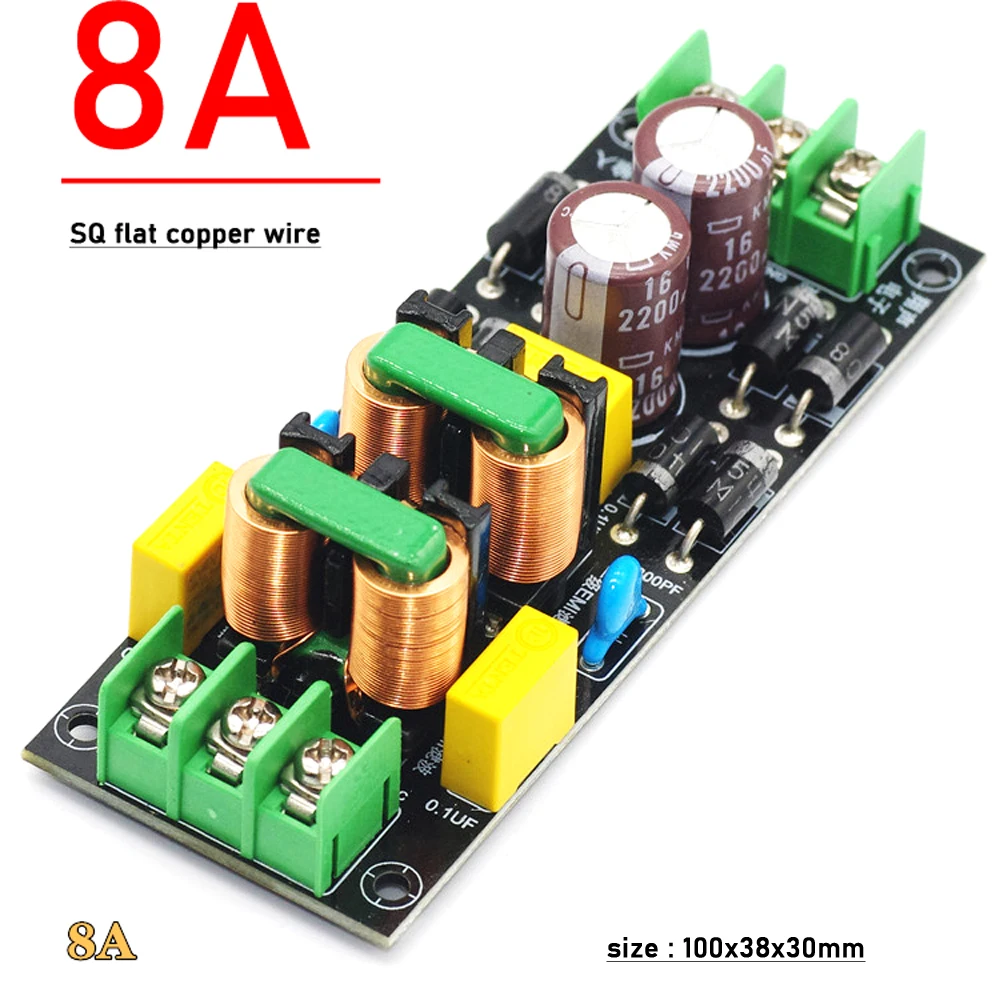

- Utilizes high-performance flat copper wire common mode inductors.

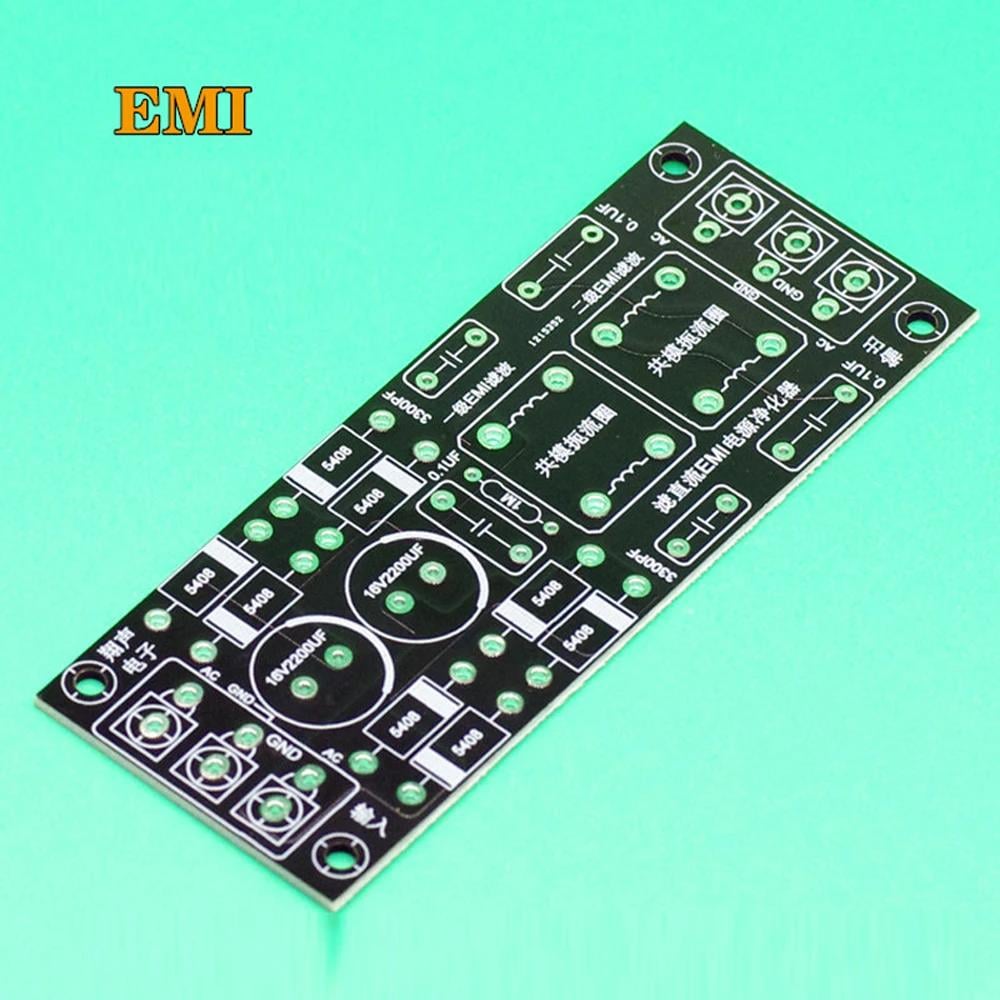

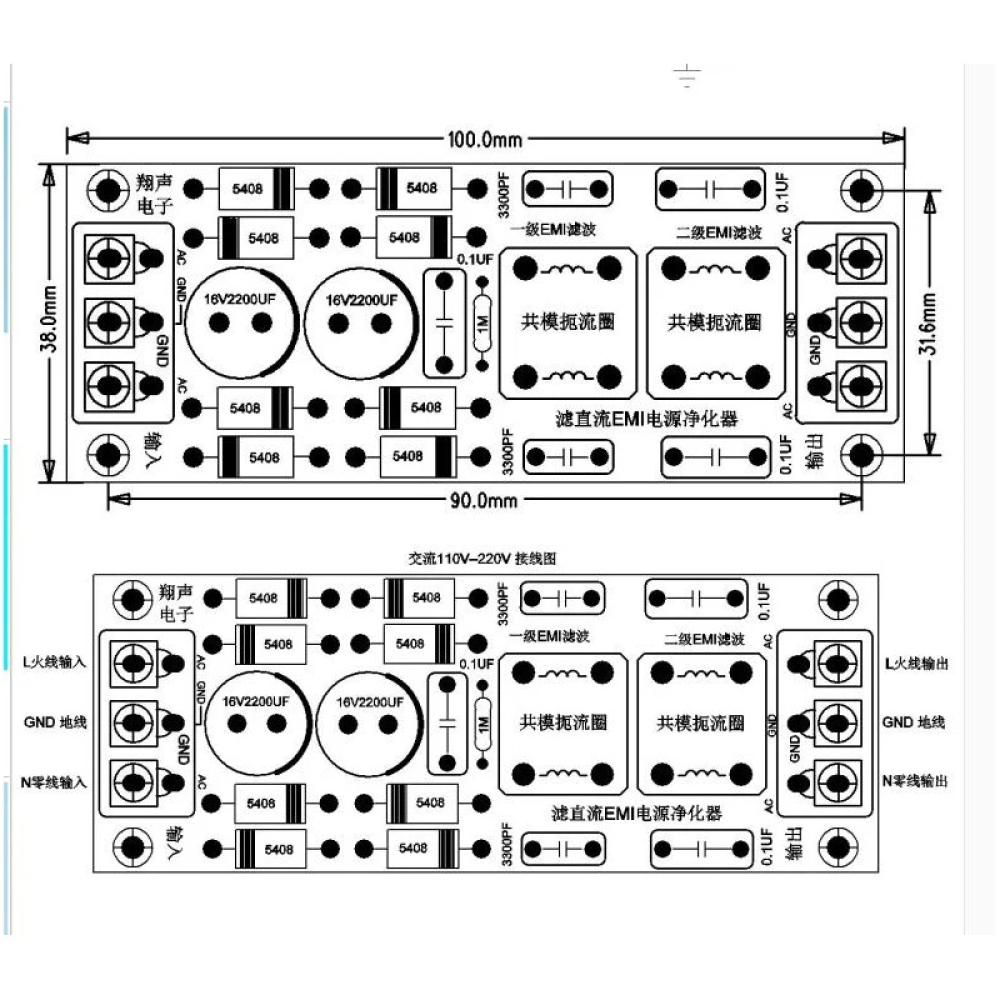

- Durable FR4 PCB (100x38mm) construction for longevity.
- Standard 3-wire input and output screw terminals (Line, Neutral, Ground).
Benefits and Advantages:
- Noticeably improves audio clarity, detail retrieval, and soundstage imaging.
- Completely eliminates or drastically reduces transformer hum for silent operation.
- Creates a "blacker" background, allowing subtle musical details to emerge.
- Protects sensitive audio transformers from performance-degrading saturation.
- Ensures a stable and clean power foundation for optimal audio equipment performance.
- A cost-effective and high-impact upgrade for any serious home audio system, offered by Abhir.
Applicable Applications and Practical Usage Scenarios:
- Powering integrated amplifiers, pre-amplifiers, and power amplifiers.
- Providing clean power to DACs (Digital-to-Analog Converters) and phono stages.
- Improving power quality for CD players, network streamers, and turntables (with external AC power supplies).
- Essential upgrade for high-fidelity (Hi-Fi) home audio and dedicated listening rooms.
- Ideal for any AC-powered audio device (up to 8A) affected by mains noise or transformer hum.
Compatibility:
Targeted towards audiophiles, home theater enthusiasts, and discerning audio equipment owners in Saudi Arabia and the GCC looking to maximize sound quality by addressing AC power line issues.
Product Physical Specifications:
- PCB Material: FR4 Glass Fiber (High Quality)
- Dimensions (L x W x H approx.): 100mm x 38mm x 35mm (Height estimate - needs verification)
- Weight (approx.): 0.2 kg (Needs verification)
- Input/Output Connectors: 3-Pin 7.62mm Pitch Screw Terminals (L, N, G)
General specifications and technical specifications:
- Filter Type: AC Power Line Filter with EMI Suppression and DC Blocking
- Circuit Topology: RFI DC Blocking Circuit + Two-Stage Compound EMI Filter
- Input Voltage Range: Single-Phase AC 110V - 250V
- Maximum Continuous Load Current: 8A
- Maximum Load Power (approx. @220V): 1760W
- Inductor Type: Flat Copper Wire Common Mode Chokes
Special instructions and safety precautions:
- Warning: Installation involves mains voltage and should only be performed by qualified individuals following all electrical safety regulations.
- Ensure correct and secure wiring for Line (L), Neutral (N), and Ground (G) connections at both input and output terminals. Incorrect wiring is extremely dangerous.
- Verify the input AC voltage is within the 110V-250V operating range.
- Strictly adhere to the 8A maximum load current limit. Overloading may cause damage or fire hazard.
- The module must be installed within a suitable, protective, non-conductive enclosure to prevent accidental contact with live parts.
- A reliable Ground connection is mandatory for safety and for the filter to perform optimally.
Package contents:
1 x 8A AC EMI Power Filter Module with DC Blocking Circuit
