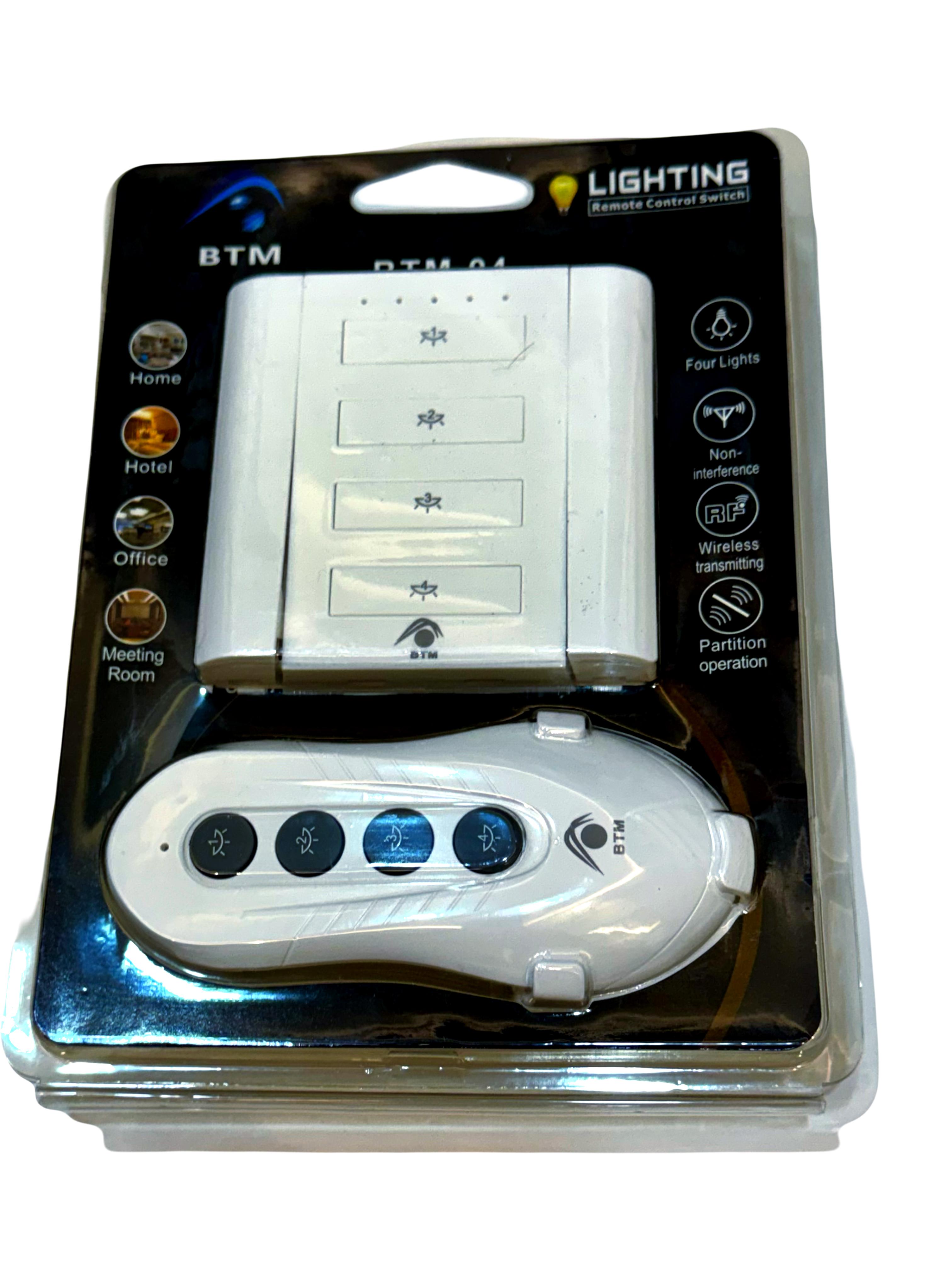

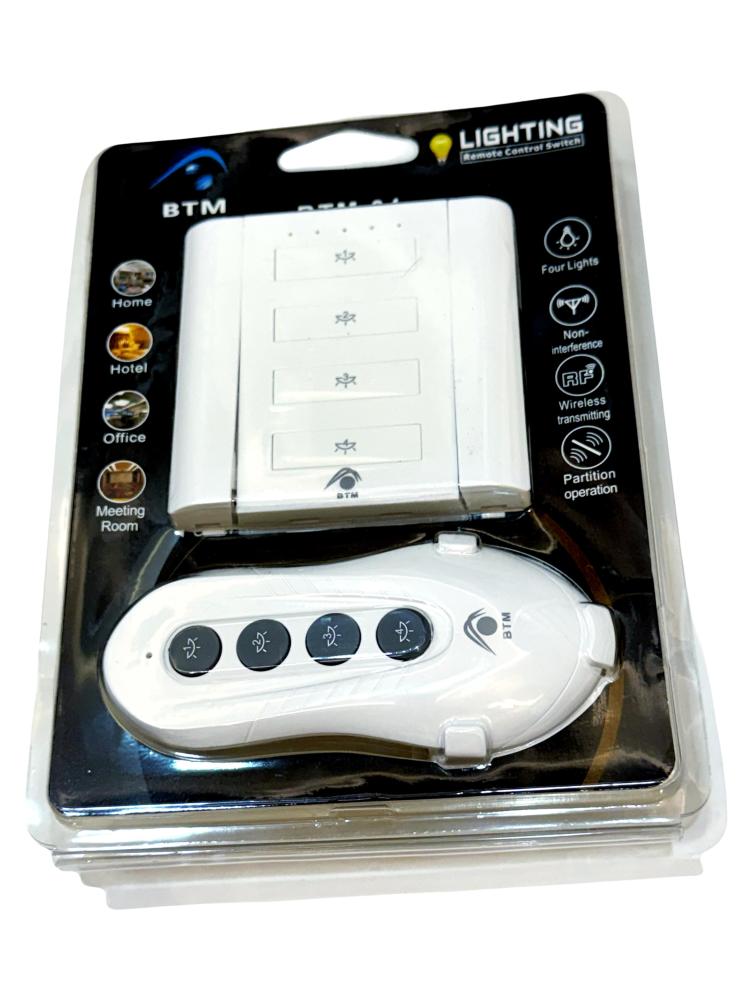

Abhir-Online BTM-04 4-Way Wireless RF Remote Light Switch Kit (220V)
Nature does not compromise and neither should your convenience. Experience seamless control with the Pro-Connect series wireless switch from Abhir-online. While standard installations require complex wiring the BTM-04 allows you to manage four independent lighting zones from a handheld remote. Utilizing stable 433.92MHz RF technology the signal effectively penetrates walls and partitions making it ideal for modern Saudi homes or offices.
This is the ultimate upgrade for those who value a clean aesthetic and the freedom to control multiple devices without mechanical wear or expensive rewiring.
💡 The Technology (In Simple Terms)
- 4-Way RF Switching: Think of this as a digital conductor for your lights. The system uses Radio Frequency (RF) to send independent "on/off" signals to four different lighting zones simultaneously without wires.
- 433.92MHz Wireless Signal: This is a specialized, stable frequency that acts like a invisible bridge. It is designed to penetrate walls and furniture, allowing you to control lights in another room without needing a direct line of sight.
🛠️ Technical Installation & Wiring

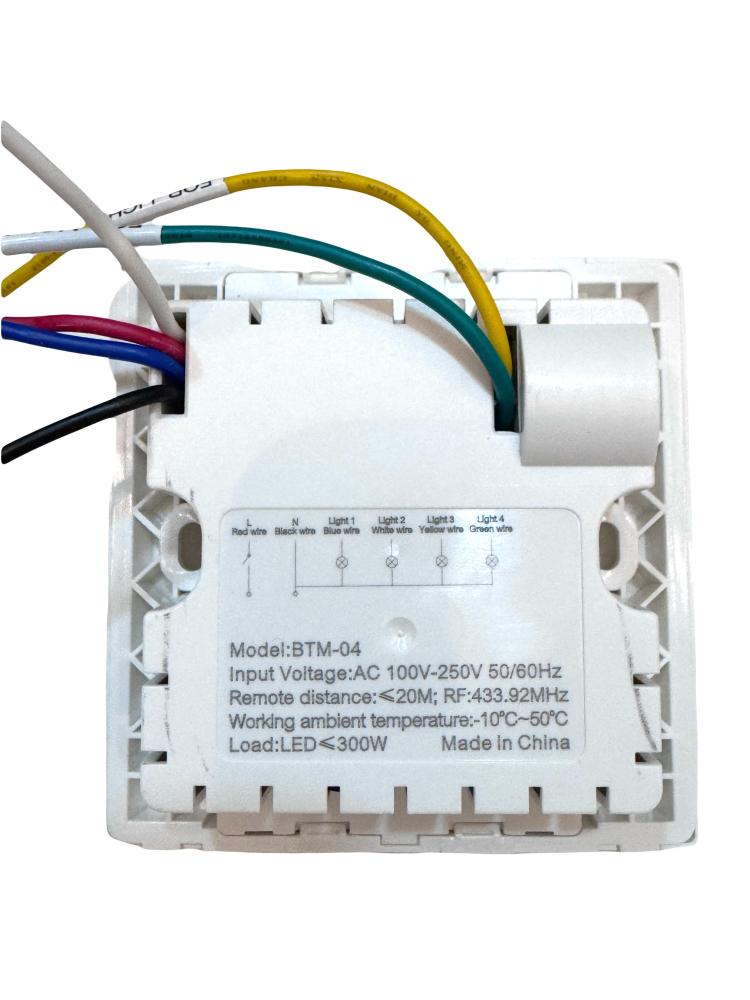

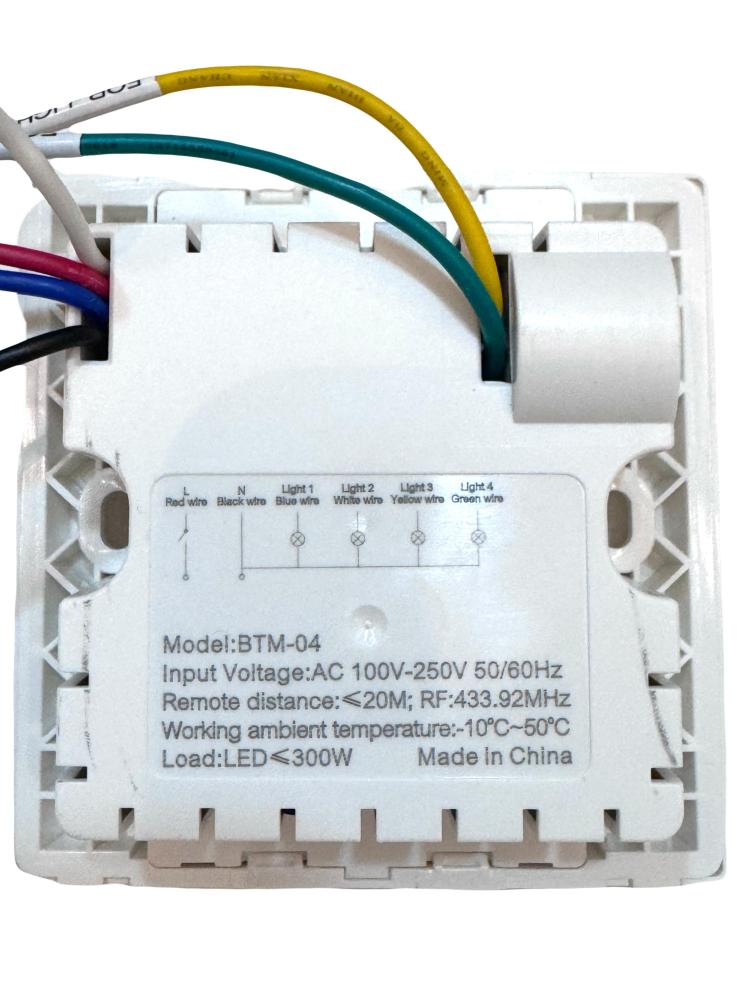

- Power Input: Connect the Red (Live) and Black (Neutral) wires to your standard AC 100V-250V mains power.
- Channel Wiring: The receiver provides four distinct output wires (Blue, White, Yellow, and Green) corresponding to Lights 1 through 4.
- Pro-Tip: For the ultimate Abhir-standard installation, ensure the receiver is placed inside a plastic wall box rather than metal to maintain maximum RF signal range and penetration.
Features and Highlights
- Partition Operation: Reliable signal transmitting that works effectively through walls and doors.
- Non-Interference Tech: Employs digital coding to ensure your remote only controls your specific lights without affecting neighbors.
- Multi-Zone Support: Manage four independent lighting circuits (up to 300W LED each) from one device.
Benefits and Advantages
- Zero Wall Damage: Avoid the cost and mess of breaking walls to run new wires for additional switches.
- Ergonomic Convenience: The remote includes a wall-mount cradle, allowing it to act as both a mobile controller and a fixed switch.
Applicable Applications and Practical Usage Scenarios
- Master Bedrooms: Control the main light, vanity lights, and bedside lamps all from your pillow.
- Office Meeting Rooms: Dim or switch between different lighting zones for presentations without leaving your seat.
- Hotel Suites: Provide guests with a premium, centralized control experience for multi-area lighting.
Market Compatibility
- Designed specifically for AC 100V-250V 50/60Hz systems, fully compliant with Saudi Arabian (KSA) and GCC electrical standards.
Product Physical Specifications

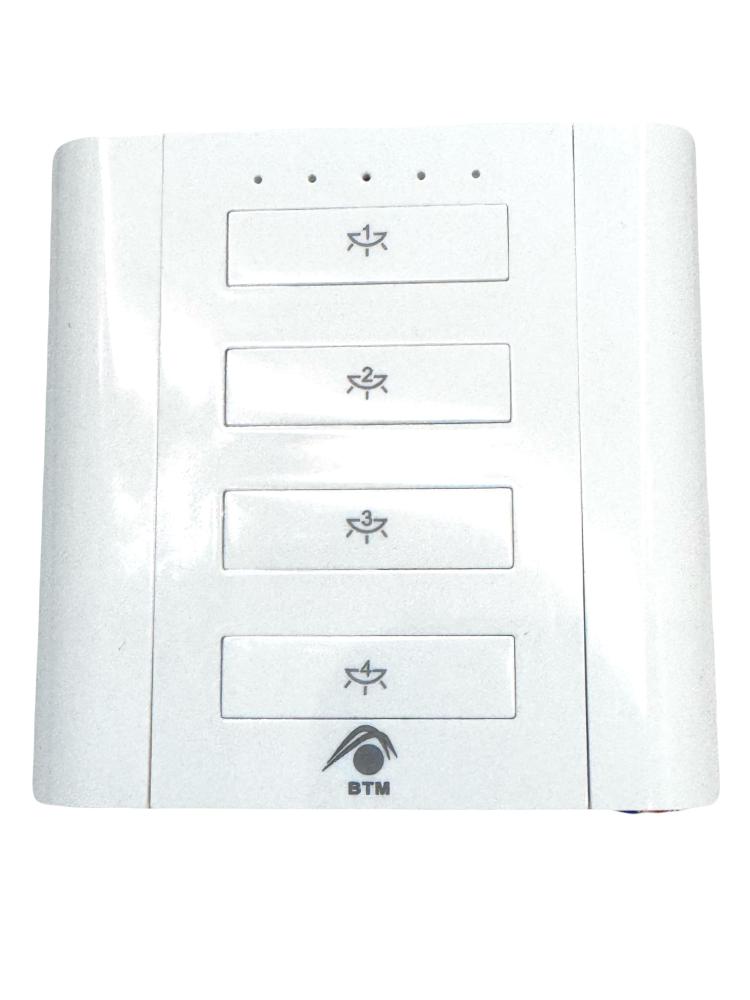

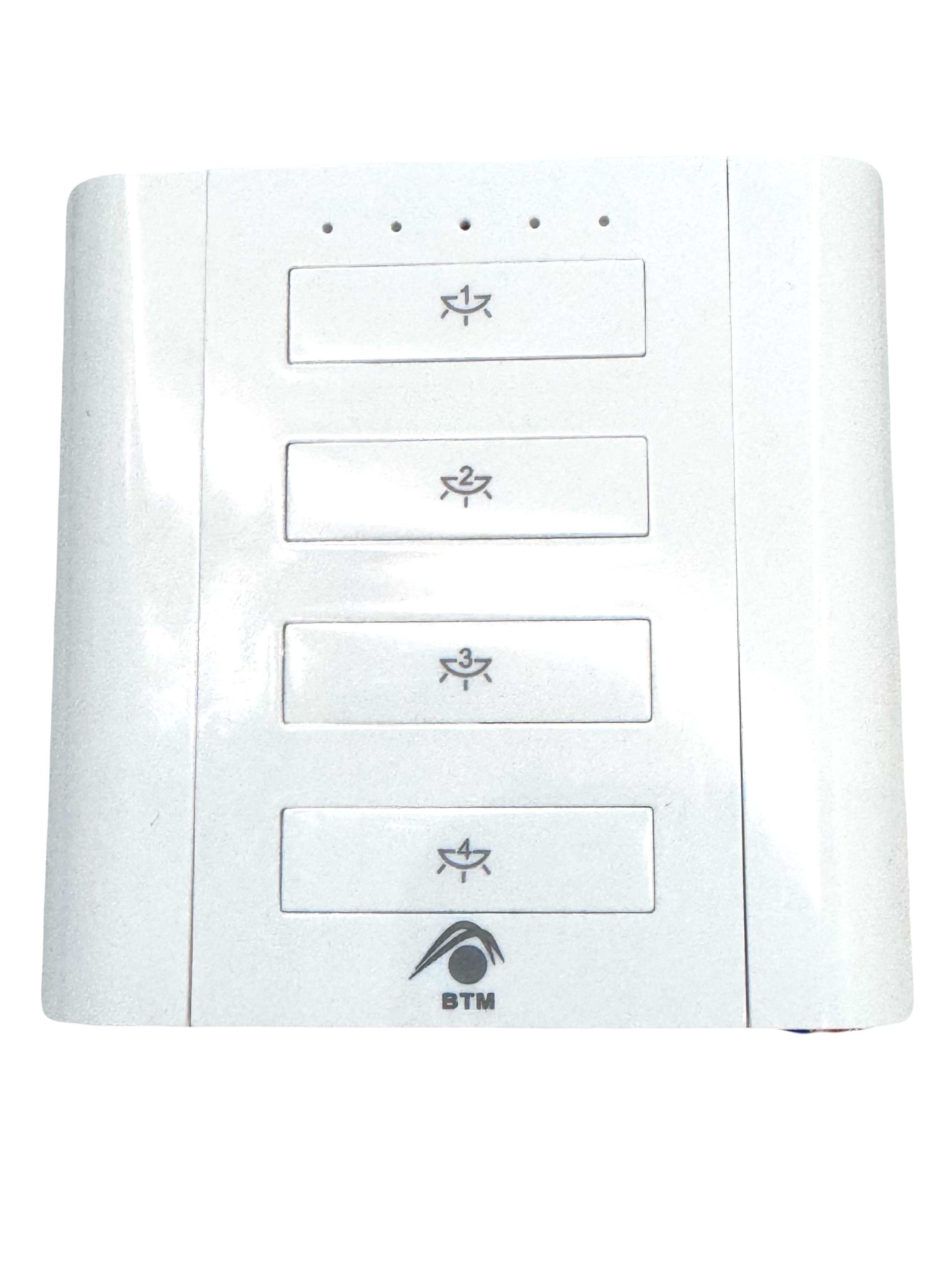

- Dimensions: Standard wall box fitment (Approx. 86mm x 86mm receiver).
- Material: High-grade, fire-retardant PC (Polycarbonate).
- Color: Pure White.
General and Technical Specifications
- Input Voltage: AC 100V–250V.
- Load Power: LED ≤ 300W per channel.
- Remote Frequency: RF 433.92MHz.
- Remote Distance: ≤ 20 Meters.
Special Instructions and Safety Precautions
- Professional Install: Installation by a qualified electrician is highly recommended to prevent electrical shock.
- Load Limits: Do not exceed 300W per channel for LED loads to protect the high-quality internal relays.

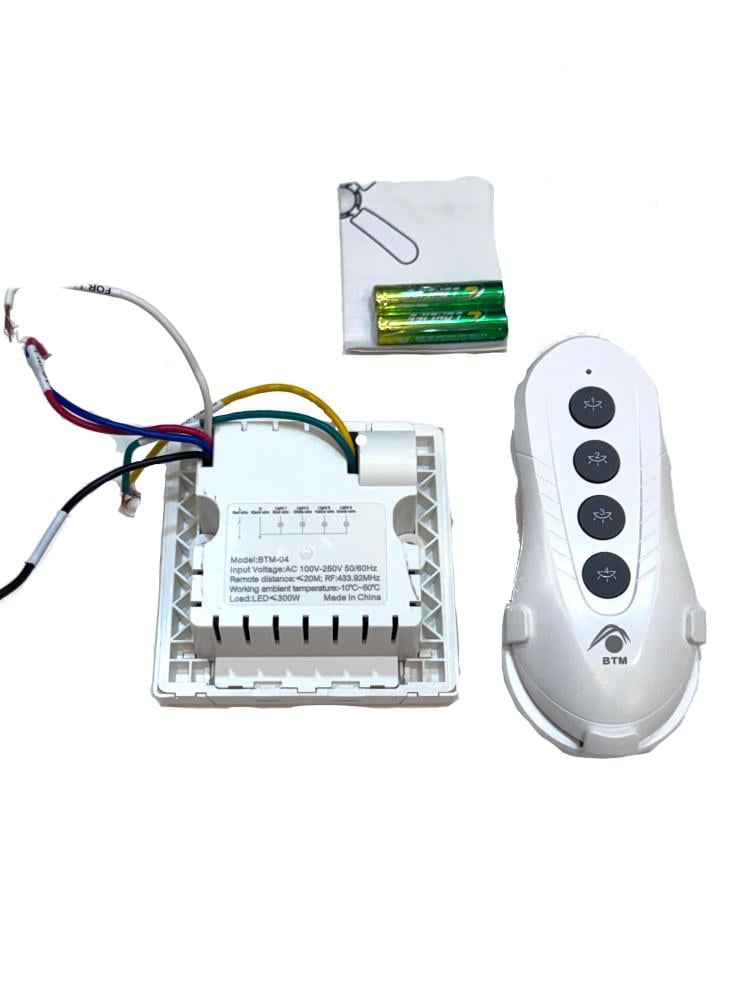

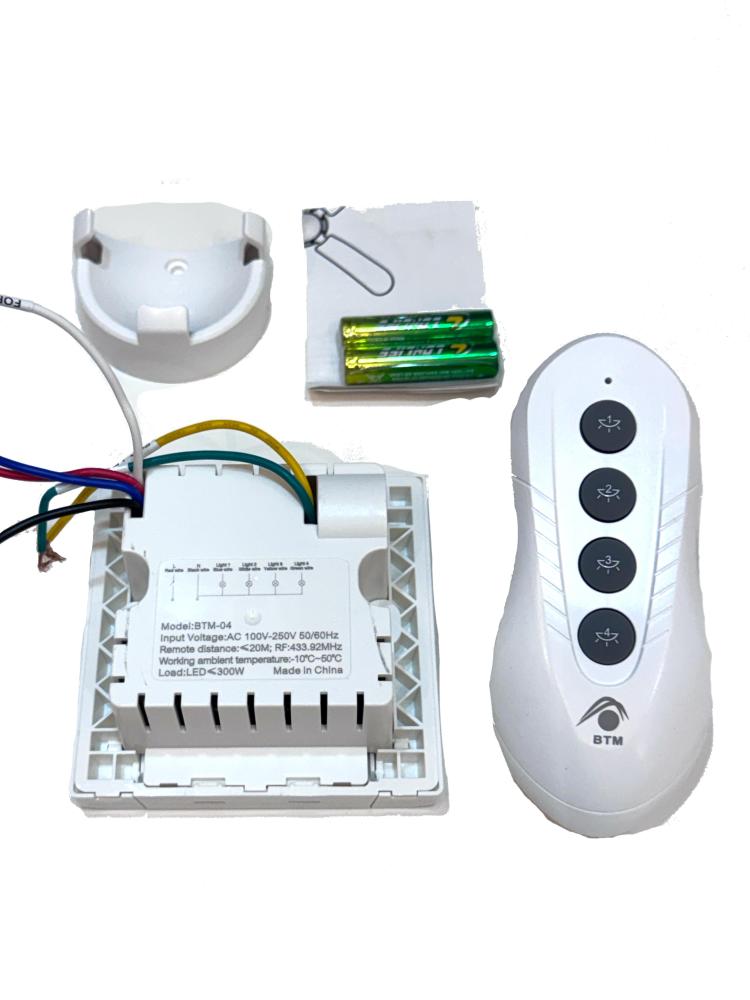

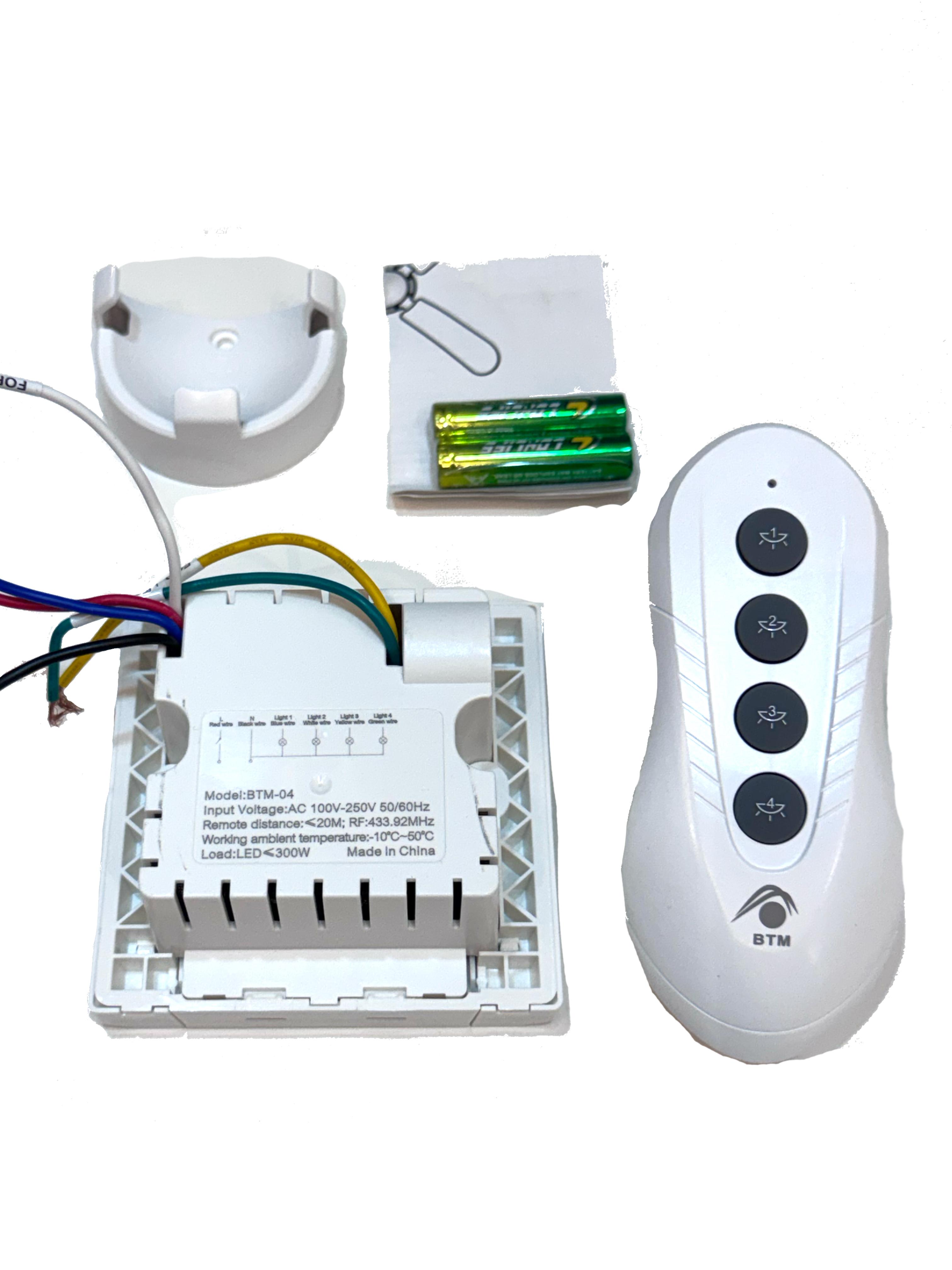

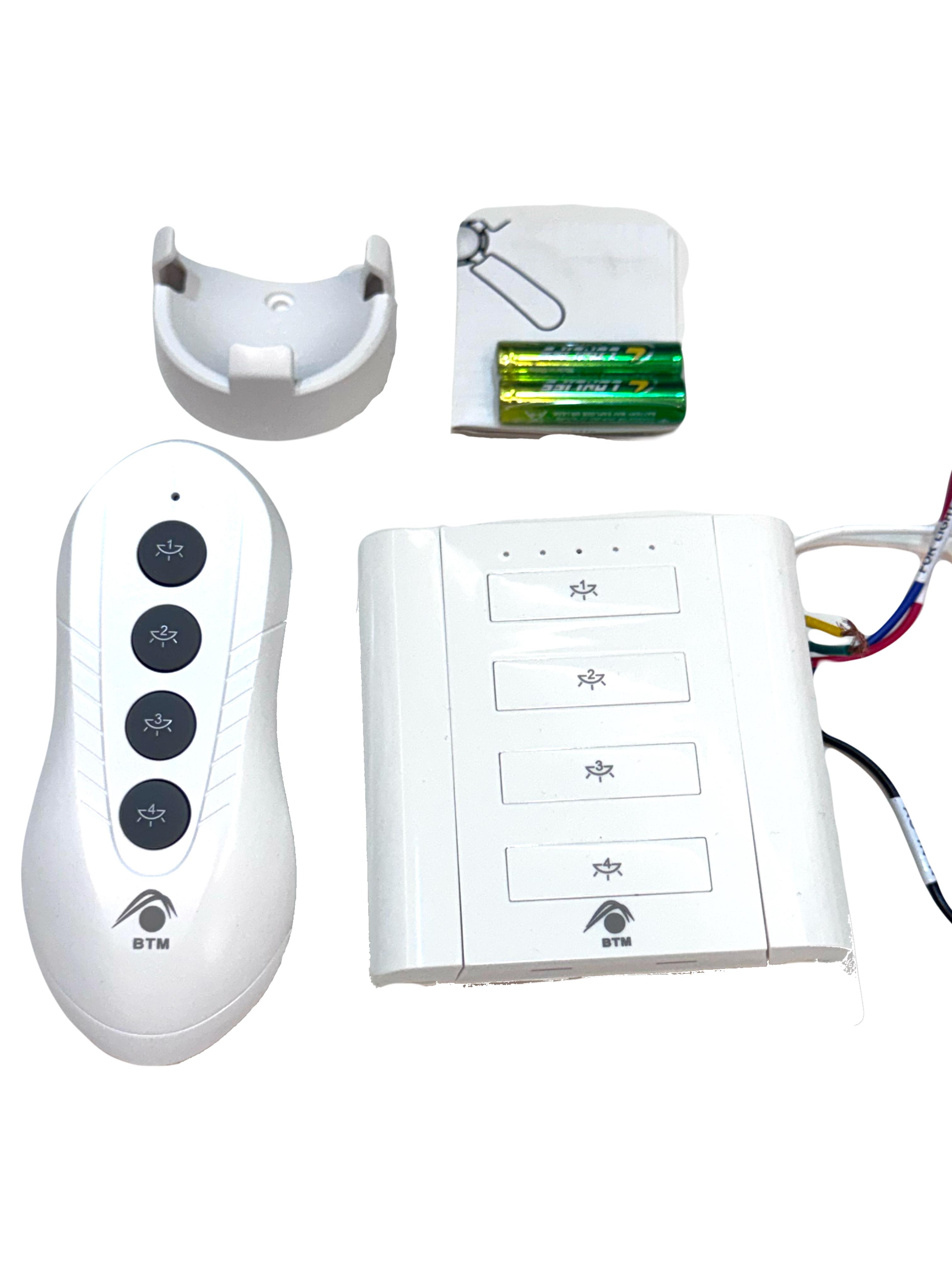

Package Contents
- 1x 4-Way Receiver Switch.
- 1x Wireless RF Remote Control.
- 1x Remote Wall Mount Cradle.
- 2x AAA Batteries.

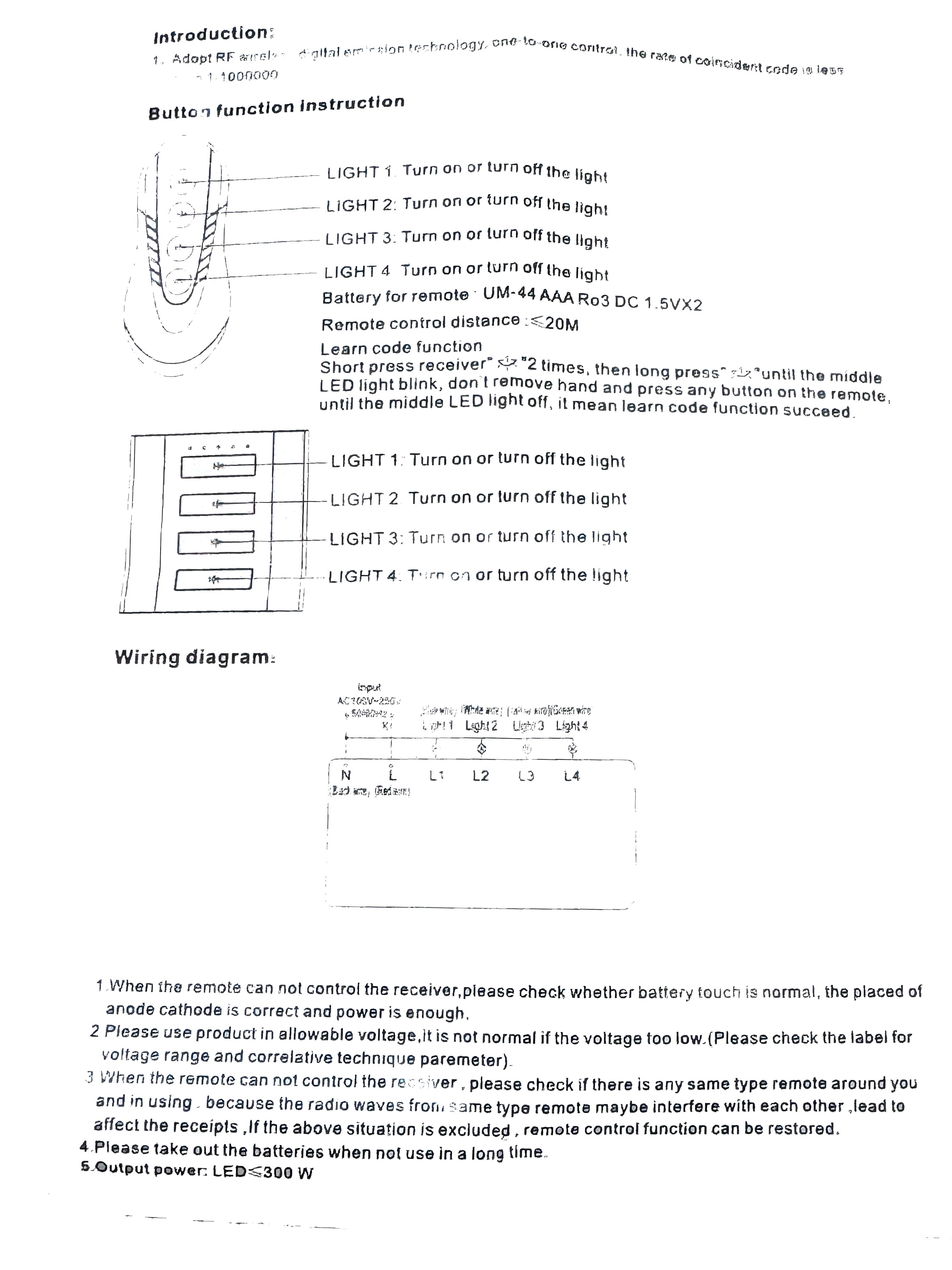

- 1x Technical Instruction Manual.
Keywords:
Wireless Light Switch, RF Remote, 4-Way Light Control, Abhir Smart Lighting, 220V Wireless Switch.
Frequently Asked Questions (FAQs)
Q: Does the signal work through walls?
A: Yes, the 433.92MHz RF signal is designed for "partition operation," meaning it can penetrate walls and doors up to a distance of 20 meters indoors.
Q: Can I control each light channel independently?

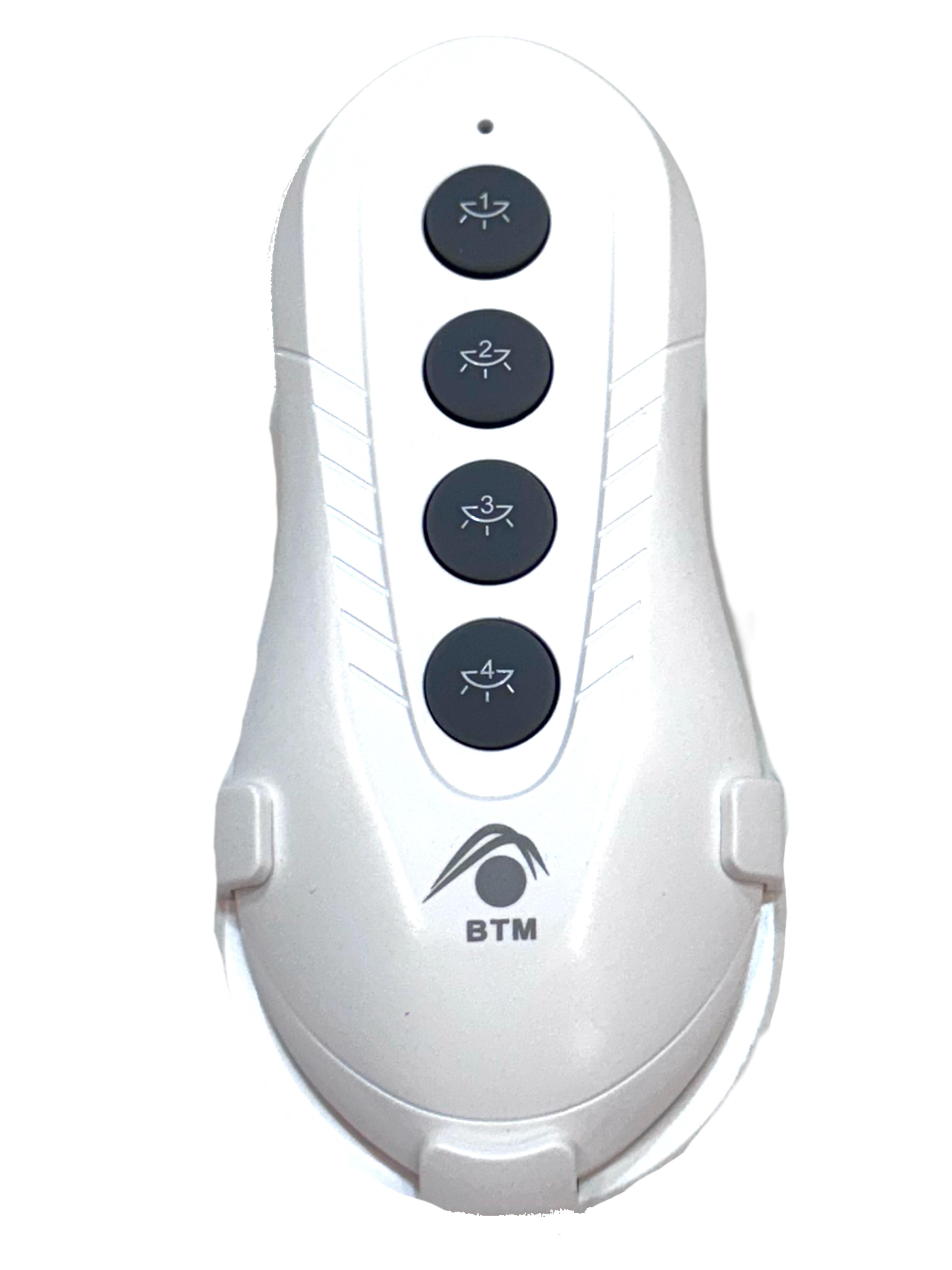

A: Absolutely. The remote features four distinct buttons corresponding to each of the four output channels on the receiver.
Q: What is the maximum wattage for LED lights?
A: Each of the four channels can support a maximum LED load of up to 300W.
Q: Is it safe for 220V systems?
A: Yes, the device is rated for a wide input voltage range of AC 100V to 250V, making it fully compatible with Saudi Arabia’s 220V–230V standard.
Q: What batteries does the remote use?
A: The remote is powered by two standard AAA batteries, which are included in the package.
