Item description
KEYSION HIFI DAC earphone Amplifier USB Type C to
3.5mm Headphone Jack audio adapter 32bit 384kHz
Digital Decoder AUX Converter

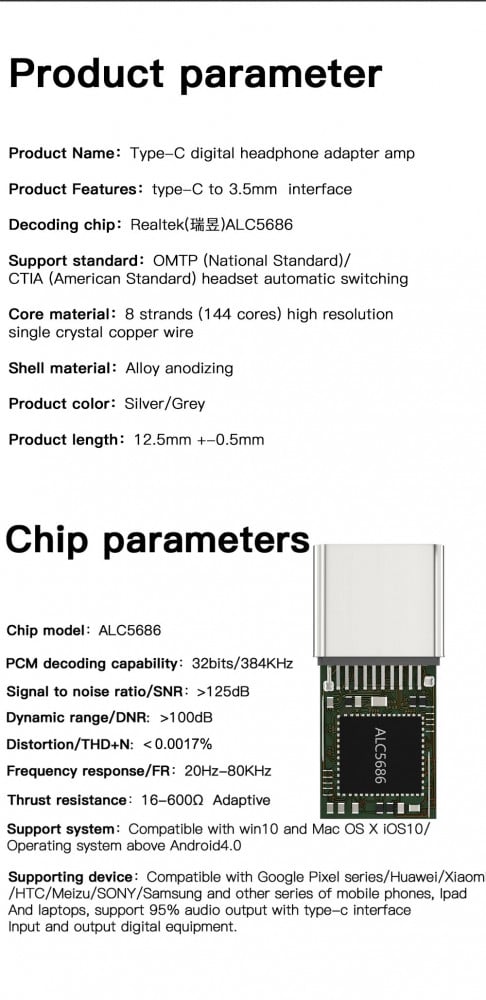

Chip Parameters
Chip model: Realtek ALC5686
DAC sampling rate: 32bits / 384KHz
Signal to noise ratio / SNR: > 125dB
Dynamic range / DNR:> 100dB
Distortion /THD + N: <0.00177%
Frequency response / FR: 20Hz-80KHZ
Output power: 16-6000 (adaptive)
High performance DAC / Pure HIFI sound quality / 60012
High impedance
Support system: compatible with win7 / 8/10 and Mac OS
XiOS10 / Android4.0 or higher
support : 98% USB TYPE-C ports for smart devices,
smartphones / tablets
For Huawei /For Xiaomi/ For Redmi / For Samsung / For
Sony / For Honor /For OPPO,, more
Product parameters:

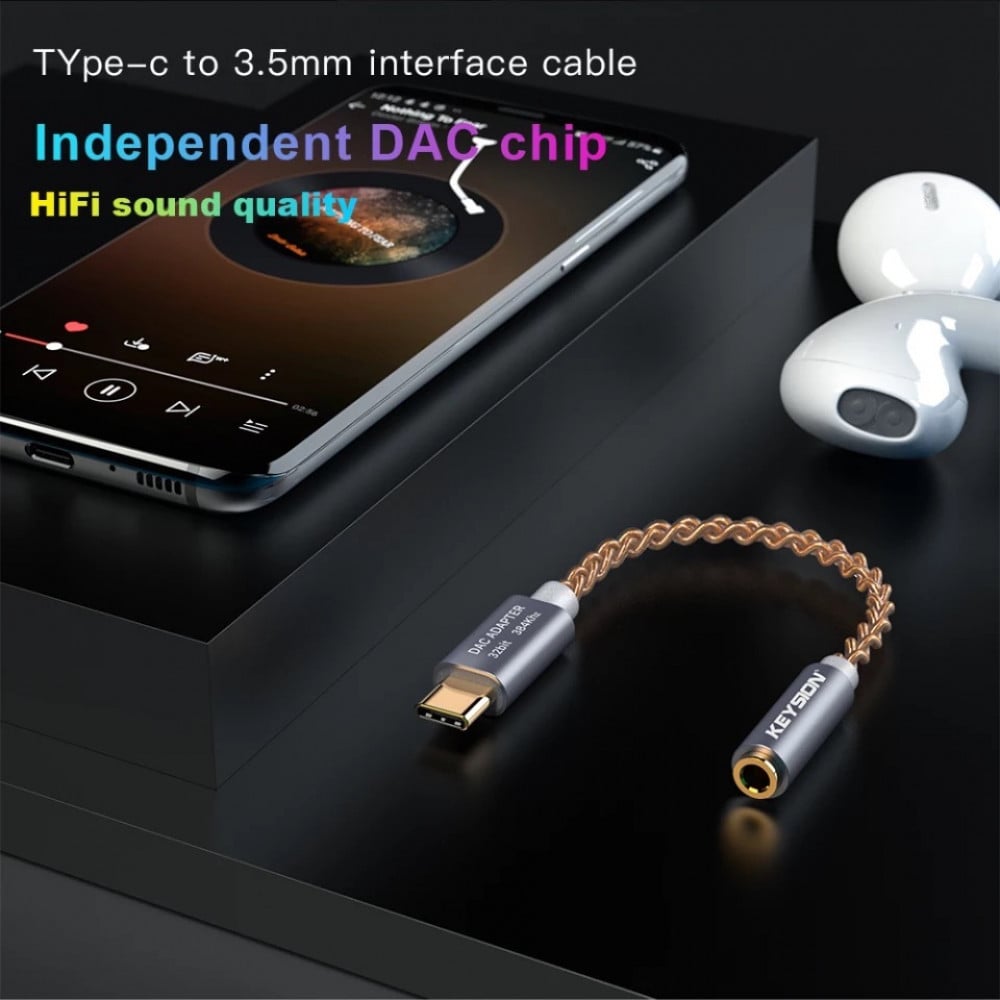

Product Name: Type-C Digital Headphone Adapter Amp
Product function: type-C to 3.5mm interface
Decoding chip: Realtek (Realtek) ALC5686
Supported standards: OMTP / CTIA Headphone automatic
switching
Core material: single crystal copper
Shell material: one-piece aluminum alloy sandblasted +
anodized
Product color: silver, gray
Product length: 13CM + -0.5mm
Product weight: 8g
