جهاز تحكم بالدخول للأبواب - لاسلكي - موجات الراديو - الكروت والميدلايات - خارجي مقاوم للماء

Easy Fix Wireless Door Lock Application Remote Access Control 125Khz EM Card RFID Access Control Wireless Keypad

Features:

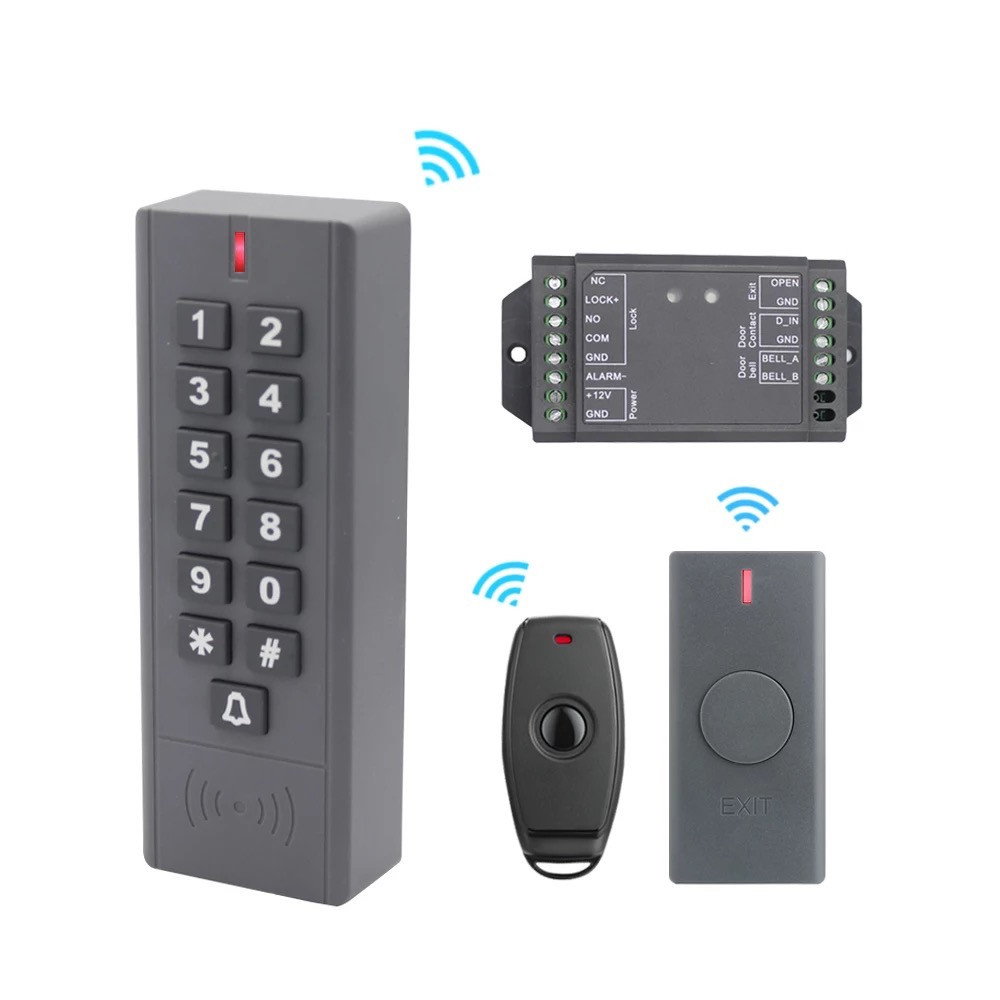

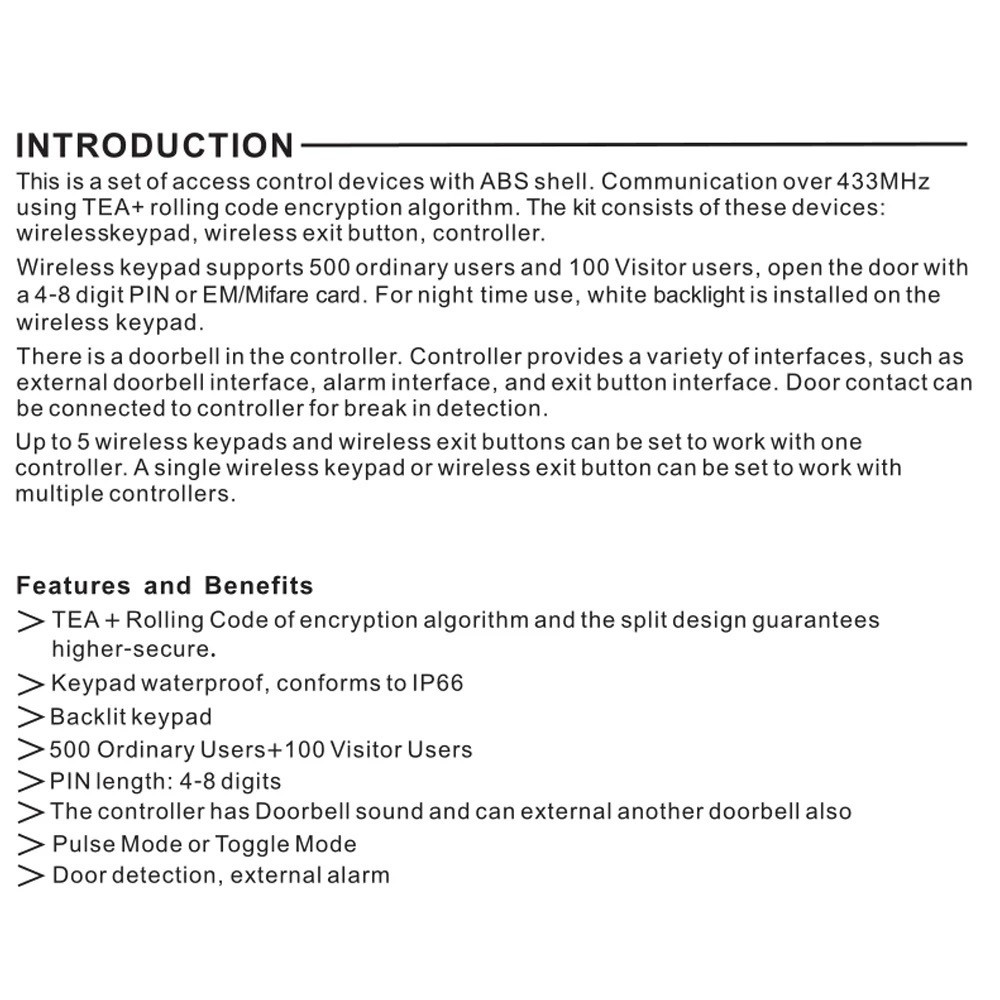

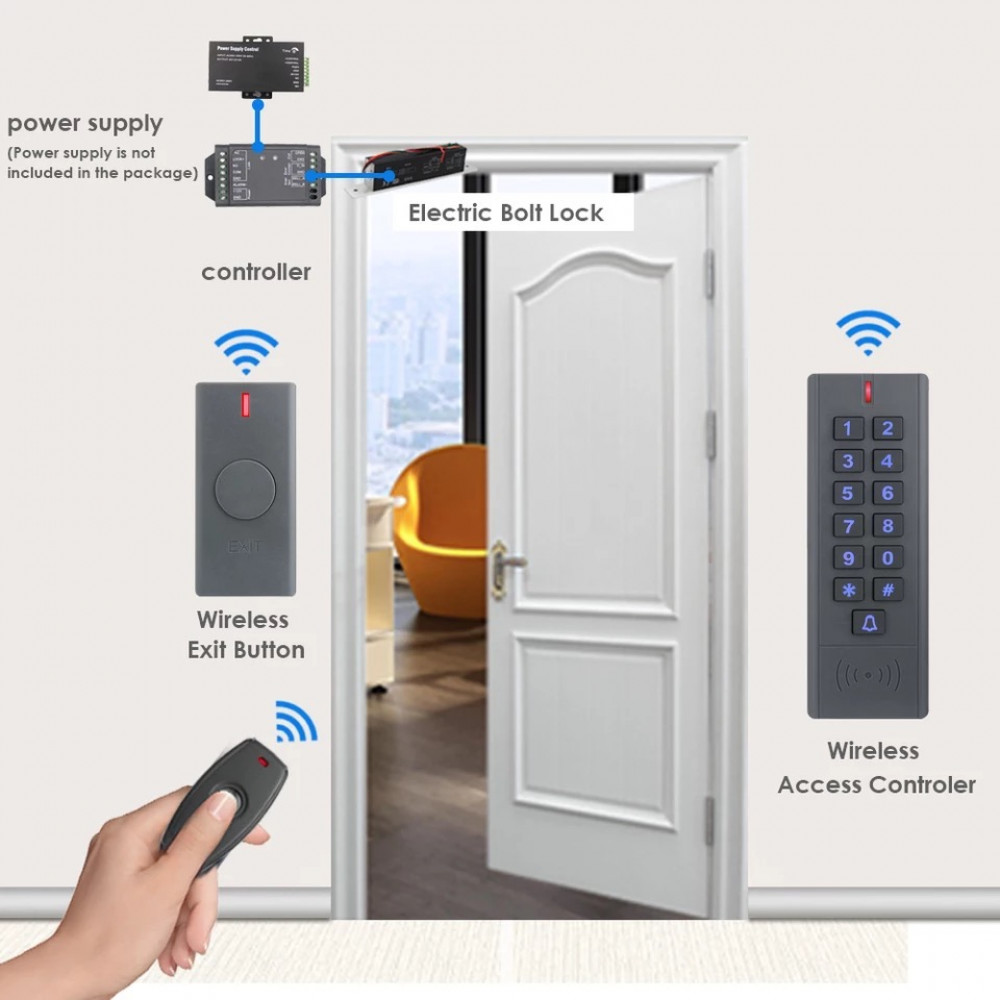

This is a set of access control devices with ABS shell.Communication over 433MHz using TEA+ rolling code encryption algorithm.The kit consists of these devices: wirelesskeypad, wireless exit button, controller.

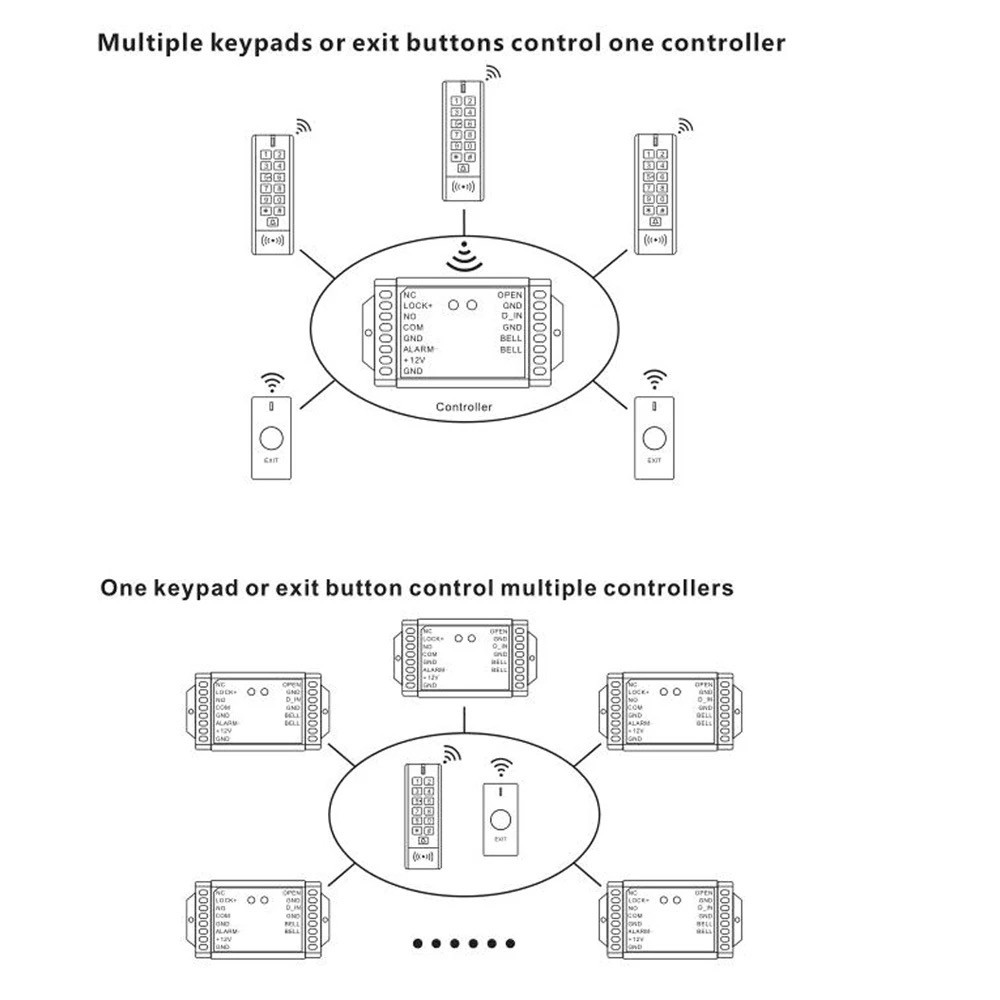

This product belongs to wireless access control, the host adopts 433MHz wireless communication mode, wireless keyboard machine and wireless exit button do not need wiring, and it is easy to install. One controller can be equipped with 5 wireless keyboard machines.

Specification:

Operating Voltage

Exit Button Dimensions

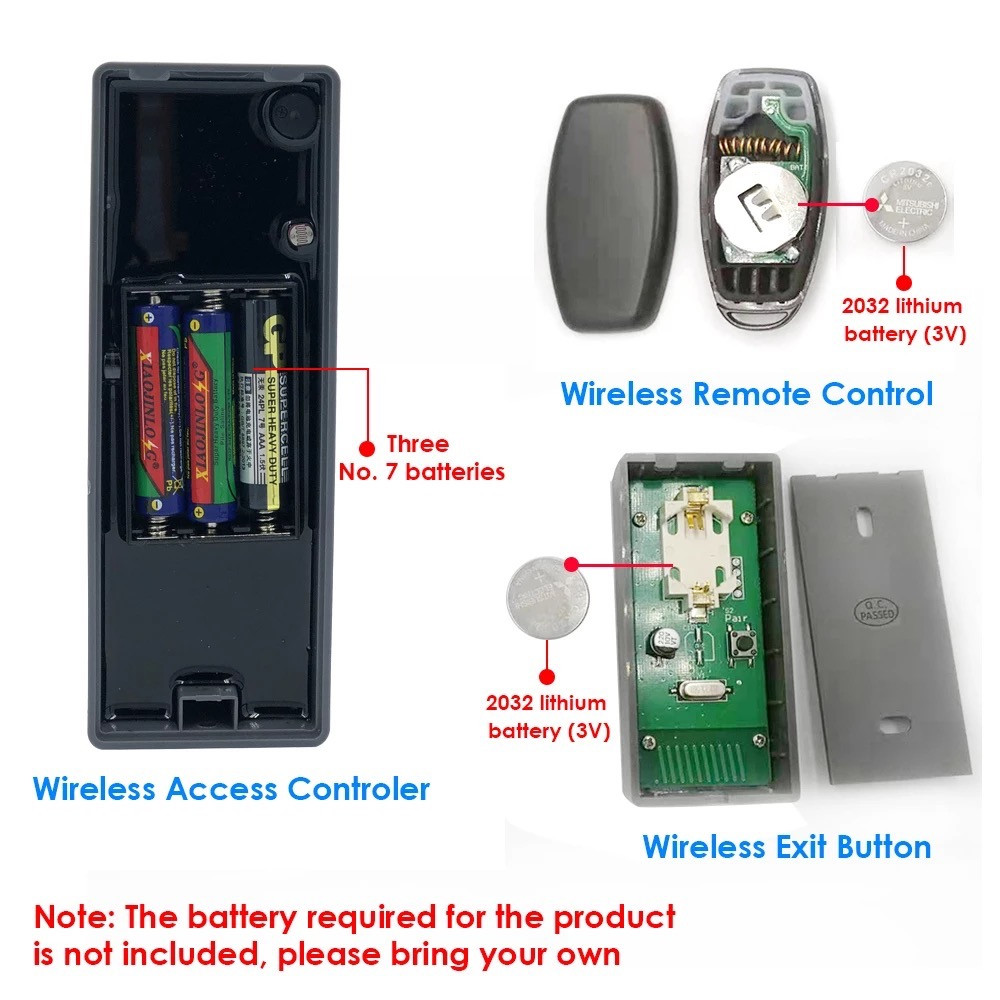

Keypad: 3 units of AAA batteries

Exit Button: 2032 Lithium battery（3V）

Controller: 12V DC ±20%

Idle Current

Keypad≤10uA

Exit Button≤10uA

Controller≤20mA

Working Current

Keypad≤100mA

Exit Button≤8mA

Controller≤50mA

User Capacity 500 Ordinary Users+100 Visitor Users

Card type EM

Card/Mifare Card

Card Frequency 125KHz/13.56MHz

Communication Frequency 433MHz

Communication Distance 30m Maximum

Relay Contact Load 2Amp Maximum

Operating Temperature -30C～+60C, (-22°F 140°F） ～

Operating Humidity Keypad: 10%-99%, Controller: 10%-88%

Exit Button: 10%-88%

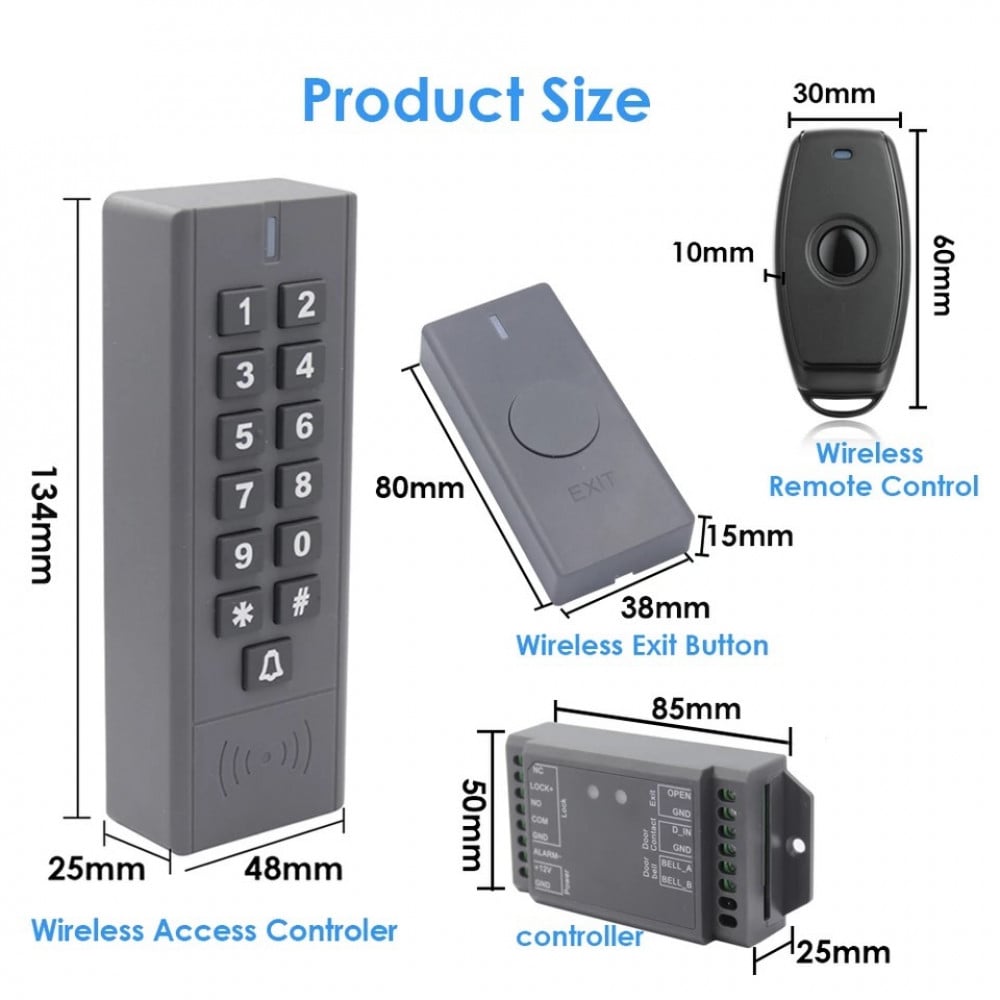

Keypad Dimensions L134 X W48 X H25(mm)

L80 X W38 X H15(mm)

Controller Dimensions L85 X W50 X H25(mm)

Unit Weight Keypad: 150g, Controller: 62g, Exit Button: 34g

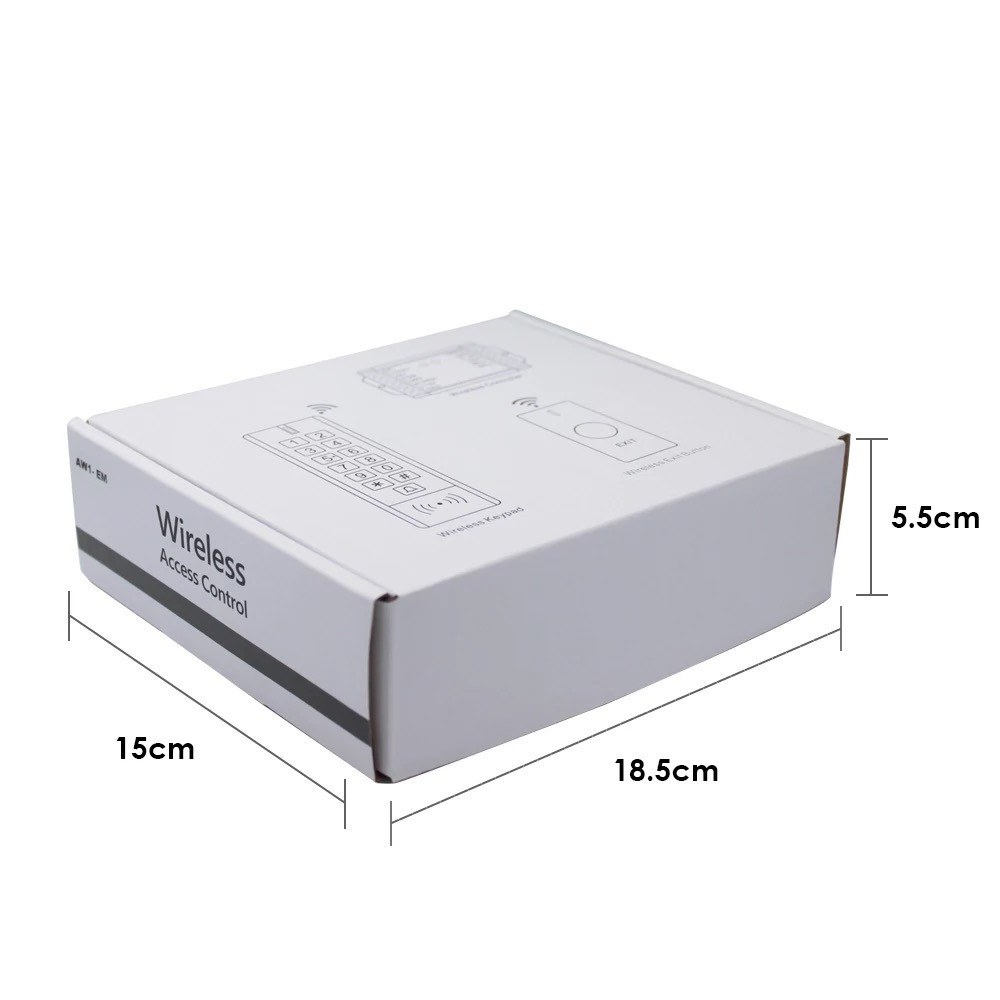

Shipping Weight 375g

Super encryption technology TEA+ rolling code encryption algorithm, super safe

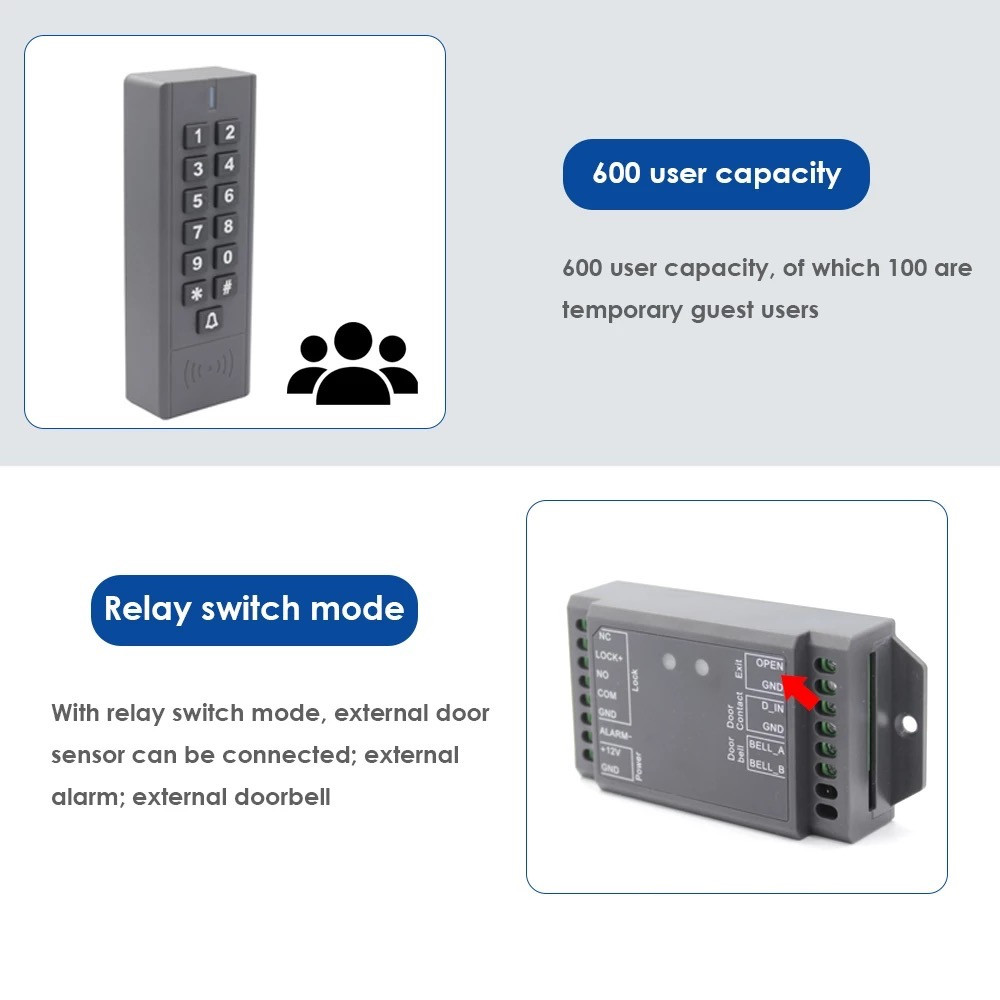

Capacity: 600, of which 100 are temporary guest users

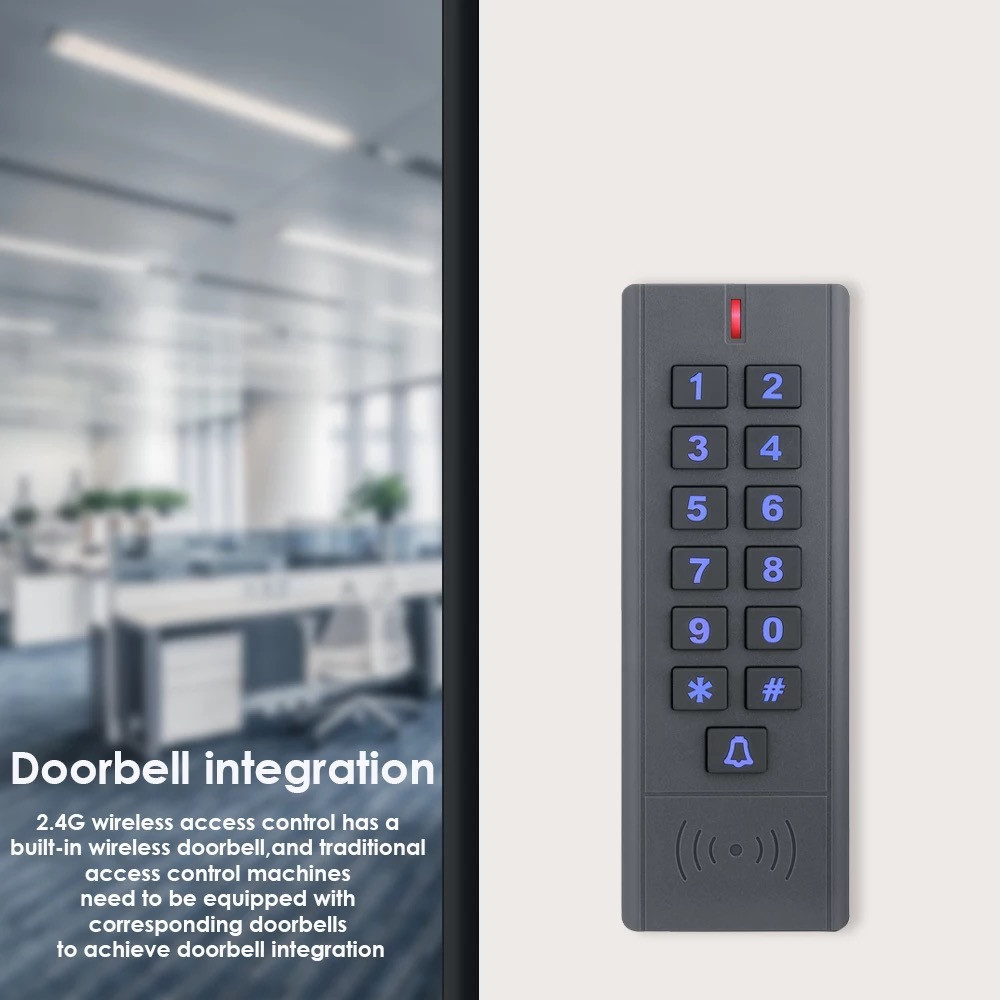

The indoor unit has a built-in doorbell or an external doorbell

With relay switch mode, external door sensor can be connected; external alarm; external doorbell
